2D Mercedes Drawing

2D Mercedes Drawing provides accurate CAD drawings of Mercedes-Benz vehicles used for automotive design reference, body modification, fleet planning, and technical documentation. These drawings are suitable for a wide range of Mercedes models, including passenger cars, vans, SUVs, and commercial vehicles, making them ideal for automotive engineers, vehicle body builders, designers, and visualization professionals.

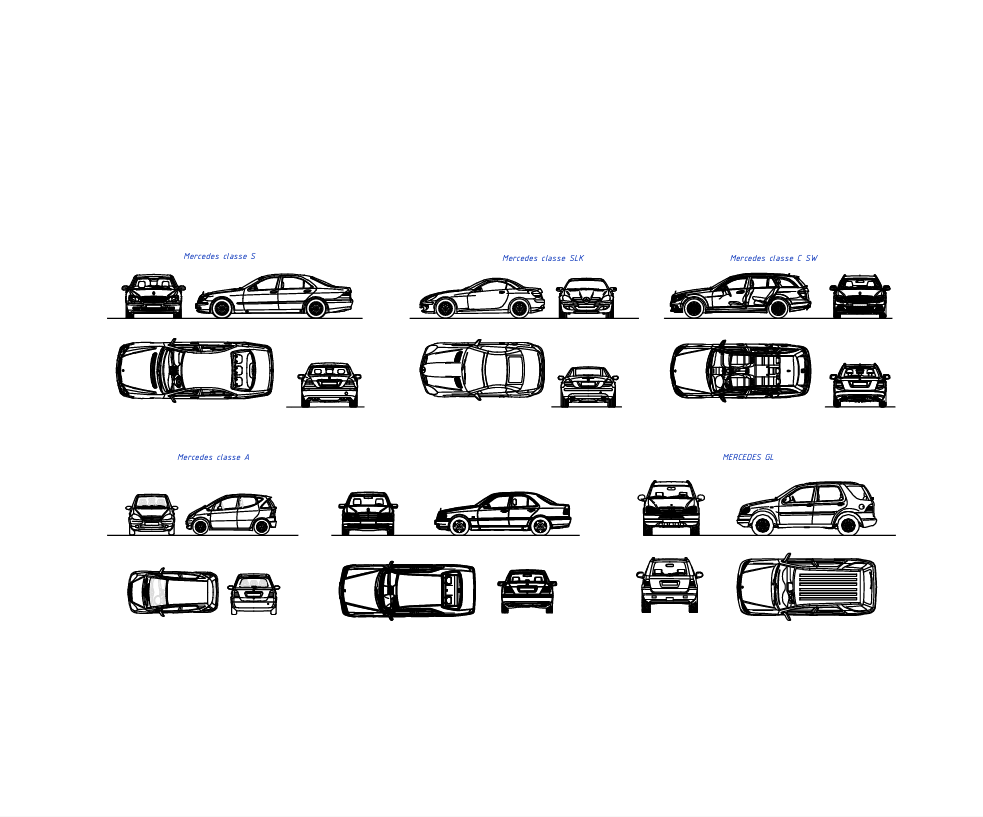

The 2D drawings typically include top view, side elevation, front and rear views with precise dimensional annotations. Key vehicle elements such as body contours, doors, windows, wheels, wheelbase, and overall vehicle proportions are represented to scale, supporting professional automotive and conversion workflows.

Key Features

• High-accuracy 2D CAD drawings of Mercedes vehicles

• Real-scale dimensions suitable for design and modification

• Includes plan, elevation, and side views

• Clean, editable layer organization

• Compatible with AutoCAD and similar CAD software

Applications

• Automotive design and layout studies

• Vehicle body building and customization

• Van and special-vehicle conversions

• Fleet planning and logistics visualization

• Technical documentation and presentations

File Formats

• DWG

• DXF

• PDF (for reference and printing)

Using 2D Mercedes Drawing files improves dimensional accuracy, accelerates design workflows, and ensures clear technical communication across automotive projects.

Search Shop Section for more free items to download.
