3D CAD Sheet Metal Bench

3D CAD Sheet Metal Bench provides a detailed and accurate three-dimensional model of a bench manufactured from sheet metal, designed for industrial, commercial, and public-use applications. The model is developed for engineering design, fabrication planning, product visualization, and technical documentation.

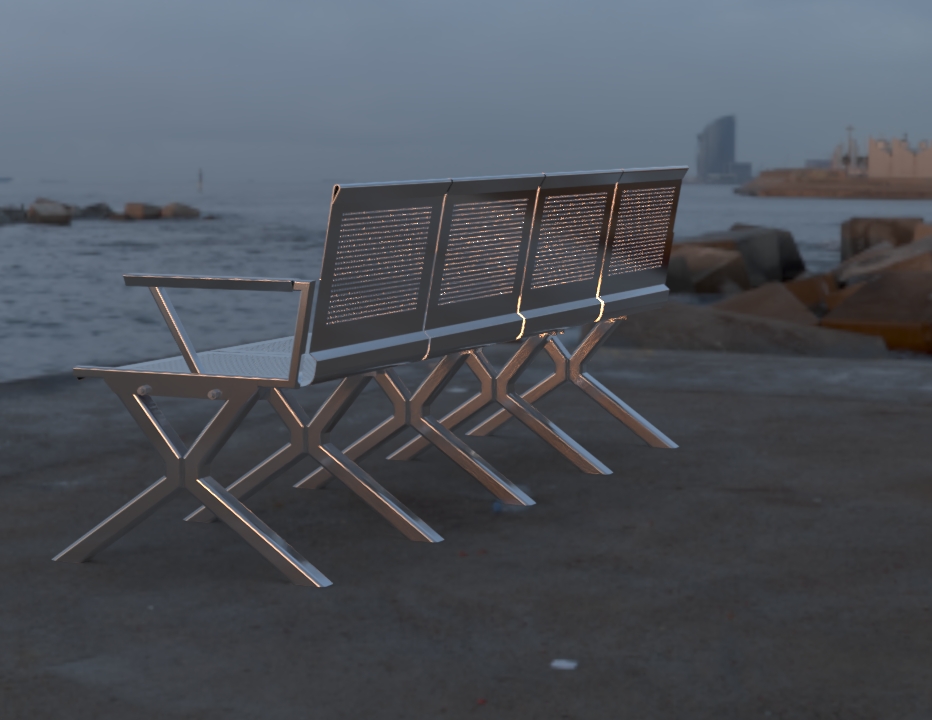

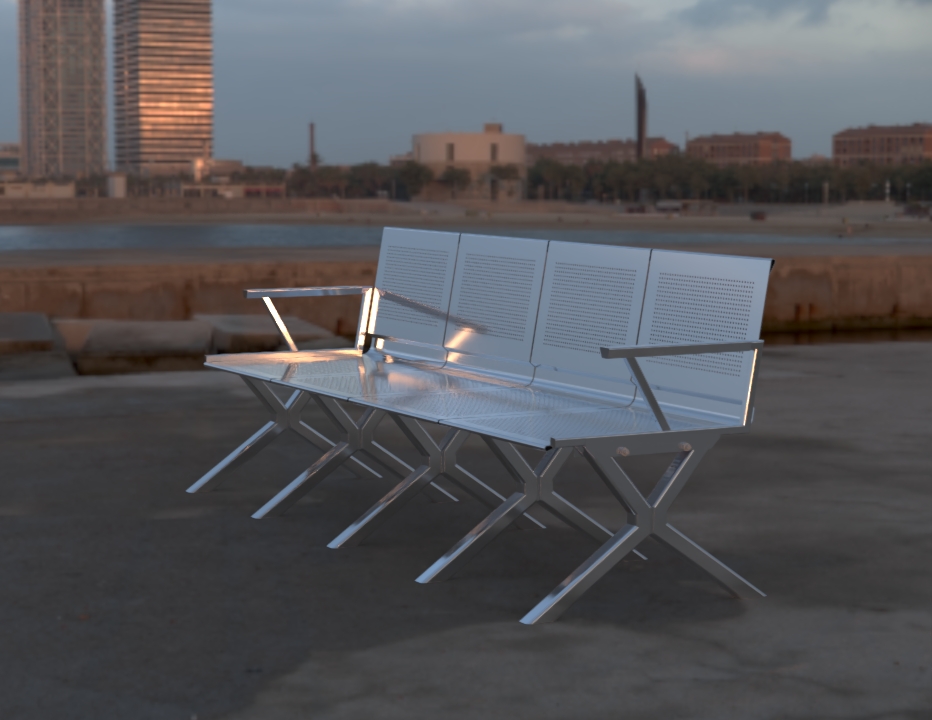

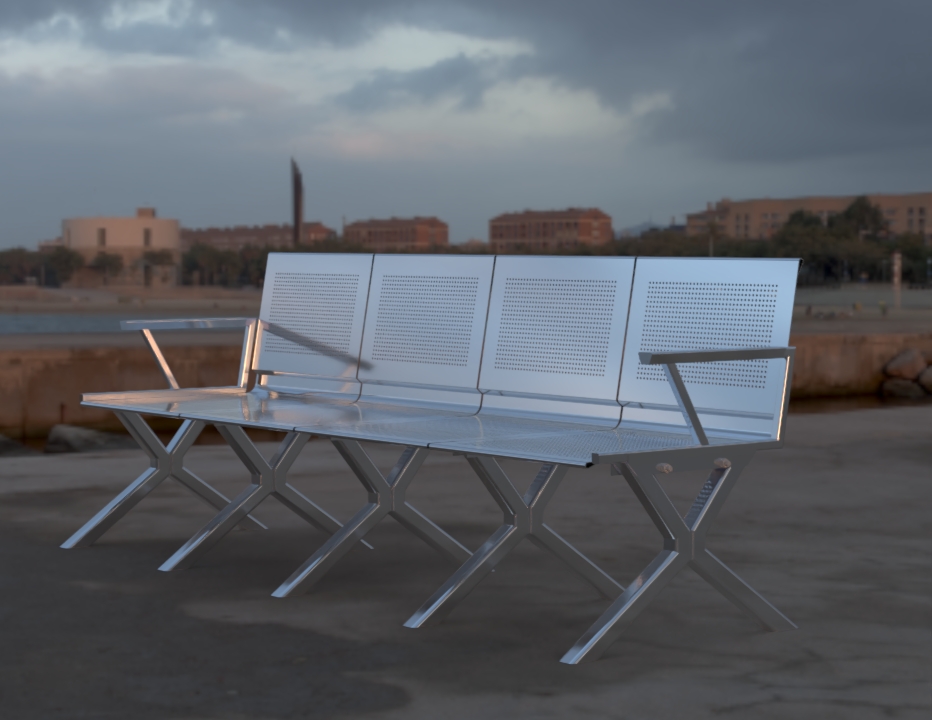

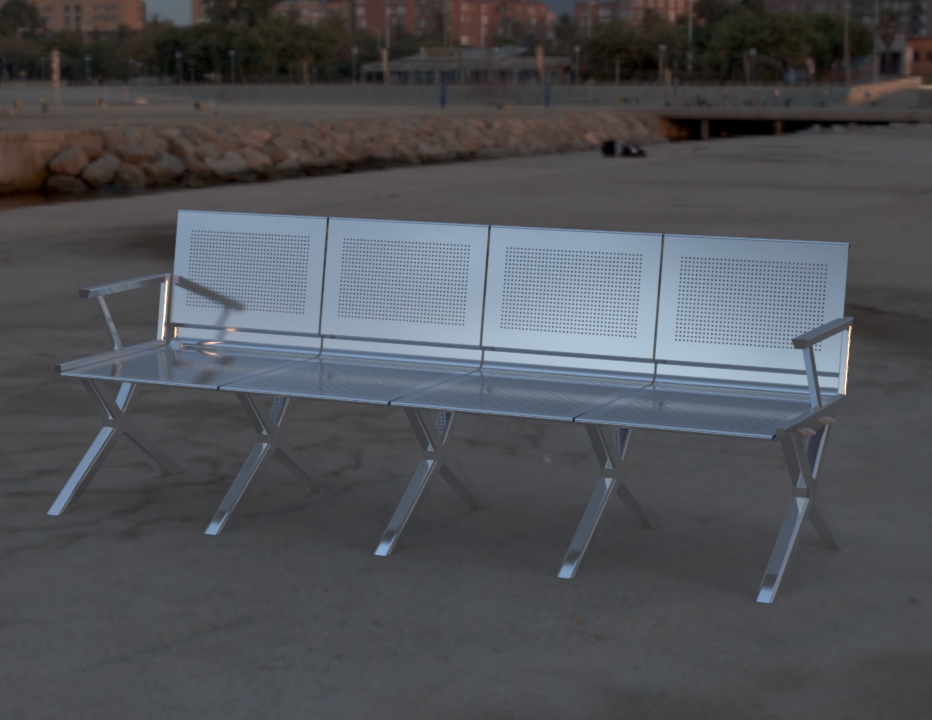

The 3D model represents the bench structure with realistic proportions, including bent sheet metal panels, seating surface, legs or supports, reinforcement elements, and mounting points. Built with clean topology and precise geometry, it supports manufacturing workflows such as CNC cutting, bending, and assembly planning.

Key Features

• High-accuracy model of sheet metal bench

• Real-scale geometry suitable for fabrication and design

• Detailed folded and bent sheet metal components

• Clean, editable topology for customization

• Compatible with major CAD and 3D software platforms

Applications

• Sheet metal product design and development

• Fabrication and manufacturing planning

• Public furniture and industrial equipment design

• 3D visualization and rendering

• Technical documentation and presentations

File Formats

• STEP

• IGES

• STL

• SolidWorks / other CAD formats (on request)

Using Sheet Metal Bench files improves fabrication accuracy, supports efficient manufacturing planning, and ensures clear technical communication across industrial and architectural projects.
