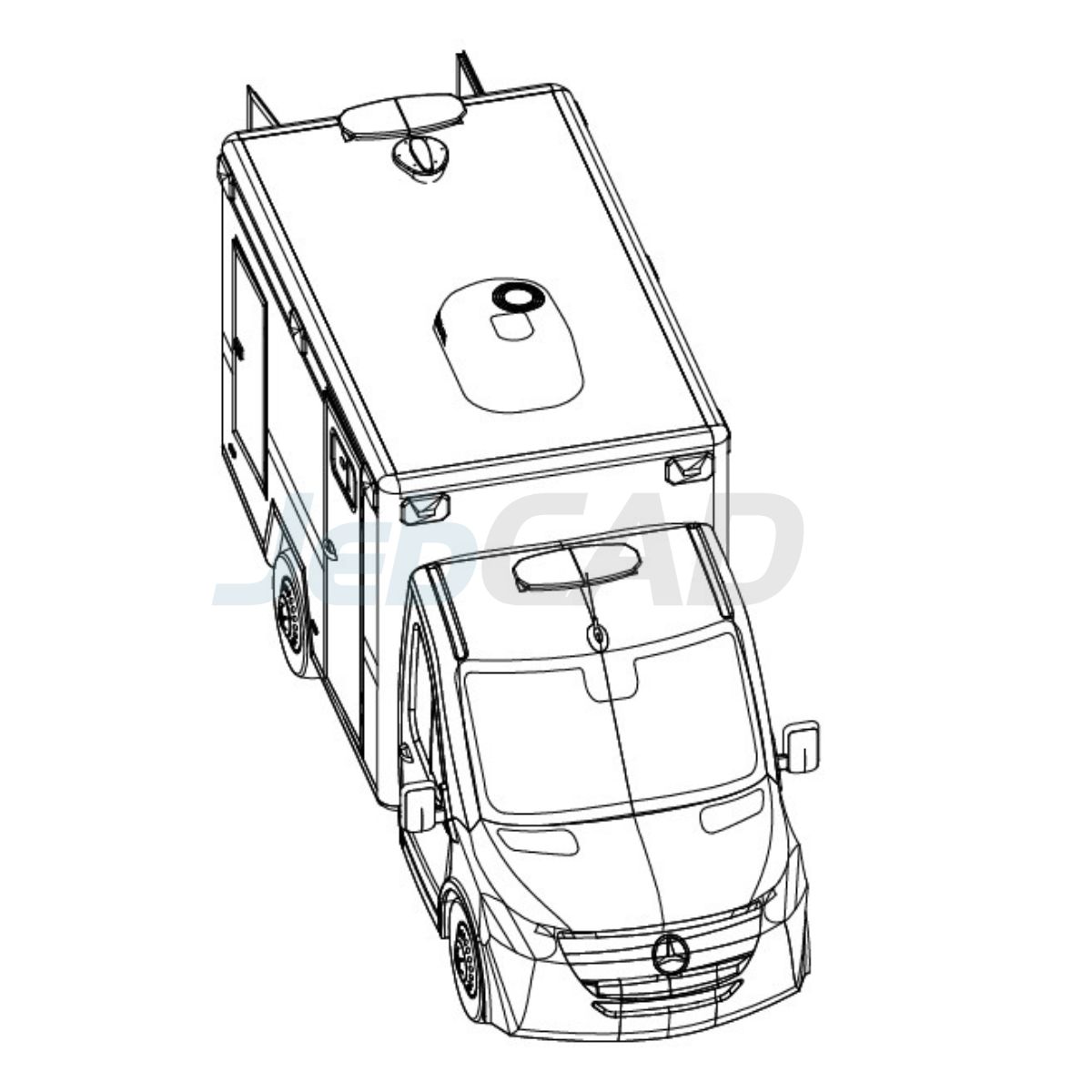

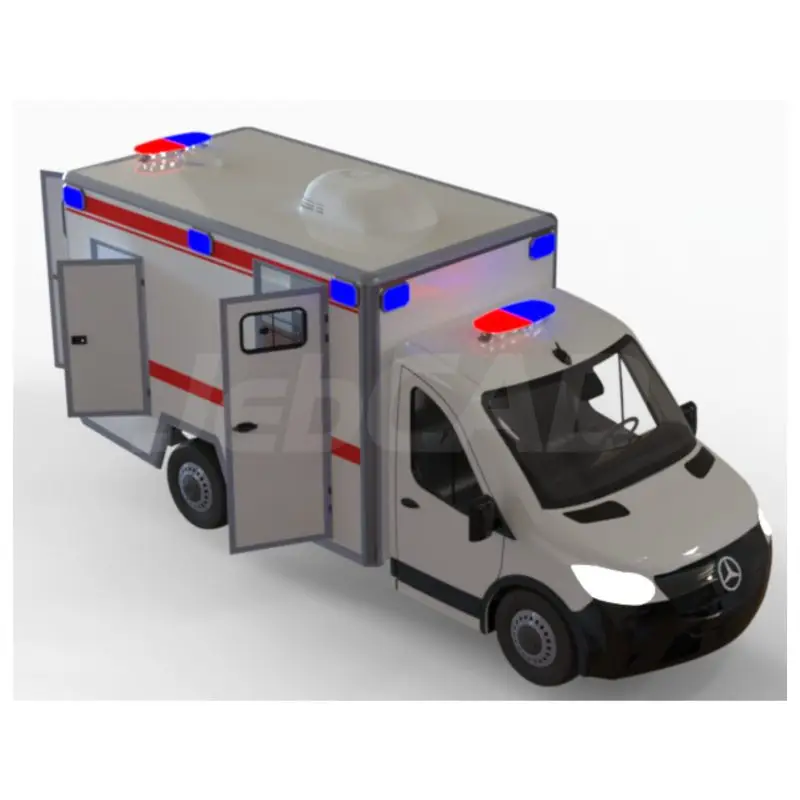

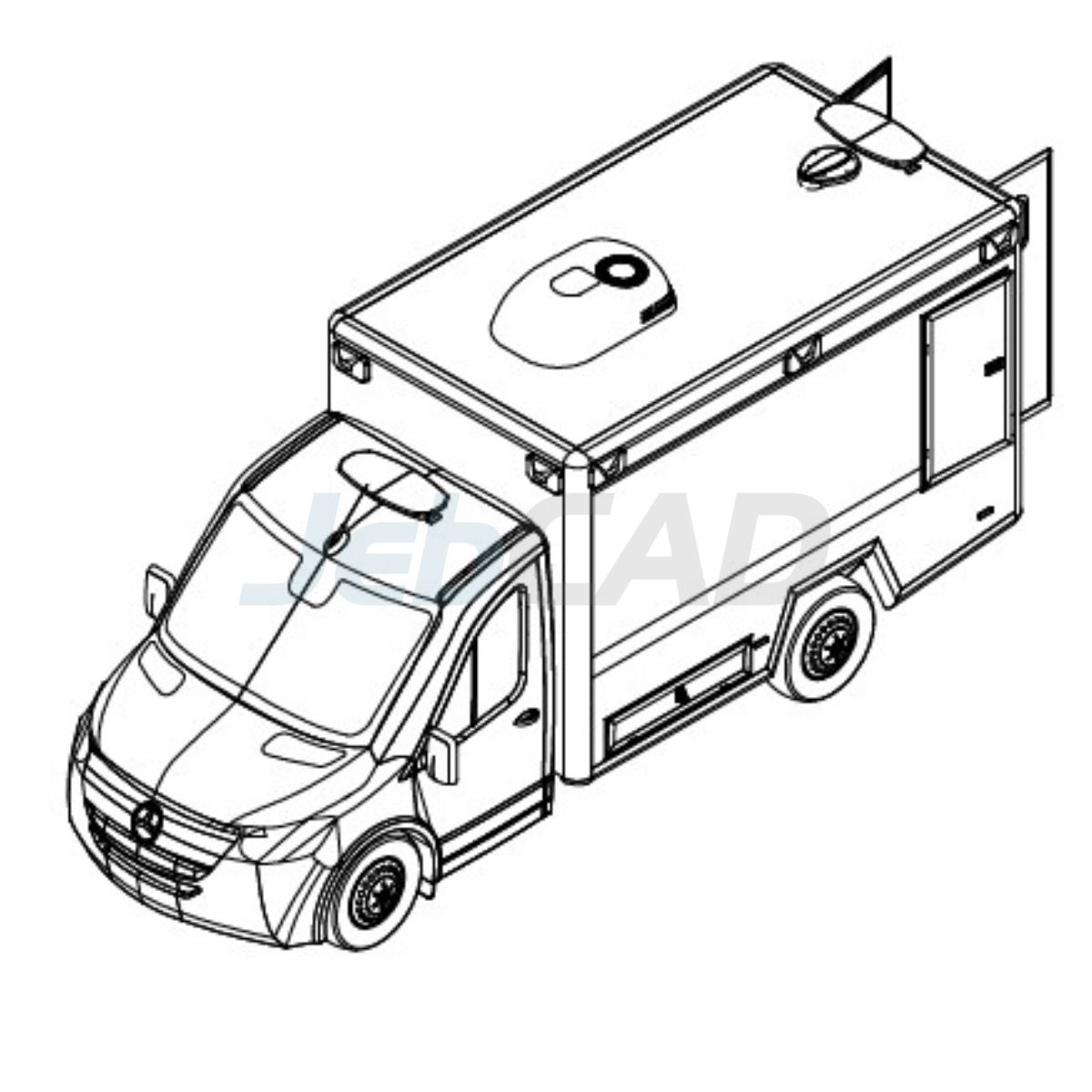

Box Type Ambulance Mercedes – 2D Design

Overview Custom Mercedes Ambulance Drawing

This Custom Mercedes Ambulance Drawing package provides detailed 2D and 3D engineering designs of a Mercedes Box Type Ambulance, built on a Mercedes-Benz chassis. Perfect for engineers, ambulance manufacturers, and design professionals, it covers all functional compartments, seating arrangements, and medical equipment zones.

Key Features Custom Mercedes Ambulance Drawing

• Accurate top, side, and rear views of the ambulance box layout
• Patient bed placement and oxygen cylinder mounts
• Electrical, lighting, and ventilation system routes
• Medical cabinets, access doors, and step/ramp details
• Designed according to ISO 17840 and local ambulance regulations
• Available in AutoCAD DWG/DXF, SolidWorks, PDF, STEP, and IGES formats

Chassis Details

• Make/Model: Mercedes-Benz (Sprinter / Vito)
• Type: Box Body Conversion
• Wheelbase & GVW: [Insert mm/kg]
• Drive Type: [4×2 / 4×4]

Compliance & Standards

• ISO 17840 Ambulance Design Standards
• Medical equipment clearance and occupant space safety
• Access and egress dimensions per regulations

Additional Notes

• Dimensions are in millimeters (mm) unless stated otherwise
• Compatible with specified chassis variants
• Final drawing approval recommended before fabrication

Why Choose This Product?

• High-precision CAD design for professional use
• 2D & 3D files included for flexible workflow
• Ideal for ambulance manufacturers, designers, and engineers
• Easy to integrate into AutoCAD or SolidWorks projects
