Box Type Ambulance Mercedes – 3D Design

Box Type Ambulance Mercedes – 3D Design

1. Overview

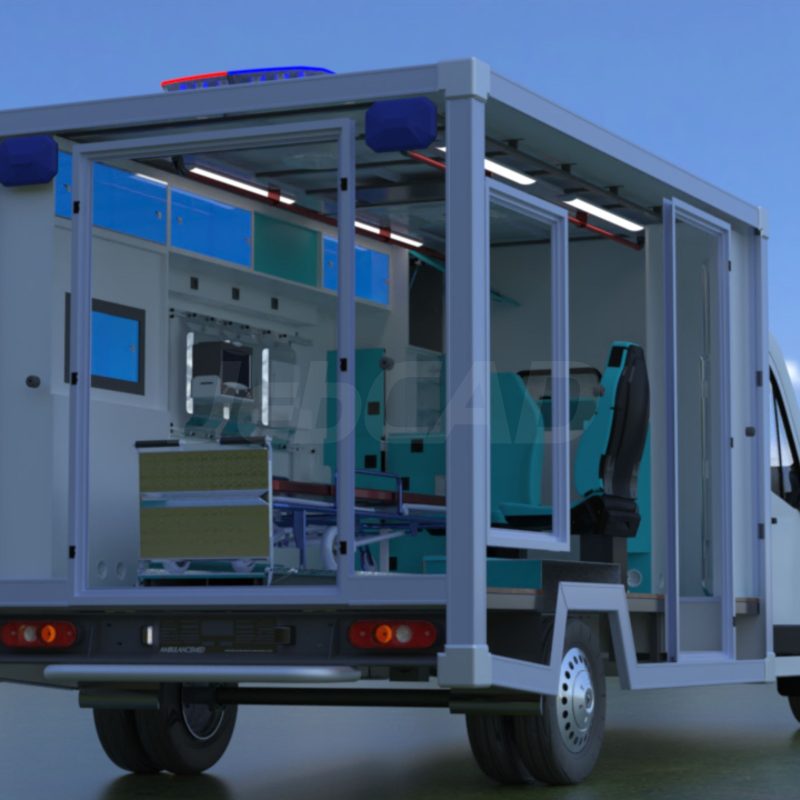

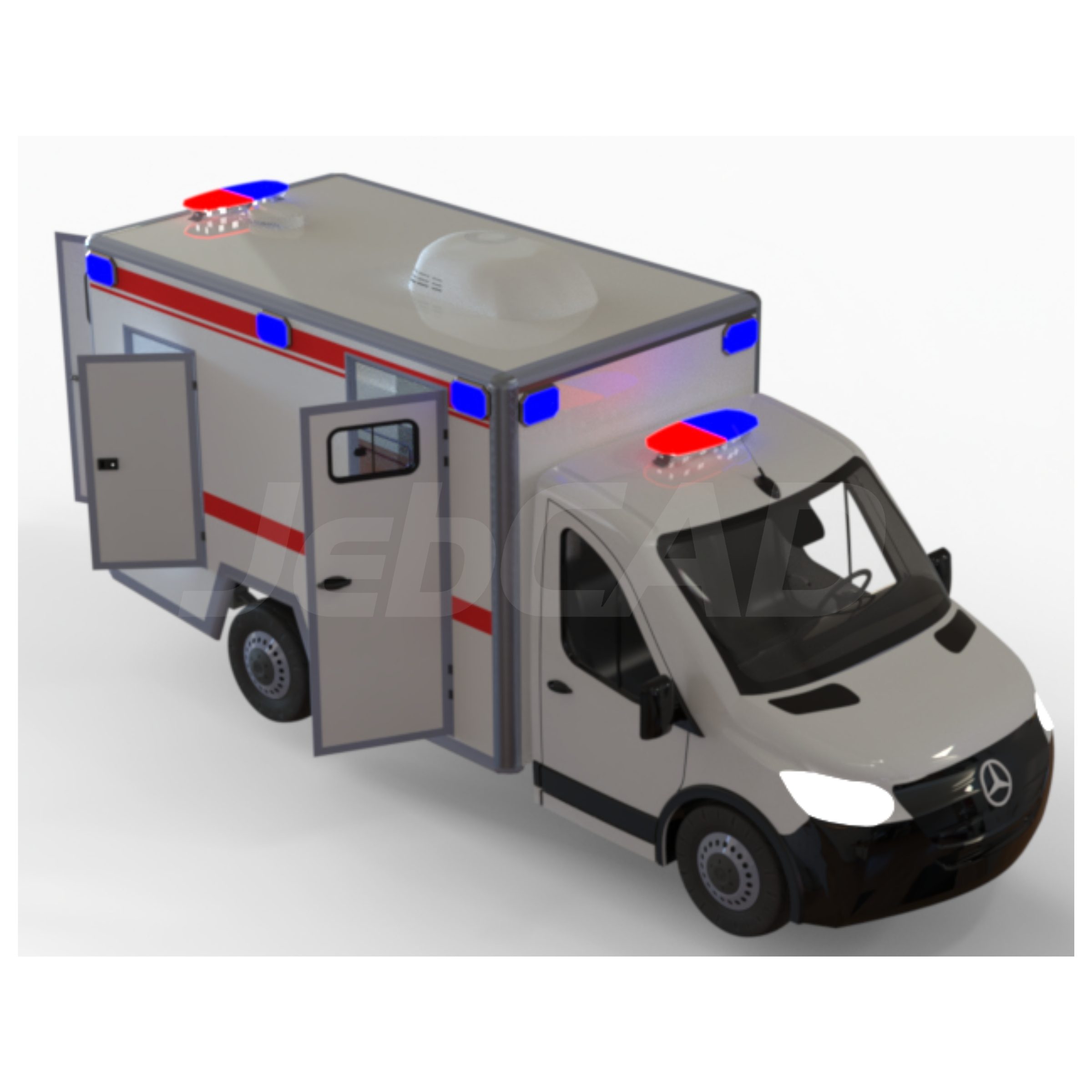

This document summarizes the 3D engineering design of a Box-Type Ambulance based on a Mercedes-Benz chassis. The model includes structural geometry, interior medical layout, equipment fixtures, and body integration, intended for manufacturing, visualization, and technical validation.

2. Chassis Details

• Make/Model: Mercedes-Benz (e.g., Sprinter / Vito)
• Type: Box Body Conversion
• Wheelbase: [Insert mm]
• GVW: [Insert kg]
• Drive Type: [e.g., 4×2 / 4×4]

3. Model Content Summary

• View Types Included:
  • Isometric
  • Exploded View
  • Sectional Views
• Key Elements Modeled:
  • Full box structure with mounting points
  • Medical equipment integration
  • Interior lighting, HVAC, and paneling
  • Patient bed and seating systems
  • Rear and side access doors with steps/ramp
  • Storage and oxygen cylinder brackets
  • Cable routing and electrical provisions

4. Drawing & Model Formats

• 3D CAD Software:
  • SolidWorks (.sldprt, .sldasm)
  • AutoCAD 3D (.dwg)
  • STEP (.stp)
  • IGES (.igs)
• Exported Views:
  • Technical PDF Sheets (A1/A2 size)
  • Rendered Images (.jpg/.png)

5. Standards & Compliance

• Design Standards:
  • ISO 17840
  • EN 1789 (Ambulance Design)
  • Local EMS Body Regulations
• Compliance Areas:
  • Interior spatial ergonomics
  • Structural safety and restraint systems
  • Medical equipment clearance and mounting

6. Notes

• All units are in mm unless otherwise noted.
• Model accuracy subject to chassis configuration.
• Design to be validated before production.
