Examination Clinic – Designed for Manufacturing

This examination clinic unit is developed with a manufacturing-centered approach, emphasizing modularity, standardized components, and ease of fabrication, assembly, and maintenance. Structural, mechanical, and clinical elements are organized to support repeatable production and long-term operational reliability.

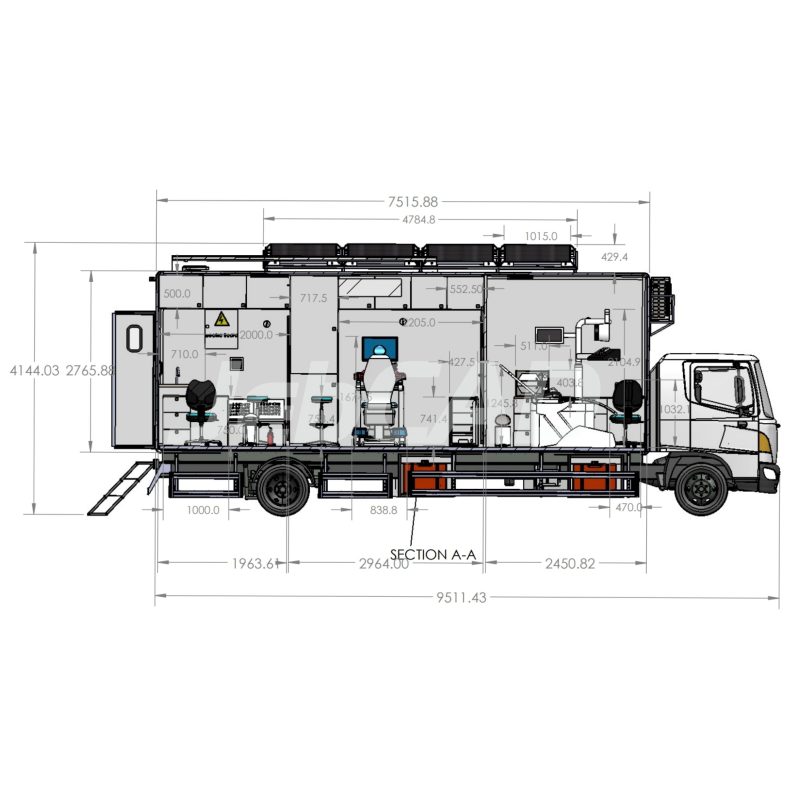

Dimensions & Structure of Examination Mobile Clinic

• Overall Dimensions:
  Length: 7.5 m
  Width: 2.5 m
  Height: 3.2 m
  Weight: ~5,000 kg

• Chassis: Aluminum alloy frame engineered for strength-to-weight efficiency and compatibility with standard fabrication processes.

• Wall & Roof Panels: Insulated composite sandwich panels selected for thermal stability, rapid installation, and consistent manufacturing tolerances.

• Flooring: Anti-slip, chemical-resistant vinyl surface designed for clinical use and straightforward replacement during maintenance cycles.

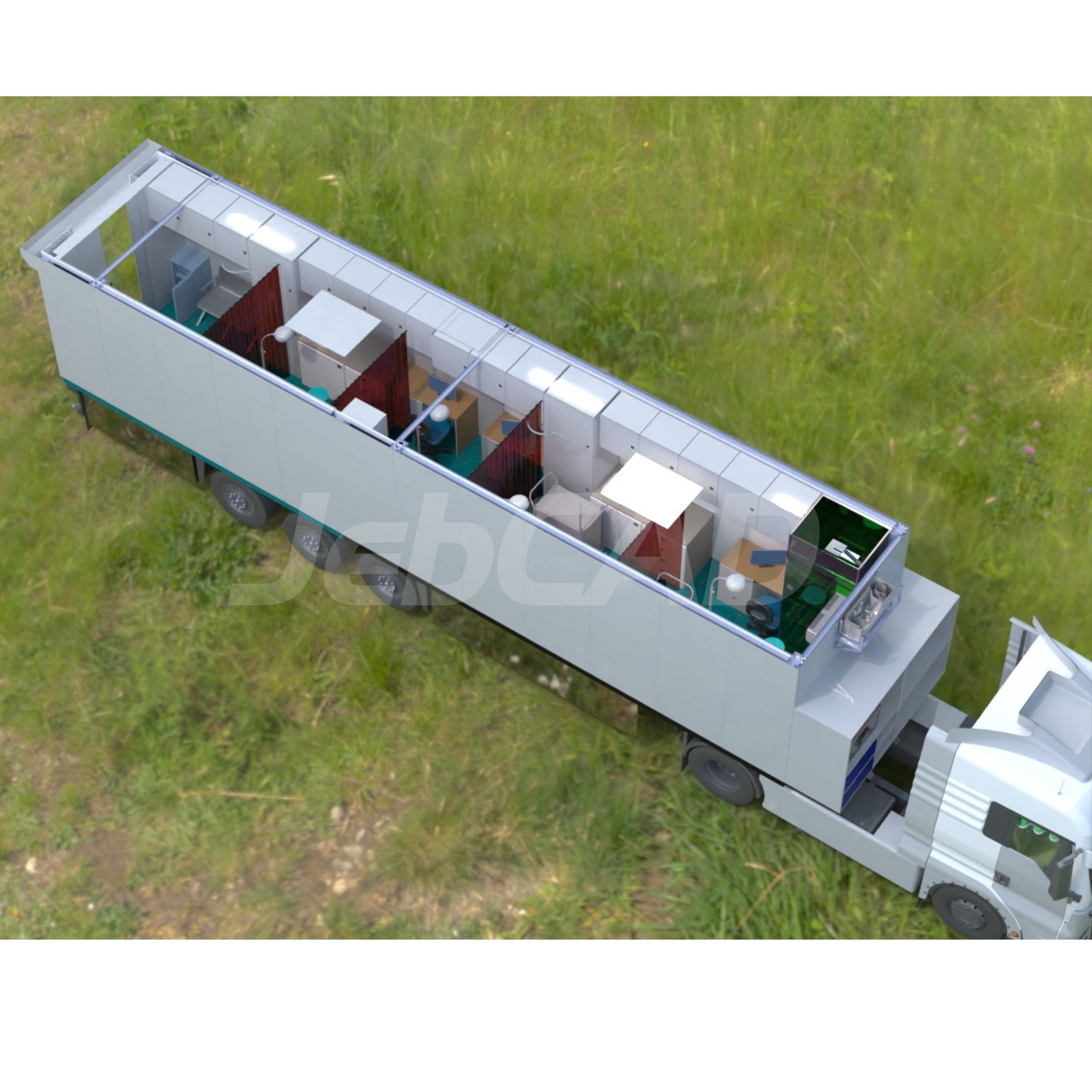

Interior Layout

• Modular Examination Room: Configured for efficient workflow and produced using standardized paneling and mounting interfaces. Adjustable examination table supports routine servicing and replacement.

• Diagnostic Stations: Predefined mounting points and cable routing for ultrasound, ECG, blood pressure monitoring, and other clinical devices.

• Storage: Built-in secure compartments manufactured using durable materials and repeatable joinery methods.

• Sanitation Unit: Integrated handwashing station and biohazard disposal area with controlled plumbing routes for simplified installation and service access.

Systems & Utilities

• HVAC: Heating and cooling system designed for uniform air distribution and accessible maintenance zones.

• Power System:

  • Lithium-ion battery bank with standardized connections

  • Roof-mounted solar panels for autonomous operation

  • Diesel generator backup integrated through a centralized power distribution interface

• Lighting: LED task and ambient lighting configured for low energy consumption and long-cycle operation.

• Connectivity: Wi-Fi and 4G/5G capability for telemedicine applications, installed through protected cable channels.

• Accessibility: Wheelchair ramp with reinforced handrails engineered for structural durability and compliance with accessibility standards.

Compliance & Safety of Examination Mobile Clinic

• Designed to meet ISO 13485 requirements and relevant medical vehicle regulations.

• Equipped with a fire suppression system.

• Ergonomic layout supports operator efficiency and reduces physical strain.

CAD & Drawing Platforms

• 3D Modeling: SolidWorks, Autodesk Inventor

• Architectural Layout: AutoCAD

• Rendering & Visualization: Autodesk 3ds Max, Blender

• Simulation & Analysis: ANSYS for structural and thermal evaluations

• Supported File Formats: STEP, IGES, DWG, STL to ensure compatibility with fabrication and prototyping workflows.
