Hospital Family Package for Revit Part-1

33 Hospital Revit Families – Package Part 1

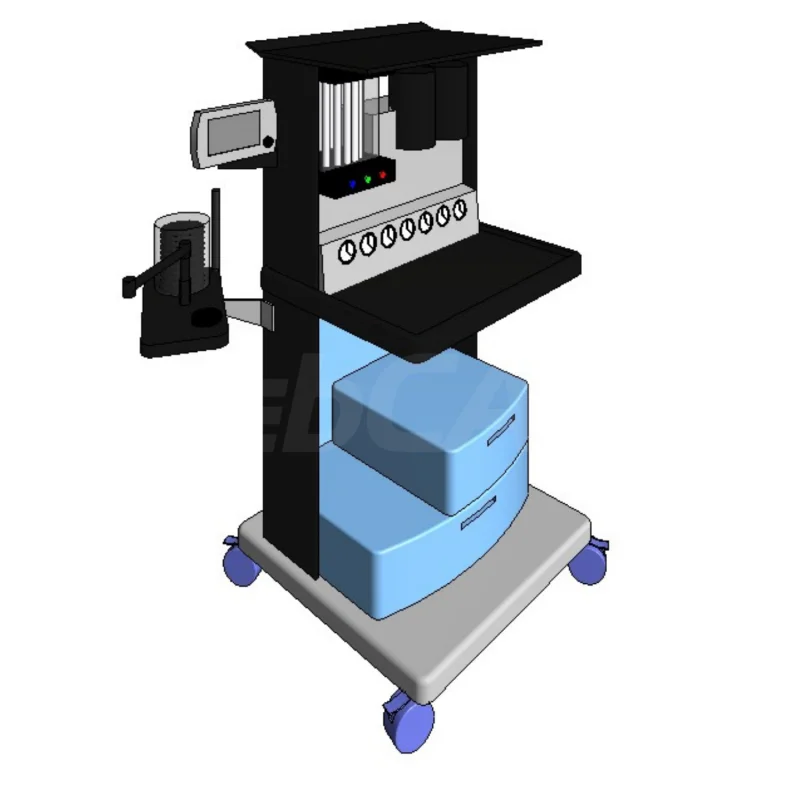

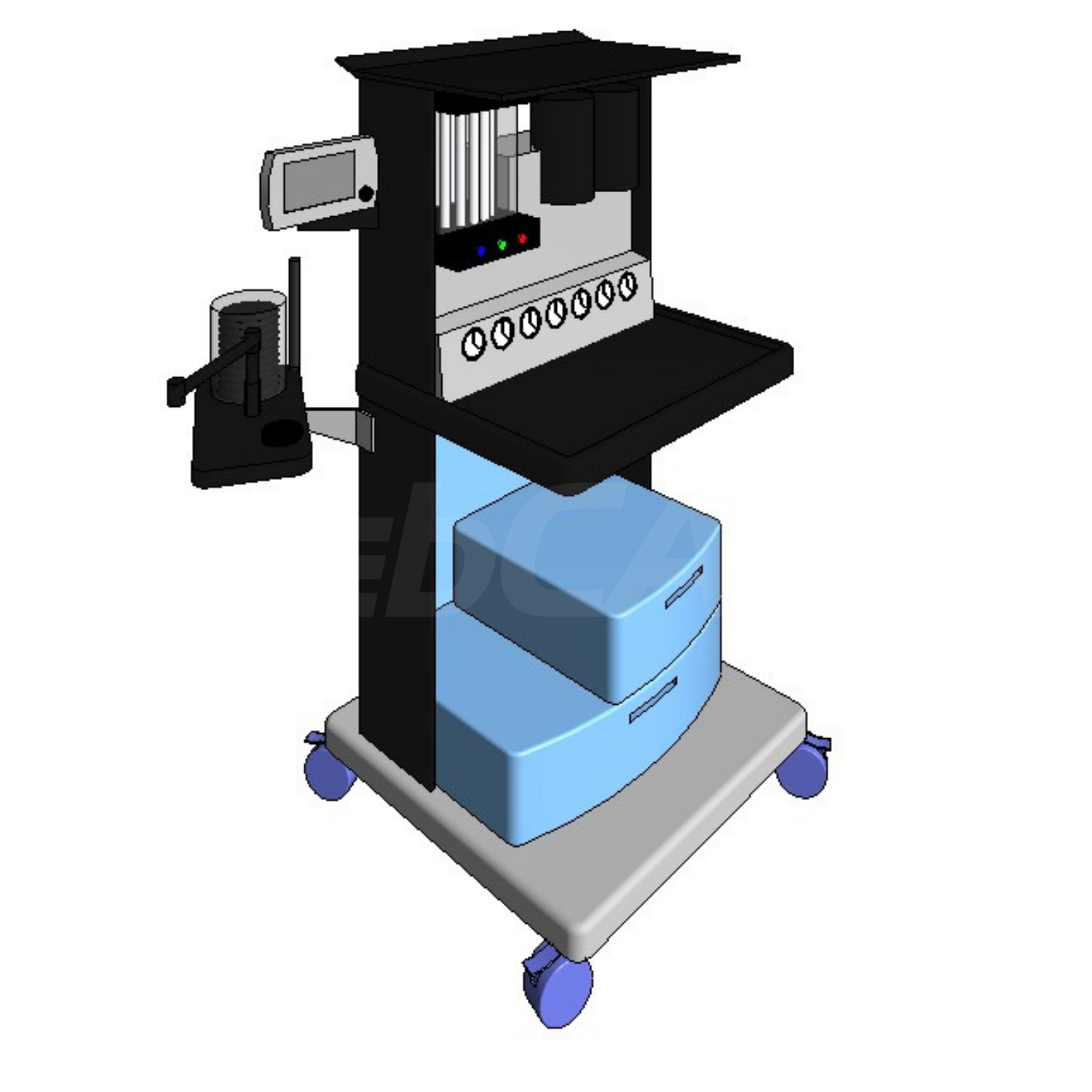

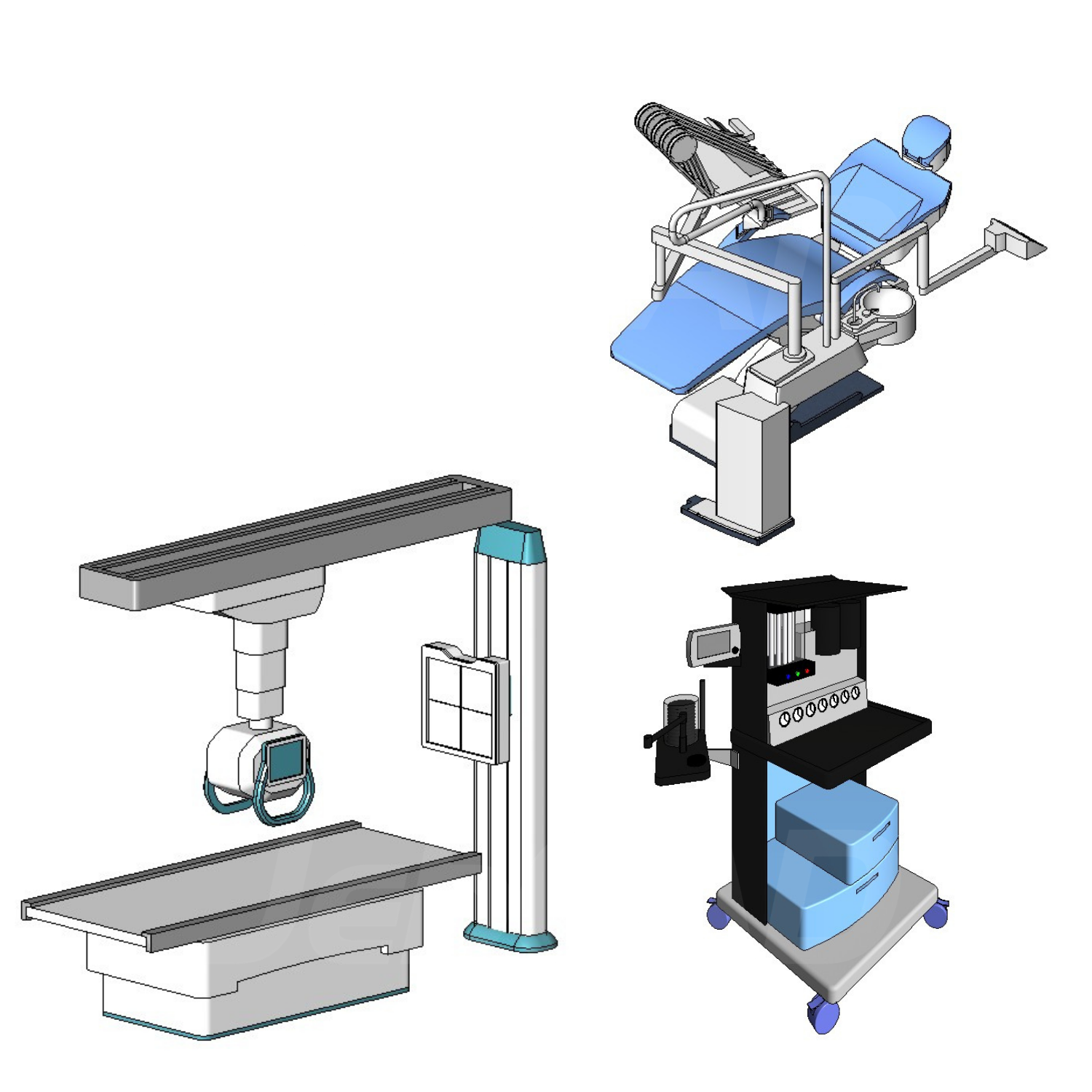

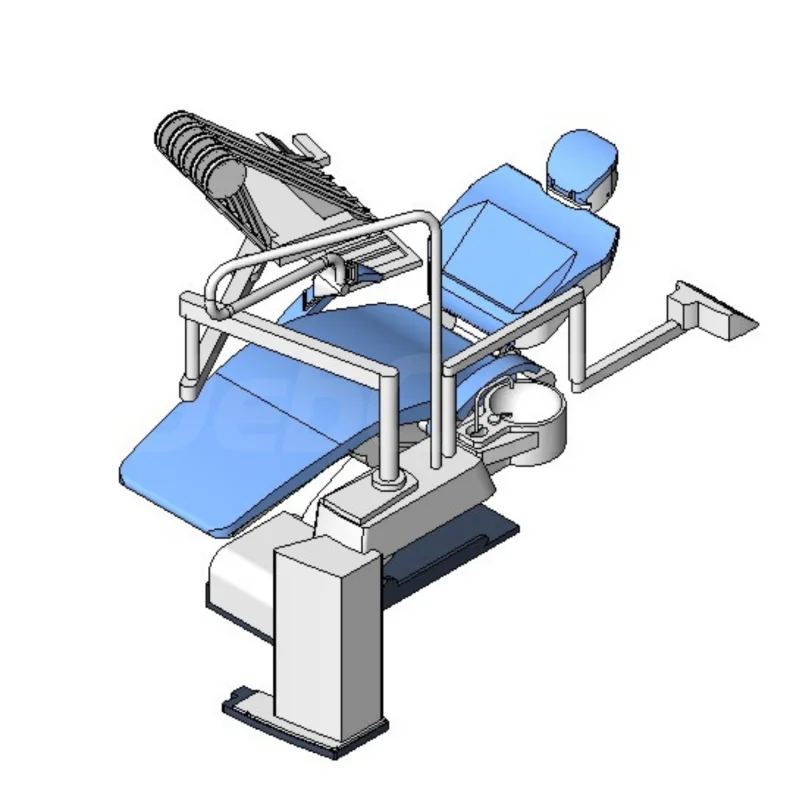

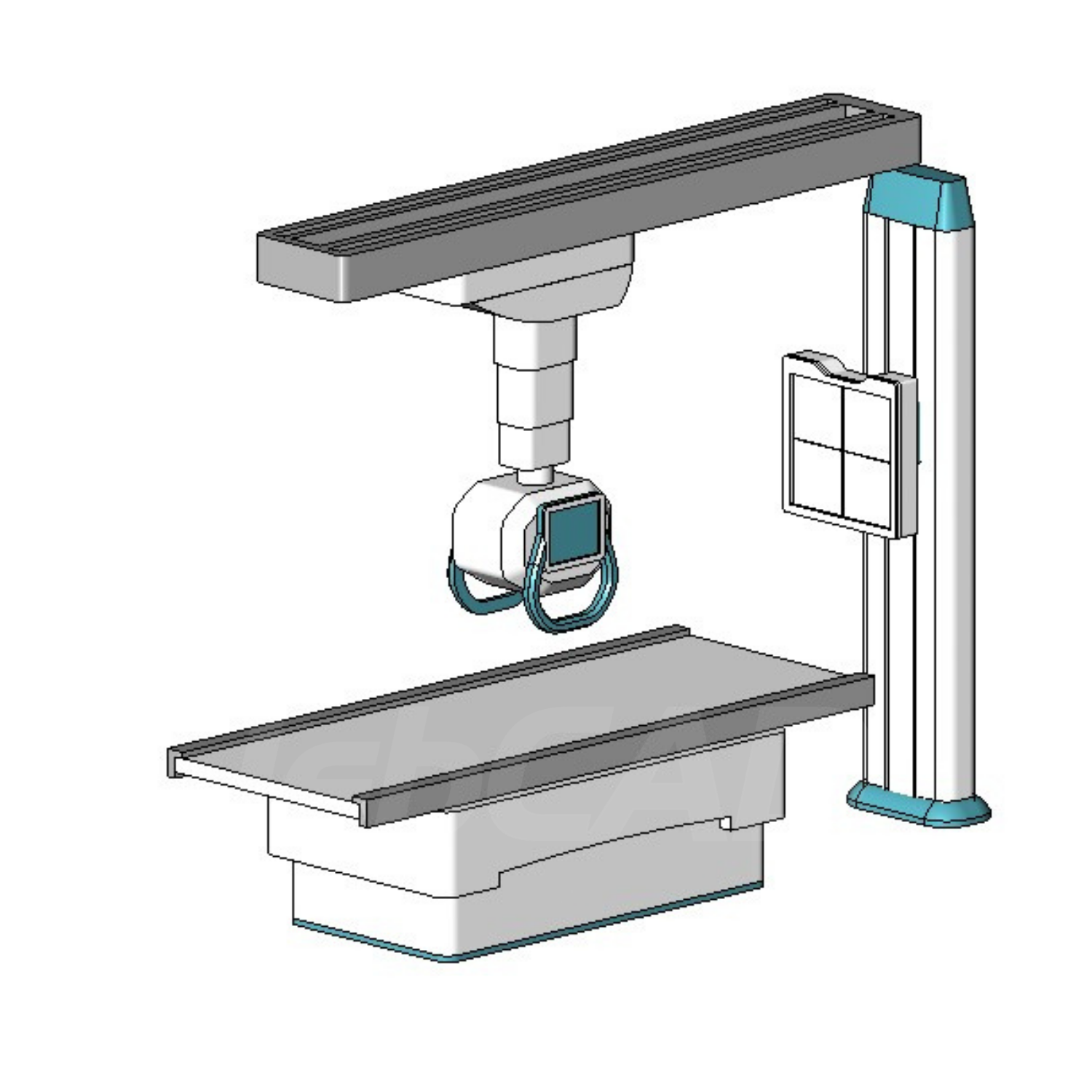

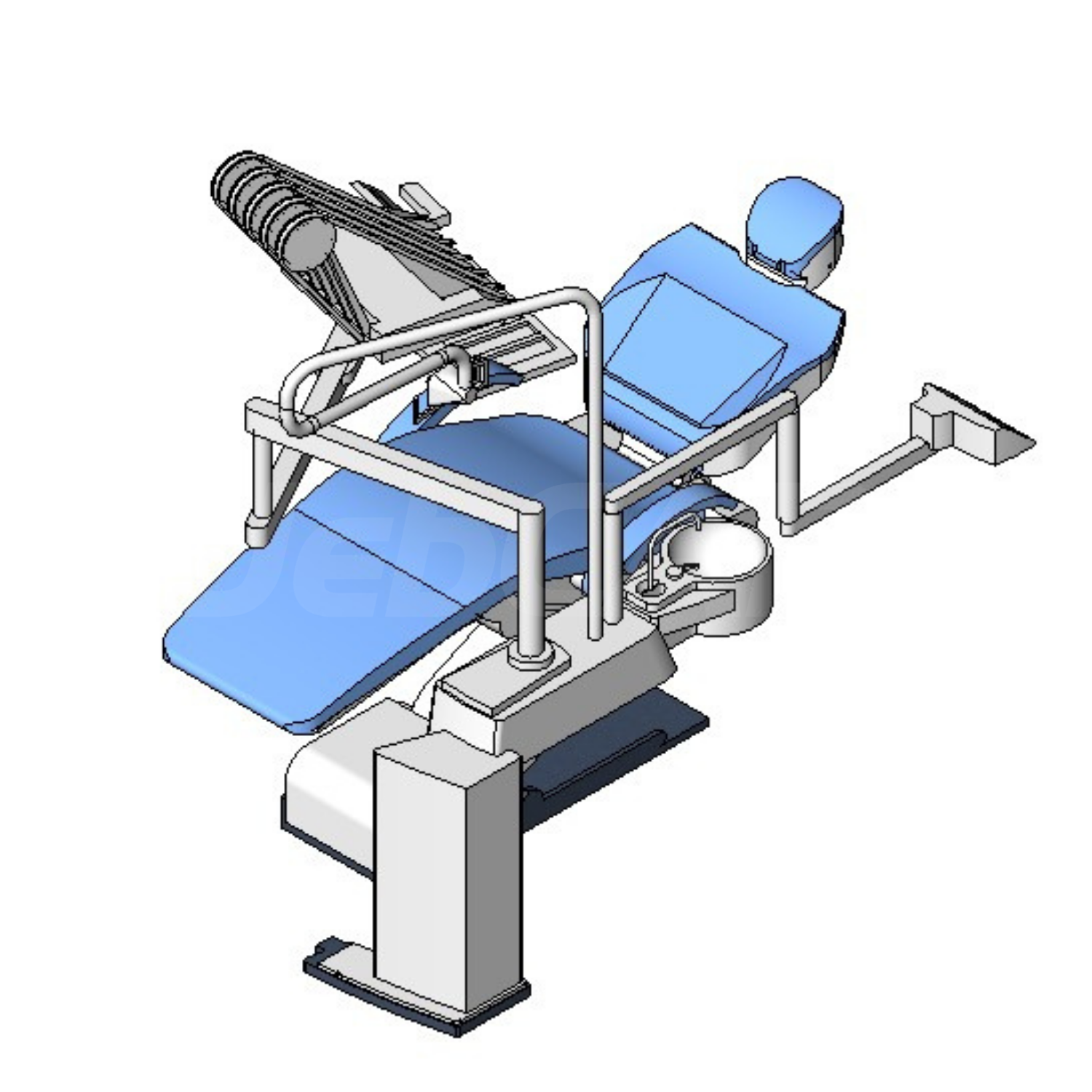

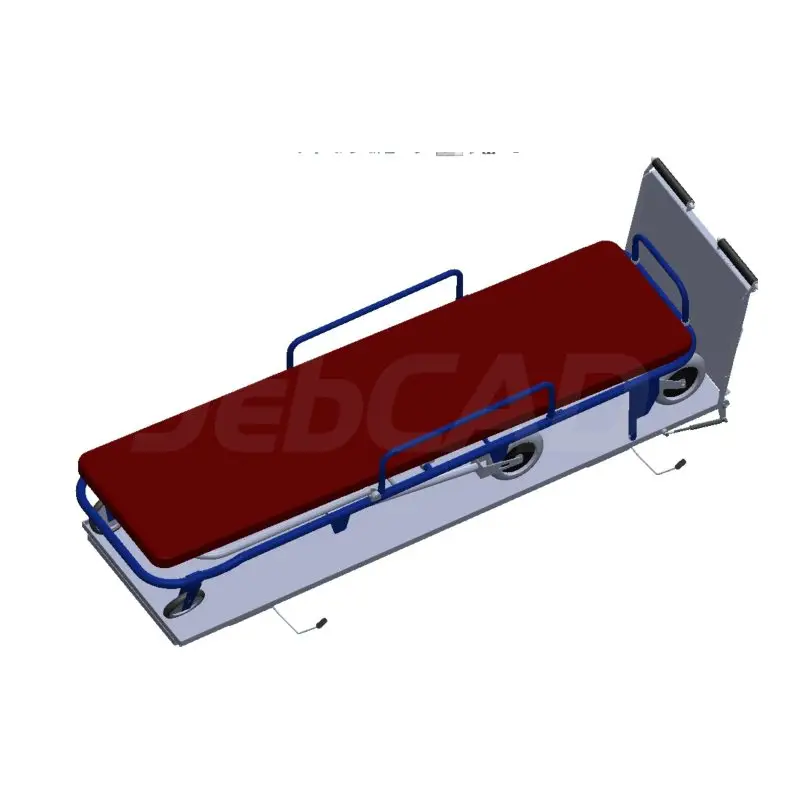

This package contains 33 hospital Revit families for healthcare facility design. It includes patient beds, medical carts, stretchers, operating tables and other medical accessories. Therefore, you can furnish wards and treatment rooms without modeling each item.

Architects, interior designers and healthcare planners can use these families in hospital projects. Moreover, the package is free to download.

Key Facts

• 33 hospital families in one ZIP file
• Beds, carts, stretchers and operating tables
• Software: Autodesk Revit (RFA)
• Price: free download
• Part 1 of the JebCAD hospital series

Where Can You Use These Hospital Revit Families?

• Patient ward layouts
• Operating and treatment rooms
• Equipment schedules
• Healthcare renders and presentations

For example, you can check bed spacing in a ward. Also, you can test stretcher routes through doors and corridors.

How to Use the Files

First, download and extract the ZIP file. Then load the families into your Autodesk Revit project. After that, place the beds and equipment in each room. Finally, create a schedule to count every item.

Related Guides on the JebCAD Blog

Explore more healthcare BIM content on our blog.

• Download Hospital Revit Families & Healthcare CAD Blocks: our wider healthcare library.
• Operating Room Revit Families: families for surgical spaces.

Need Custom Hospital Revit Families?

Our team also models medical equipment from manufacturer data. For instance, we can create a bed or monitor family with your real dimensions. See our engineering services or request a quote. You can also browse the Hospital Library.

JebCAD is an engineering team based in Ankara, Türkiye. Since 2020, we have delivered CAD, BIM and product design work for clients in many sectors.

Hospital Revit Families FAQ

How many families are included?
Part 1 includes 33 hospital families.

Are these hospital Revit families free?
Yes. You can download the package for free.

Can you model specific medical equipment?
Yes. Send us the product data and request a quote.
