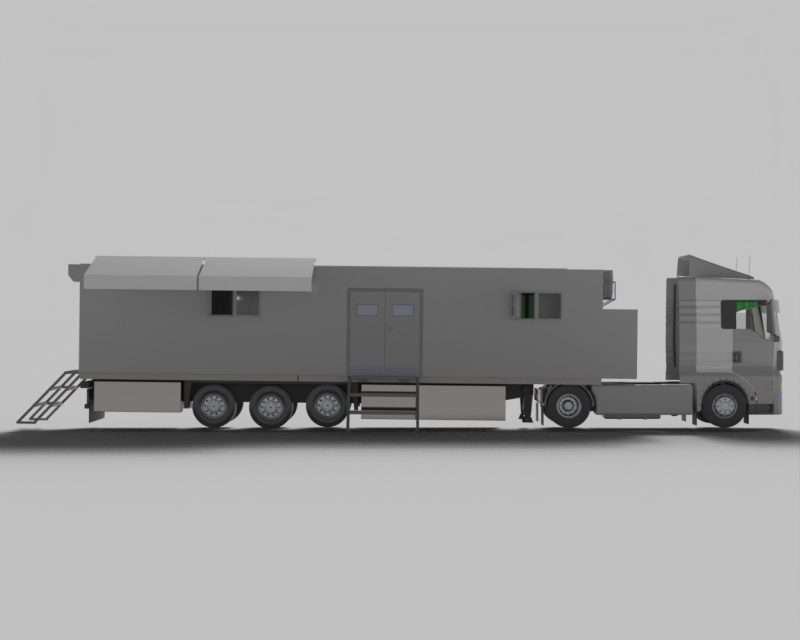

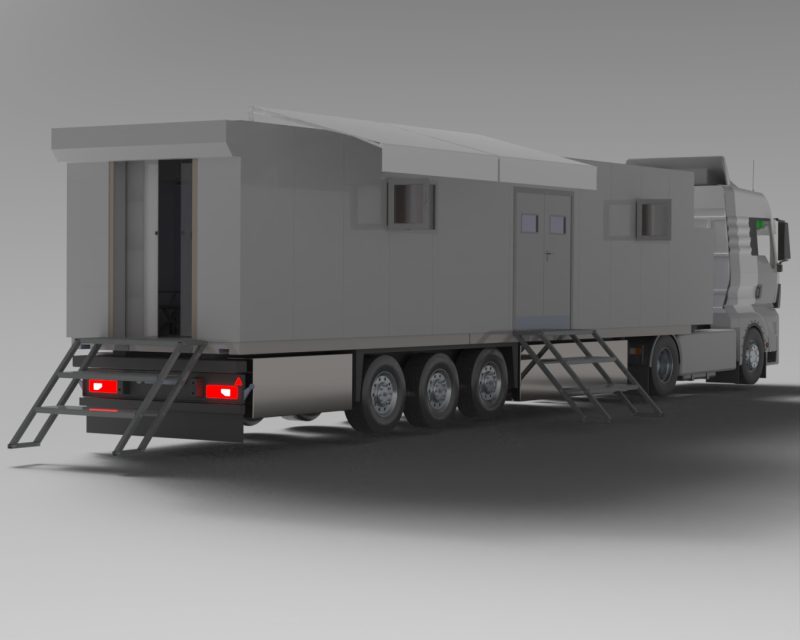

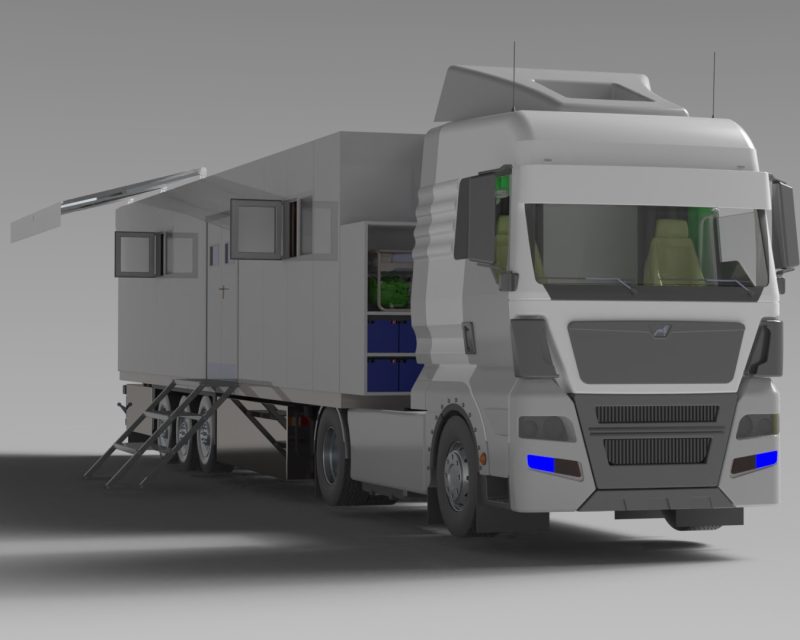

MAN Truck 40Ft Mobile Blood Donation Clinic

Description:

The MAN Truck 40Ft Mobile Blood Donation Clinic is a fully functional, truck-mounted medical facility designed for efficient blood collection and donor care in urban and remote environments. Built on a MAN heavy-duty truck chassis, this unit integrates modern healthcare standards into a mobile solution suitable for both emergency and routine medical campaigns. Optimized CAD and BIM models are available for Revit, AutoCAD, and other 3D design platforms.

Key Features:

• Vehicle Chassis: MAN 40Ft truck platform with reinforced suspension for off-road and urban use.

• Clinic Structure: Modular, insulated body with weatherproof design and easy setup in field conditions.

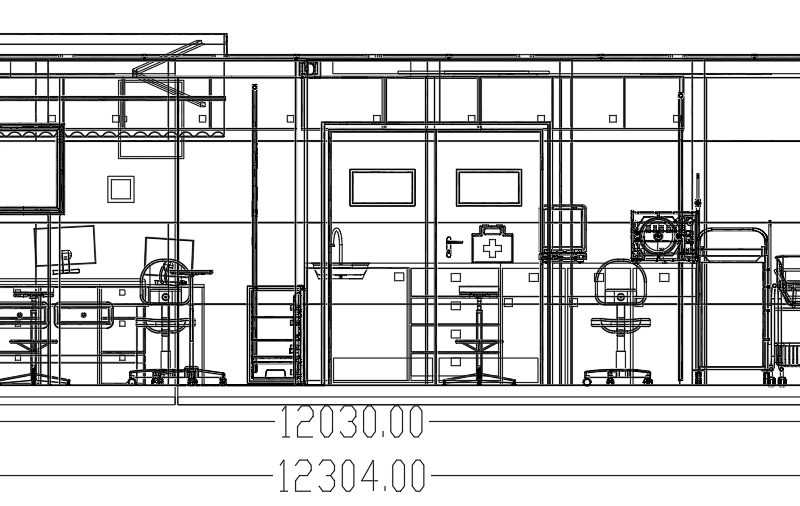

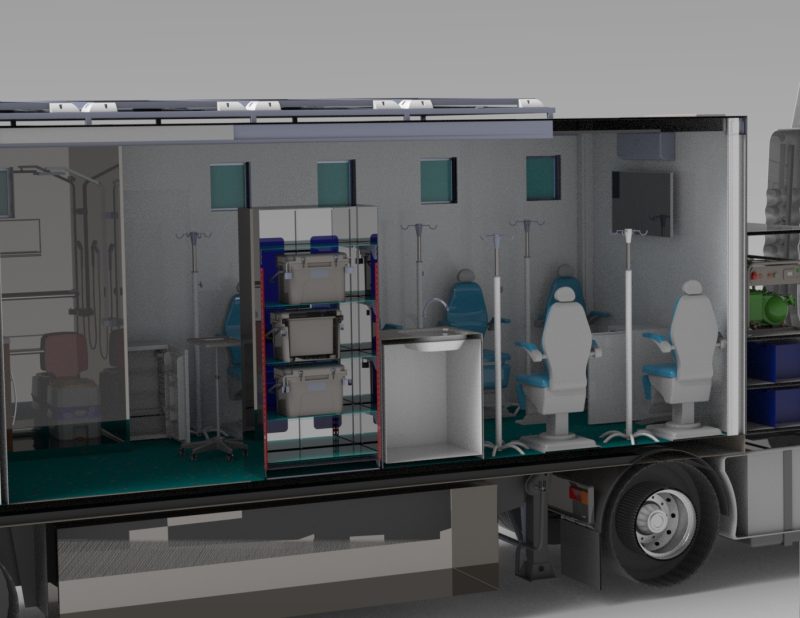

• Interior Layout:

  • Reception and donor registration area

  • Donor beds (4–6 adjustable chairs) with privacy partitions

  • Phlebotomy workstations with integrated medical equipment

  • Sample collection and labeling zone

  • Refrigerator/freezer units for blood storage

  • Post-donation recovery area with seating and refreshments

• Medical Equipment:

  • Automated blood collection monitors

  • Sterile storage cabinets

  • Autoclave sterilizer

  • Diagnostic and monitoring equipment

  • Emergency trolley and oxygen system

• Utilities & Systems:

  • HVAC and HEPA-filtered ventilation

  • LED task and ambient lighting

  • Onboard generator and electrical distribution panel

  • Water supply, waste management, and sanitation facilities

• Mobility: Self-propelled unit with rapid deployment capabilities, designed for extended field use.

Applications:

• National and regional blood donation campaigns

• Emergency medical operations and humanitarian missions

• Military and disaster-relief healthcare services

• Urban outreach healthcare programs

File Formats: Revit Family (.rfa), AutoCAD (.dwg), BIM IFC, 3D (.fbx/.obj)
