Semitrailer

Semitrailer Chassis

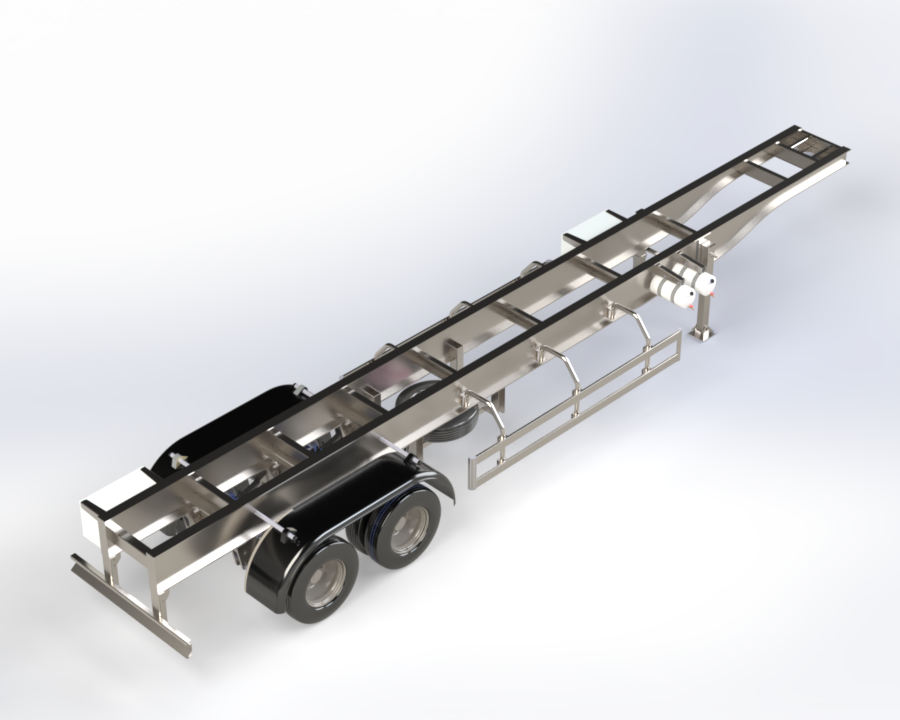

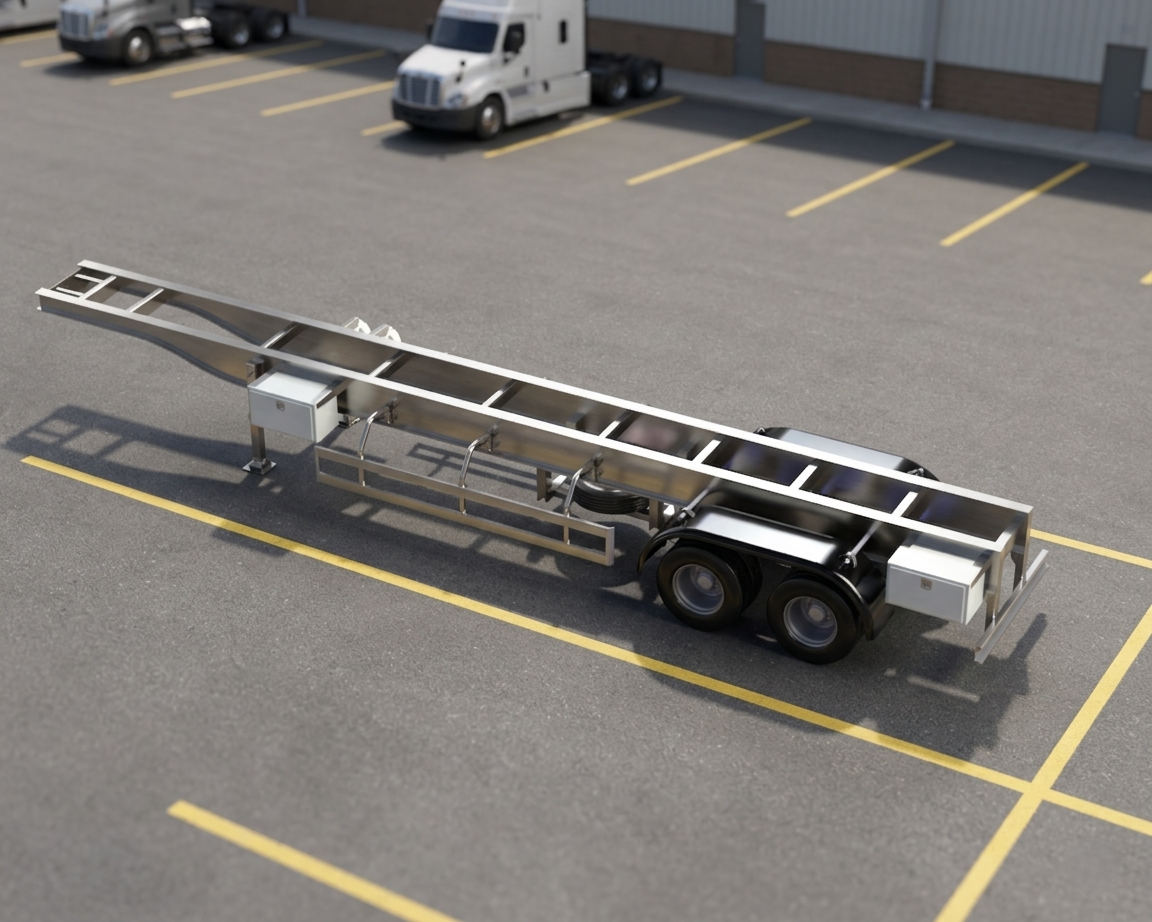

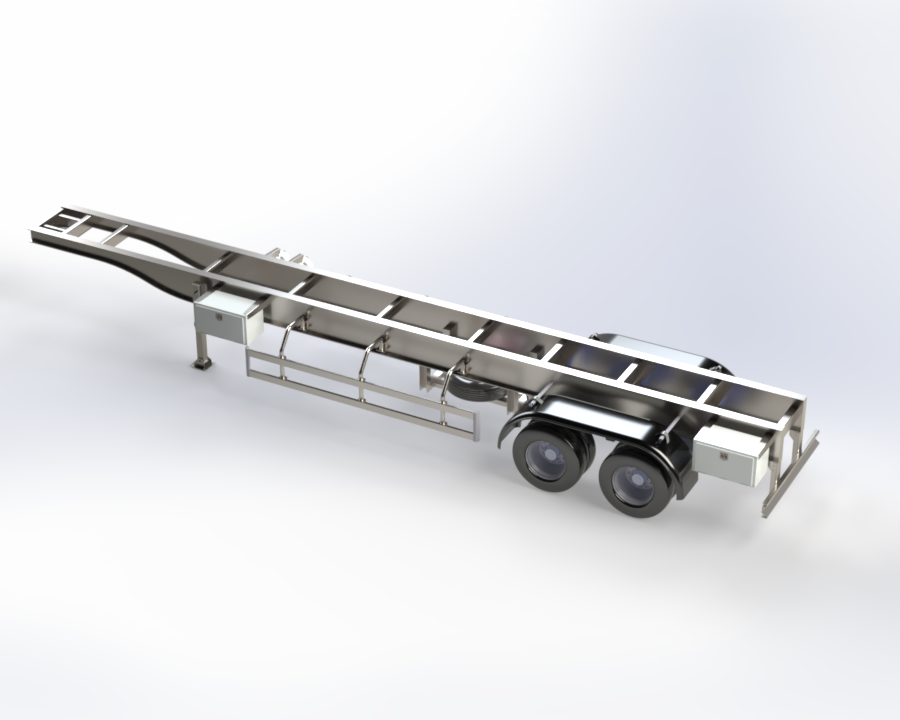

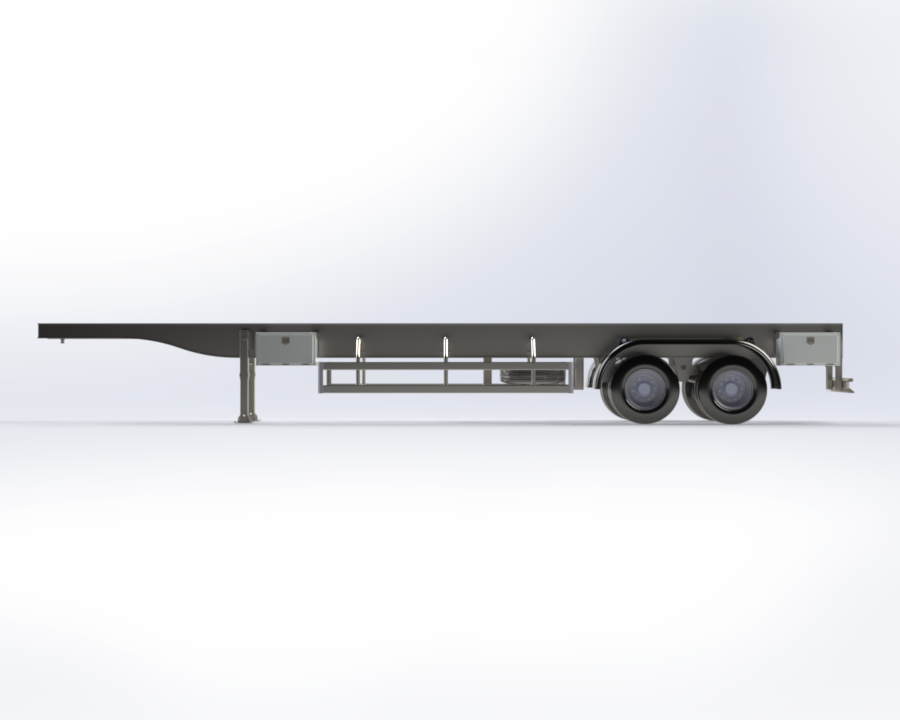

The Heavy-Duty Twin-Axle Semitrailer Chassis is a precision-engineered structural framework designed for high-capacity logistical operations and heavy freight transport. Built with a modular ladder-frame architecture, this component ensures maximum load-bearing capacity and structural rigidity while optimizing weight distribution across a dual-axle assembly.

The design features a reinforced gooseneck profile with longitudinal I-beams and strategically placed cross-members to handle high torsional stress during transit. The assembly integrates essential functional components, including a twin-axle system with dual-wheel configurations, adjustable front landing gear for uncoupled stability, and integrated side underrun protection guards. The model also includes high-capacity storage toolboxes and contoured mudguards, all designed with clean surface continuity and accurate proportions. This industrial-grade geometry is fully optimized for mechanical integration, vehicle dynamics analysis, and photorealistic marketing renders.

This CAD model is ideal for professional use in logistics planning simulations, trailer manufacturing studies, and high-quality transportation visualization projects.

Key Features

• Reinforced Ladder-Frame Construction: Heavy-duty longitudinal beams for superior bending and torsional stiffness.

• High-Capacity Twin-Axle System: Precision-modeled dual-wheel configuration for heavy load distribution.

• Integrated Side Underrun Protection: Safety-compliant lateral guards designed for aerodynamic and safety performance.

• Adjustable Front Landing Gear: High-fidelity support legs for stable independent positioning.

• Modular Storage Solutions: Integrated side-mounted toolboxes for ancillary equipment and maintenance tools.

• Heavy-Duty Fenders and Rear Bumper: Contoured mudguards and a structural rear under-ride guard.

• Clean Industrial Geometry: Fully optimized topology suitable for seamless CAD workflows and realistic rendering.

Applications

• Logistics and Haulage Simulations: Integration into supply chain and fleet management visualizations.

• Trailer Manufacturing: Technical benchmarking and structural design for heavy transport equipment.

• Vehicle Dynamics Analysis: Center of gravity and load-bearing distribution simulations.

• Safety and Compliance Testing: Virtual underrun and impact protection studies.

• Marketing and Industrial Portfolios: Photorealistic rendering for logistics, transport, and infrastructure media.

File Format

• STP / STEP

Our engineering team is available to customize this semitrailer chassis design to meet specific operational requirements, including frame length extensions, axle configuration adjustments, load ratings, and integrated accessory specifications.

Find more related items on Shop section to download for free.

Need a Custom Semitrailer Chassis Design?

Our engineering team in Ankara also designs vehicle bodies and chassis to your requirements. For example, we can adapt this semitrailer chassis to your axle layout, length or load. See our engineering services or request a quote. You can also browse the Automotive Sector Library.

To get started, download the files and open them in your CAD software. Then check the main dimensions against your project before you use them.
