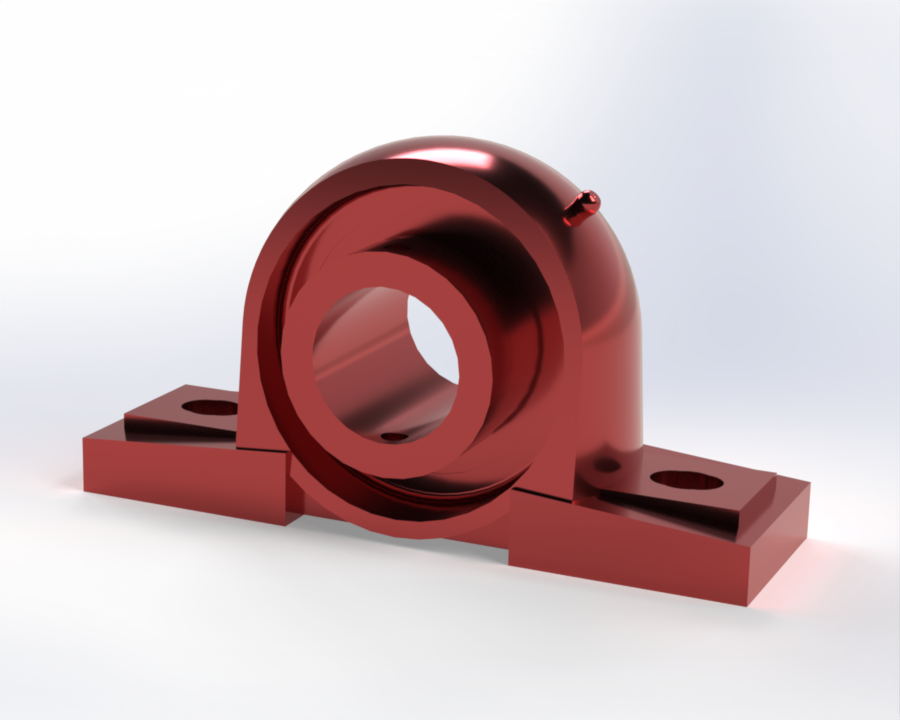

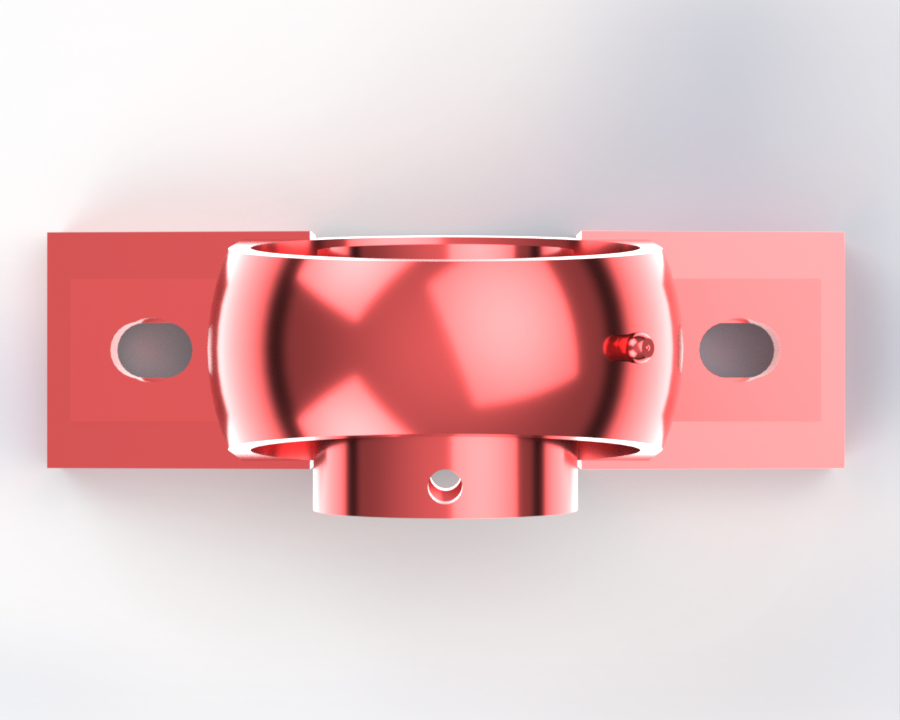

Shaft Holder – Reliable Support for Rotating Systems

The Shaft Holder is a precision-engineered component designed to provide stable support and accurate positioning for rotating shafts in mechanical systems. Widely used in automation, robotics, machinery, and conveyor systems, it ensures smooth motion, reduced vibration, and enhanced durability of rotating equipment.

Built from robust materials, the shaft holder offers excellent load-bearing capacity, dimensional accuracy, and resistance to wear, making it suitable for both light-duty and heavy-duty industrial applications. Its modular design supports customization of shaft diameter, mounting style, and housing type, giving engineers flexibility for project-specific requirements.

The Shaft Holder is fully compatible with CAD and 3D modeling software, enabling designers to integrate it seamlessly into assemblies, conduct motion analysis, and optimize layouts. It is also a practical resource for students learning about mechanical design, support structures, and motion control systems.

Key Features:

• Provides stable and accurate support for rotating shafts.

• Durable construction for industrial and automation systems.

• Customizable diameter, mounting type, and housing design.

• CAD/3D modeling compatible for design and simulation.

• Suitable for engineers, designers, and students.

The Shaft Holder delivers precision, reliability, and flexibility, making it an essential component for modern mechanical and industrial applications.

Function in Industrial Designs

• Alignment – Keeps the shaft on its intended axis, preventing wobbling or misalignment that could damage bearings, couplings, or gears.

• Load Support – Carries radial and sometimes axial loads from the shaft and transmits them to the machine frame.

• Housing for Bearings – Often integrated with bearings (e.g., pillow blocks, flange bearings), so the shaft can rotate smoothly while being held rigidly.

• Fixation – In some cases, it doesn’t allow rotation but instead clamps the shaft in place (e.g., positioning fixtures, indexing shafts).

Common Industrial Shaft Holders

1. Pillow block bearings – Self-contained units that hold a shaft and allow rotation with support.

2. Flange-mounted bearings – Flat mounting style for holding shafts against machine surfaces.

3. End supports for lead/ball screws – Secure rotating screws or drive shafts in CNCs and automation equipment.

4. Rigid shaft clamps/collars – Used when shafts must be fixed, not rotating.

Examples of Use

• In a conveyor system, shaft holders keep the roller shafts aligned.

• In a motor/gearbox assembly, they house bearings that support the motor shaft.

• In a pump, they hold the impeller shaft in position and transfer load to the casing.

So in industrial design, a shaft holder is essentially a structural element that ensures a shaft is mounted securely, aligned correctly, and either allowed to rotate or fixed in place, depending on the application.
