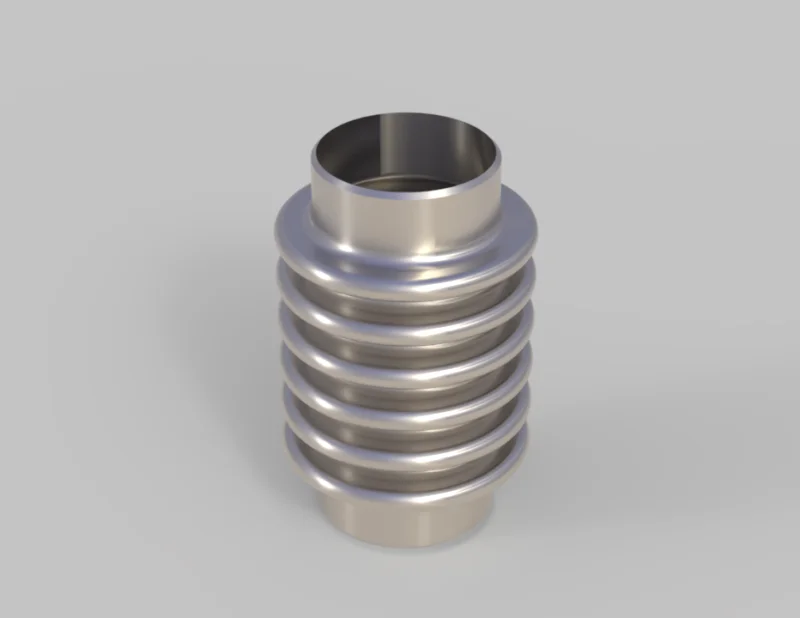

Stainless Steel Expansion Bellows

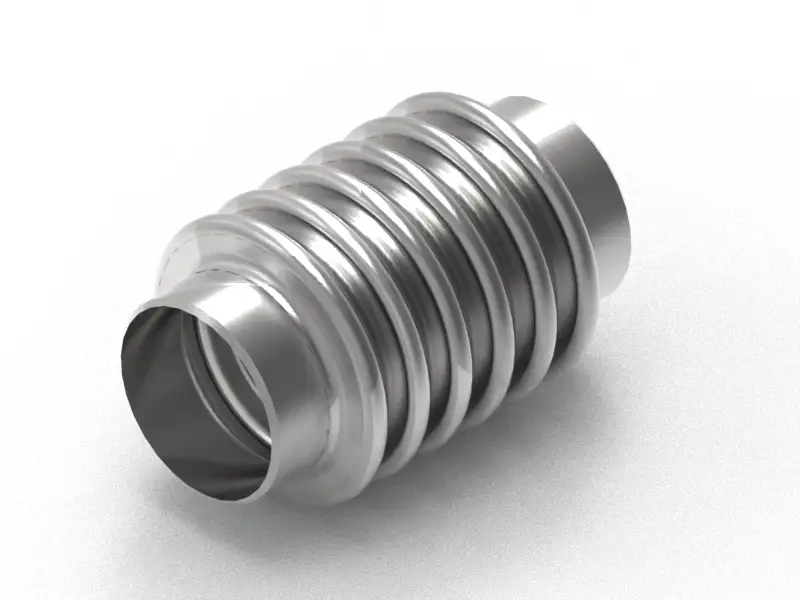

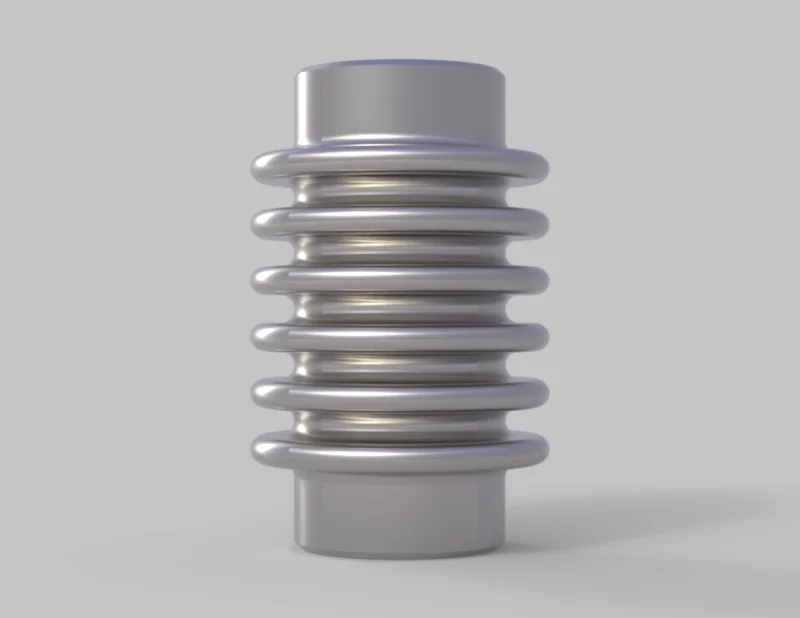

The Stainless Steel Expansion Bellows is a precision-engineered flexible component designed to absorb thermal expansion, vibration, and mechanical misalignment in piping and ducting systems. Manufactured with a corrugated cylindrical body and smooth end connections, this component ensures controlled axial flexibility while maintaining structural integrity under pressure and temperature variations.

The design features uniform convolution geometry optimized for flexibility and stress distribution, along with straight end sections prepared for welding integration into pipeline assemblies. The smooth internal bore supports consistent flow characteristics, while the external corrugations provide the required elasticity for dynamic system movement. Clean surface continuity and accurate proportions make this model suitable for engineering visualization, piping layout integration, and technical documentation.

This CAD model is ideal for professional use in mechanical design studies, piping system simulations, and high-quality industrial rendering.

Key Features

• Corrugated cylindrical body for axial flexibility

• Uniform convolution geometry for optimized stress distribution

• Weld-ready straight end connections

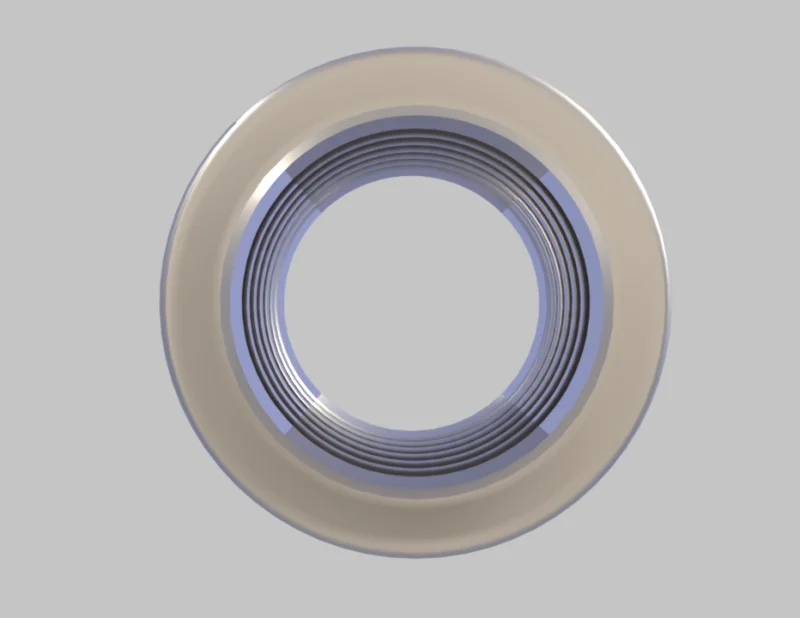

• Smooth internal bore for consistent flow characteristics

• Compact, space-efficient design

• Clean, continuous surfaces suitable for realistic rendering

• Industrial-grade geometry optimized for CAD workflows

Applications

• Thermal expansion compensation in piping systems

• Vibration isolation in pump and compressor lines

• Pressure piping in industrial plants

• HVAC and ducting systems

• Chemical and process engineering installations

• Engineering visualization and simulation

• Technical presentations and industrial design portfolios

File Format

• SolidWorks: STP

Our engineering team is available to customize this expansion bellows design to meet specific operational requirements, including diameter adjustments, convolution count, pressure ratings, and material specifications.
