Wheel Ring — Technical Description + Datasheet (SEO Compliant)

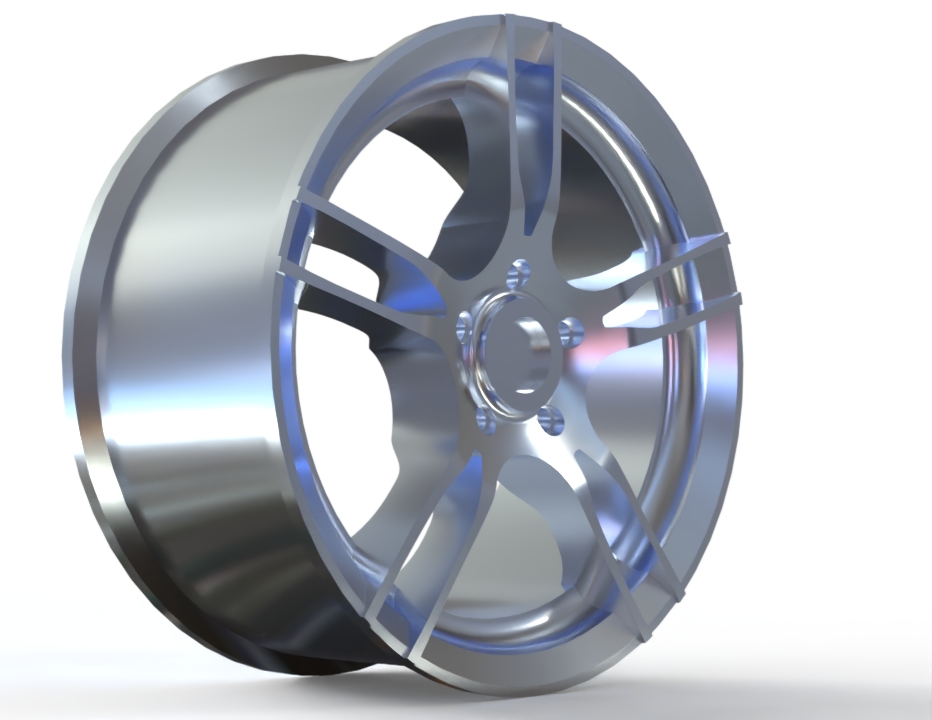

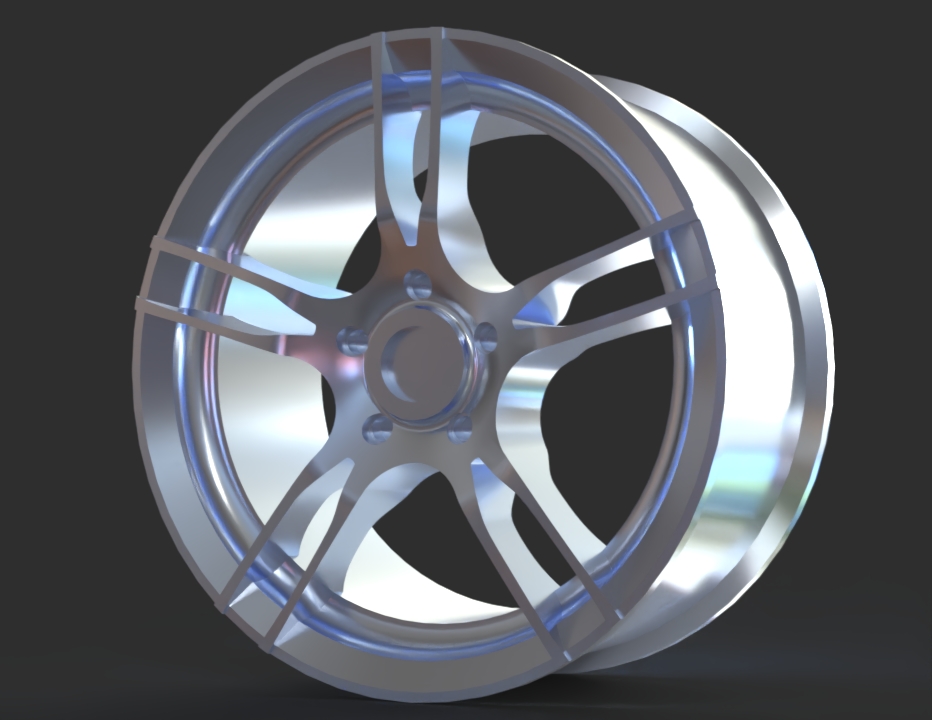

A Wheel Ring is a critical structural component used to provide reinforcement, stability, and precise load distribution within wheel assemblies. Whether used in automotive systems, industrial machinery, robotics, or custom mechanical projects, the Wheel Ring ensures reliable rotation, improved durability, and optimized performance. Its compatibility with 3D CAD modeling, CNC machining, and manufacturing workflows makes it essential for engineers and designers working on professional or academic projects.

Technical Datasheet — Wheel Ring

1. General Specifications

• Component Name: Wheel Ring

• Category: Mechanical Component / Rotational Assembly

• CAD Formats Available: STEP, SLDPRT, SLDASM, DWG, STL

• Application Areas: Automotive engineering, robotics, conveyor systems, industrial machinery, prototype development

2. Dimensions (Typical Range — Customizable)

• Outer Diameter (OD): 80–350 mm

• Inner Diameter (ID): 40–180 mm

• Thickness: 5–25 mm

• Surface Finish: Machined / anodized / powder-coated (optional)

• Tolerances: ±0.05–0.10 mm

3. Material Options

• Carbon Steel (AISI 1045): High strength and long service life

• Aluminum Alloy (6061 or 7075): Lightweight, corrosion-resistant

• Stainless Steel (304/316): Superior durability and chemical resistance

• Engineering Plastics (PA6, POM): Lightweight applications and low friction

4. Mechanical Properties

• Hardness: 70–200 HB depending on material

• Tensile Strength: 250–550 MPa

• Heat Resistance: Up to 150°C for metals

• Load Capacity: Designed to support radial and axial wheel loads

5. Design Features

• Perfect circularity for stable rotation

• Reinforced profile for load distribution

• Compatible with bearings, hubs, and wheel spokes

• Optimized geometry for FEA and motion simulation

• Configurable mounting points

6. Manufacturing & CAD Notes

• Fully parametric 3D CAD model

• CAM-ready geometry suitable for CNC turning or casting

• Can be customized with grooves, ribs, or weight-reduction pockets

• Designed according to ISO mechanical component standards

7. Use Cases

• Vehicle wheel assemblies

• Industrial roller systems

• Robotics wheel hubs

• Small machinery and equipment wheels

• Custom mechanical prototypes

Find more on Shop Section.
