Professional 2D Truck Design Set

The 2D Trucks Set is a comprehensive collection of heavy-duty and specialized vehicle engineering drawings developed for industrial and logistics applications. The set includes:

• Container transport trucks
• Fuel tankers
• Dump trucks
• Refuse collection vehicles
• Service trucks with lifting systems
• Articulated transport units

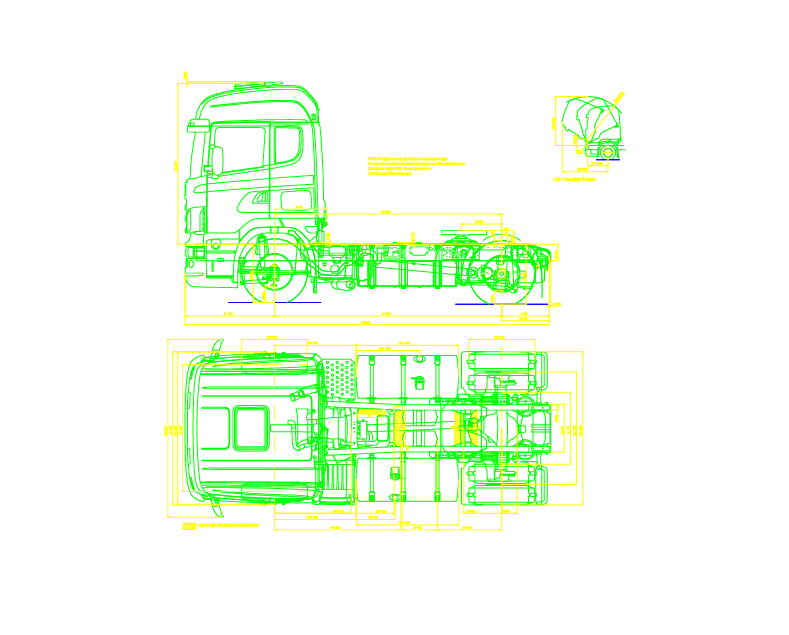

Each vehicle is presented in side, front, and top views for clear structural and mechanical understanding.

Engineering-Focused Vehicle Configurations

All designs are developed with a focus on:

• Chassis configuration and axle distribution
• Load stability and weight optimization
• Mechanical and hydraulic system integration

The layouts ensure practical usability, safety, and efficiency in real-world operations.

Industrial Applications and Usability

These truck designs are suitable for:

• Oil and gas operations
• Municipal services
• Construction and infrastructure projects
• Heavy logistics and transport

Key elements such as reinforced body structures, tank positioning, and cargo systems are clearly defined.

JEBCAD Engineering Expertise

This collection highlights JEBCAD’s capability in 2D vehicle design, industrial engineering, and precision technical drafting.

Search Shop section for more related items to download for free.
