Professional 2D Tanker Truck Designs

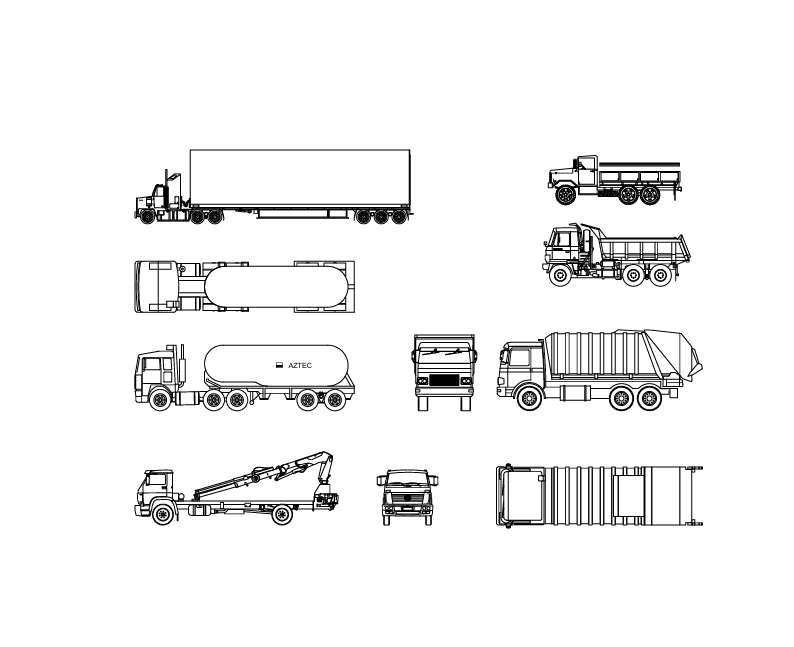

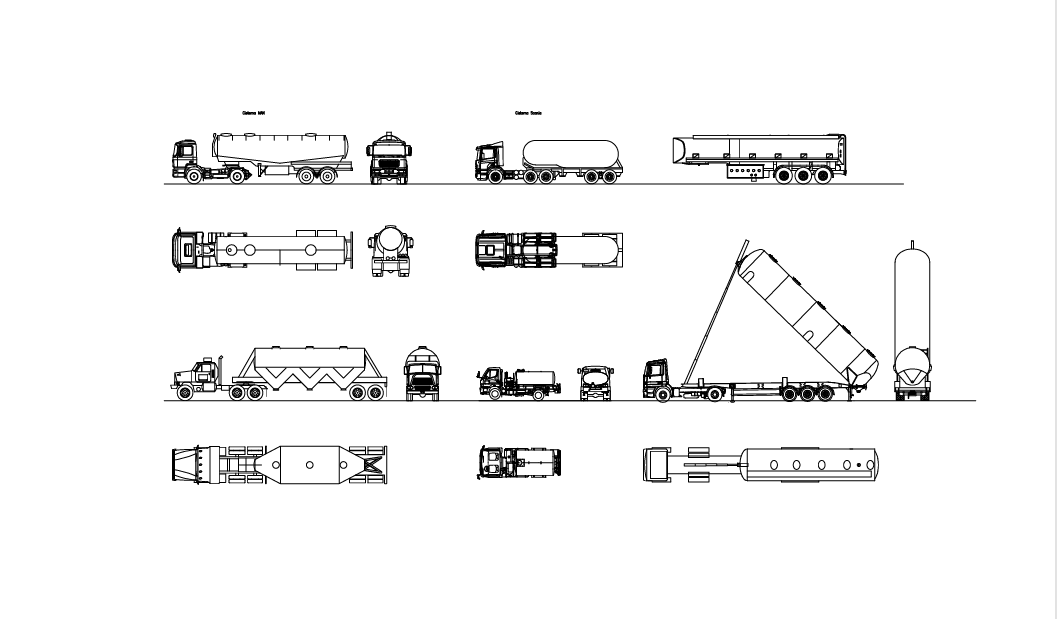

The 2D Truck Tankers collection includes precision-engineered drawings of tanker trailers, bulk transport units, and articulated heavy-duty configurations. Each design is presented in side and top views, providing clear visibility of structural layout, dimensions, and mechanical integration.

The drawings ensure clear engineering understanding and practical usability for industrial applications.

Engineering and Performance Focus 2D Tanker Trucks

These tanker designs are developed with emphasis on:

• Optimized load distribution
• Structural strength and durability
• Safe liquid and bulk material transport

Key elements such as tank positioning, axle configuration, and discharge systems are clearly defined for reliable operation.

Industrial Applications

Suitable for:

• Liquid transport systems
• Bulk material handling
• Pressurized tanker applications
• Heavy logistics and industrial transport

All configurations are designed considering stability, safety, and transport compliance for 2D Truck Tankers.

JEBCAD Engineering Expertise

This collection reflects JEBCAD’s strength in tanker design, trailer engineering, and precise 2D technical drafting for industrial vehicle systems.

Search Shop section for more related items to download for free.
