3D CAD Drone UAV

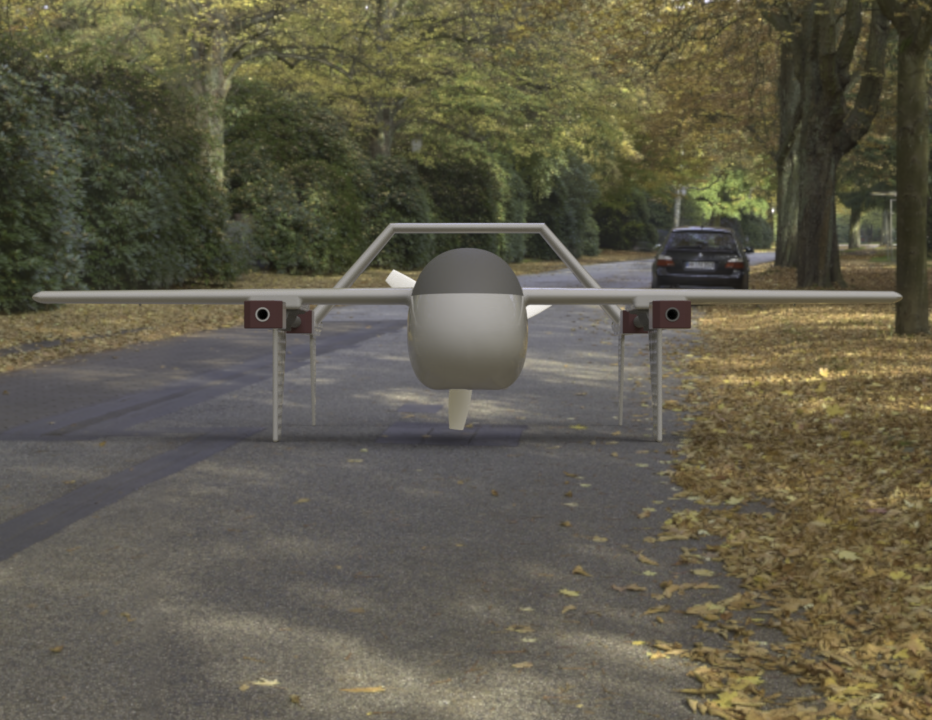

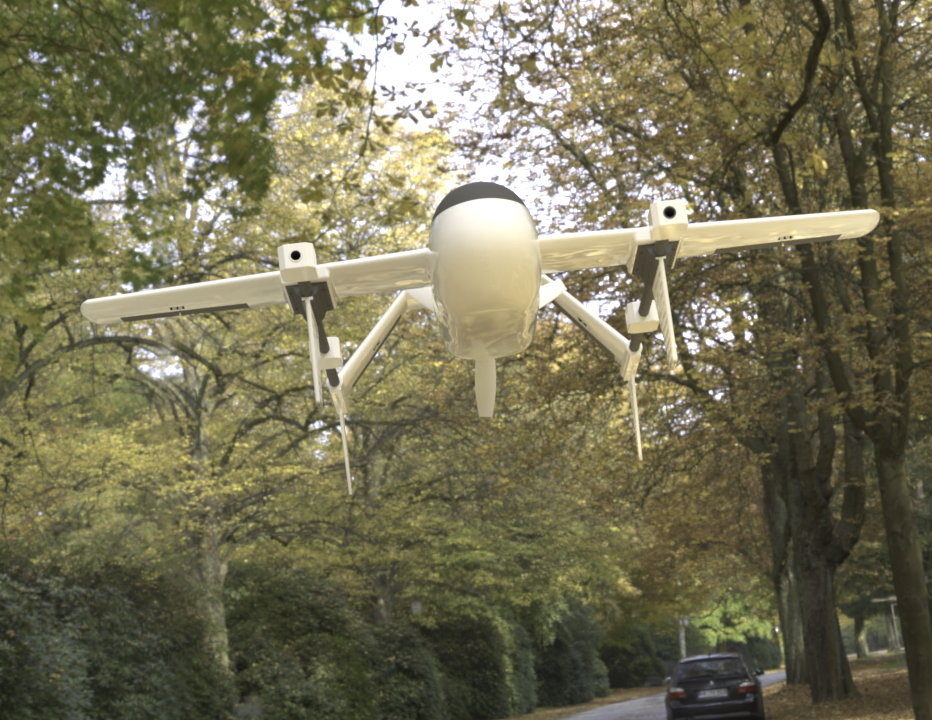

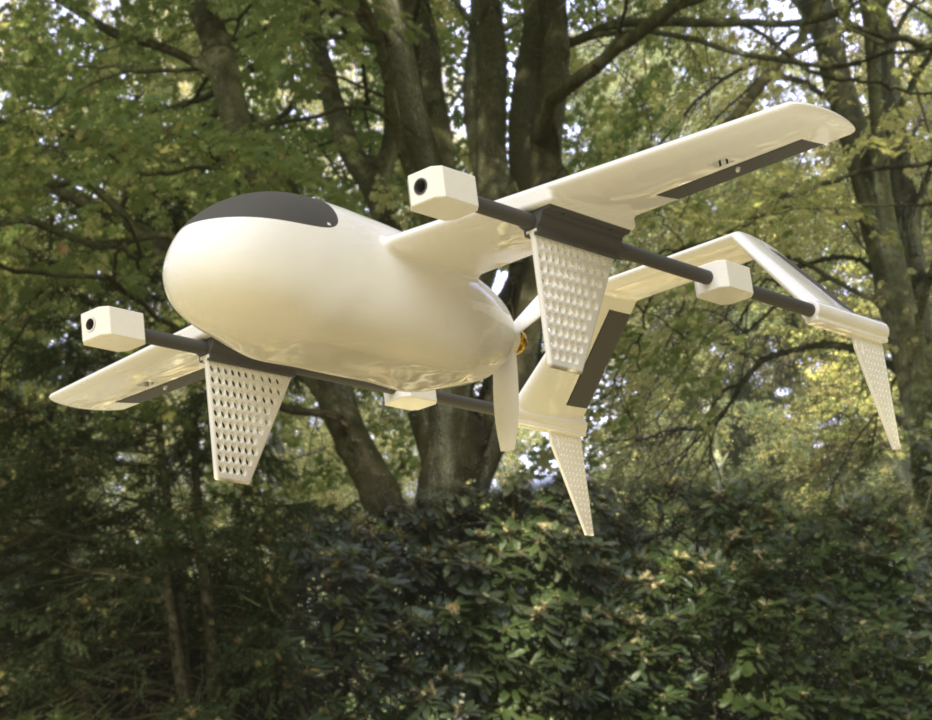

3D CAD Drone UAV – 3D Hybrid Drone Aircraft – Ready for Manufacturing (3D Printing)

The 3D CAD Drone UAV – 3D Hybrid Drone Aircraft is a manufacturing-ready CAD model designed for additive manufacturing and rapid prototyping. This model has been prepared for engineers, UAV developers, and makers who require a printable drone airframe for testing, development, or production.

The model is optimized for 3D printing and can be used for prototype fabrication, functional testing, or small-scale production. All major structural components are designed with practical geometry suitable for common 3D printing technologies.

Manufacturing Method

Primary method: 3D Printing (Additive Manufacturing)

The model is prepared for fabrication using standard 3D printing processes such as:

• FDM / FFF printing
• SLA or resin printing (for smaller parts)
• SLS printing for higher-strength components

Parts can be printed individually and assembled into a complete airframe.

Key Features

• Manufacturing-ready drone airframe model
• Optimized geometry for 3D printing
• Modular components for easier printing and assembly
• Suitable for prototyping and functional testing
• Clean, watertight CAD geometry
• Scalable for different drone sizes

Typical Applications

• UAV prototyping and development
• Flight testing platforms
• Research and educational projects
• Custom drone fabrication
• Product development and iteration
• Demonstration models

Materials (Typical)

Depending on the printing method, suitable materials include:

• PLA or PETG for prototypes
• ABS for higher durability
• Nylon for functional parts
• Carbon-fiber reinforced filaments for structural strength
• Resin for detailed components

Material selection depends on strength, weight, and intended use.

Assembly Overview

The drone is designed as a modular assembly that typically includes:

• Fuselage sections
• Wings
• Tail structure
• Motor mounts
• Internal mounting points for electronics

Parts can be printed separately and assembled using fasteners or bonding depending on requirements.

Compatibility 3D CAD Drone UAV

The model can be used with:

• Most 3D printers
• Common slicer software
• Major CAD platforms for modification
• Rapid prototyping workflows
