3D CAD Gaz Spring Hydraulic Arm

Gas Spring Hydraulic Arm – 3D CAD Model | Adjustable Lift Support Mechanism

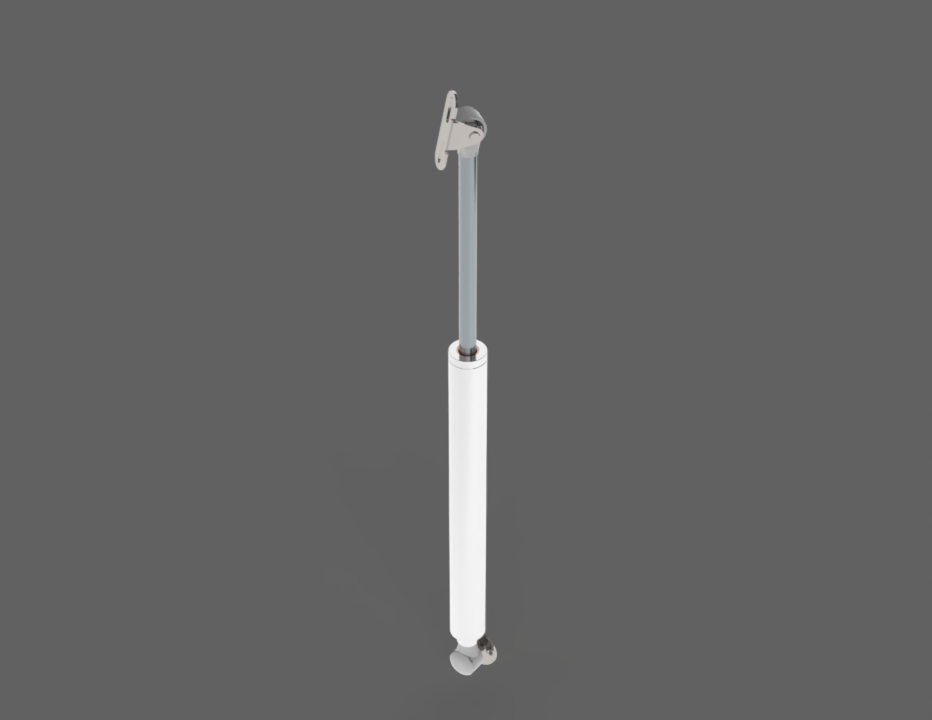

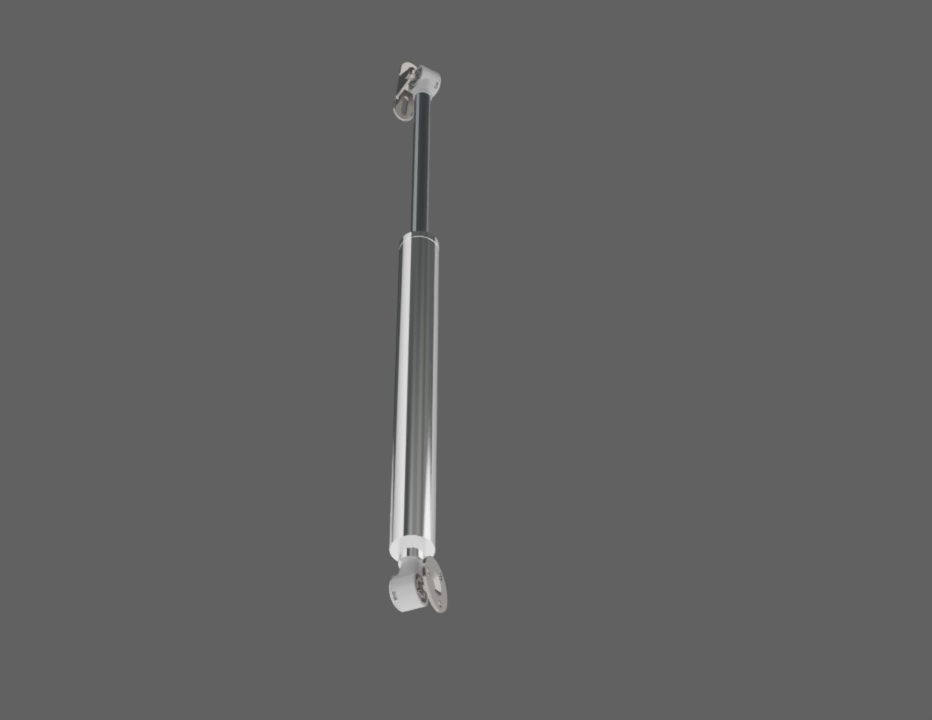

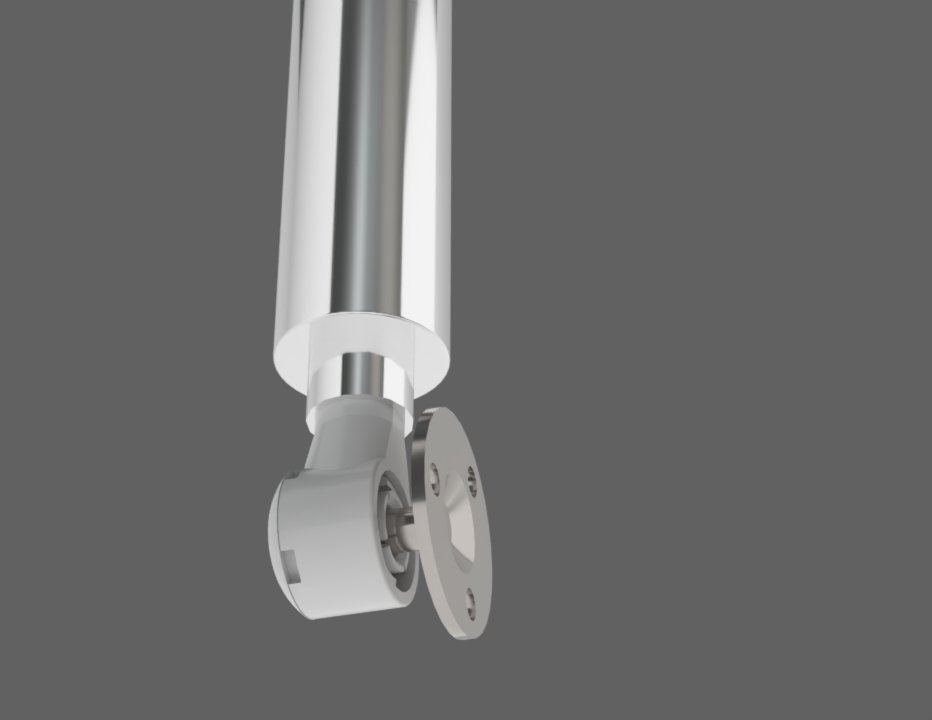

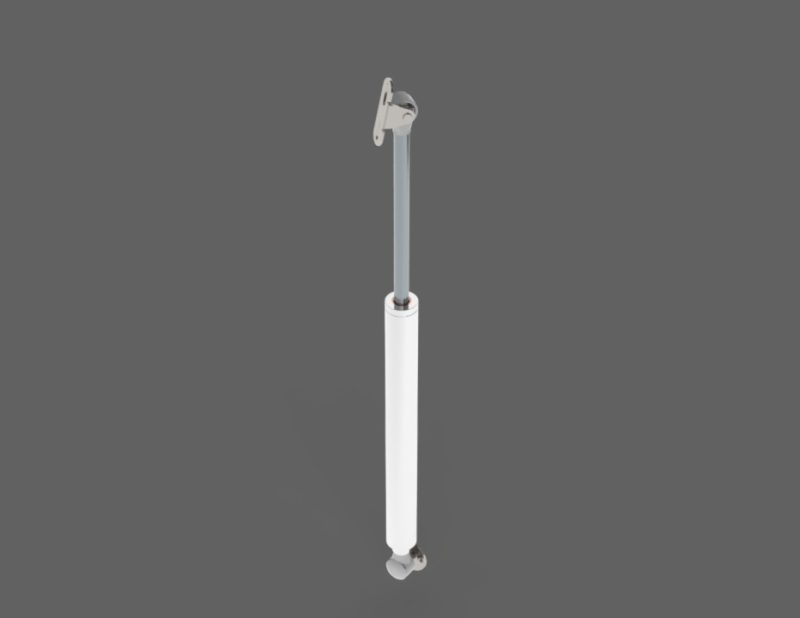

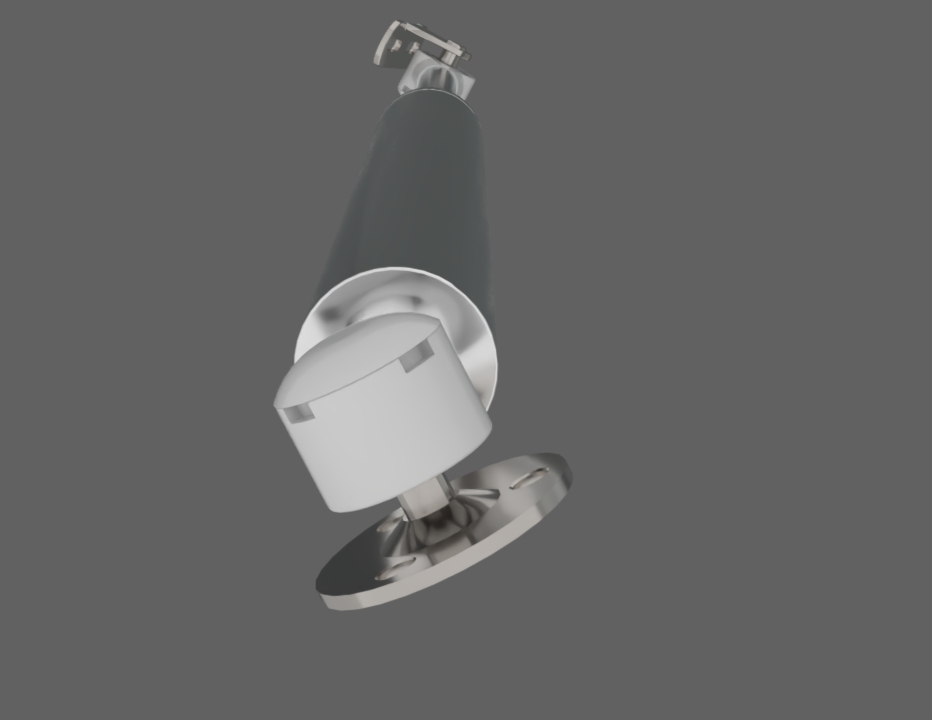

This 3D CAD gas spring hydraulic arm model represents a gas spring (gas strut) mechanism commonly used for controlled lifting, lowering, and positioning in furniture, medical equipment, industrial assemblies, and mechanical systems. The model includes the cylindrical gas spring body, extending piston rod, and mounting end fittings, accurately reflecting a standard hydraulic gas spring design.

The geometry is clean and precisely structured, making the model suitable for mechanical design, product development, and 3D visualization. The articulated rod and end mounts allow realistic representation of motion and installation within larger assemblies.

Key Features:

• Detailed gas spring / hydraulic strut construction

• Includes cylinder body, piston rod, and mounting joints

• Suitable for adjustable and motion-assisted mechanisms

• Clean CAD topology for easy modification and scaling

• Compatible with standard CAD and 3D design software

Applications:

• Furniture mechanisms (chairs, beds, cabinets)

• Medical and hospital equipment design

• Industrial machinery and enclosures

• Mechanical system simulation

• Engineering visualization and prototyping

This gas spring hydraulic CAD model can be adapted to represent different stroke lengths, mounting styles, or load capacities depending on project requirements.

Why Start from a Ready Model?

Modeling every part from scratch takes hours. Instead, you can start from this gas spring CAD model and spend your time on design decisions. Because the file is ready, your team can test layouts and options faster. In addition, a shared model keeps drawings and schedules consistent across the project. As a result, the project moves from concept to drawings with fewer delays.

However, always compare key dimensions with the final product data before you build. That way, your model stays accurate from design to delivery. If something does not match, our engineers can update the file for you.

Need a Custom Gas Spring CAD Model?

Our engineers also design lift mechanisms and mechanical assemblies to your requirements. For instance, we can model a gas spring with your stroke length, end fittings or load. As a result, it fits your product exactly. See our engineering services or request a quote. You can also explore the Mechanical & Industrial Library.

To get started, download the files and open them in SOLIDWORKS. Then place the gas spring in your assembly and set the mounting points. After that, check the motion range in your design.
