3D CAD PVC Window

PVC Window – 3D CAD Model | uPVC Architectural Window System

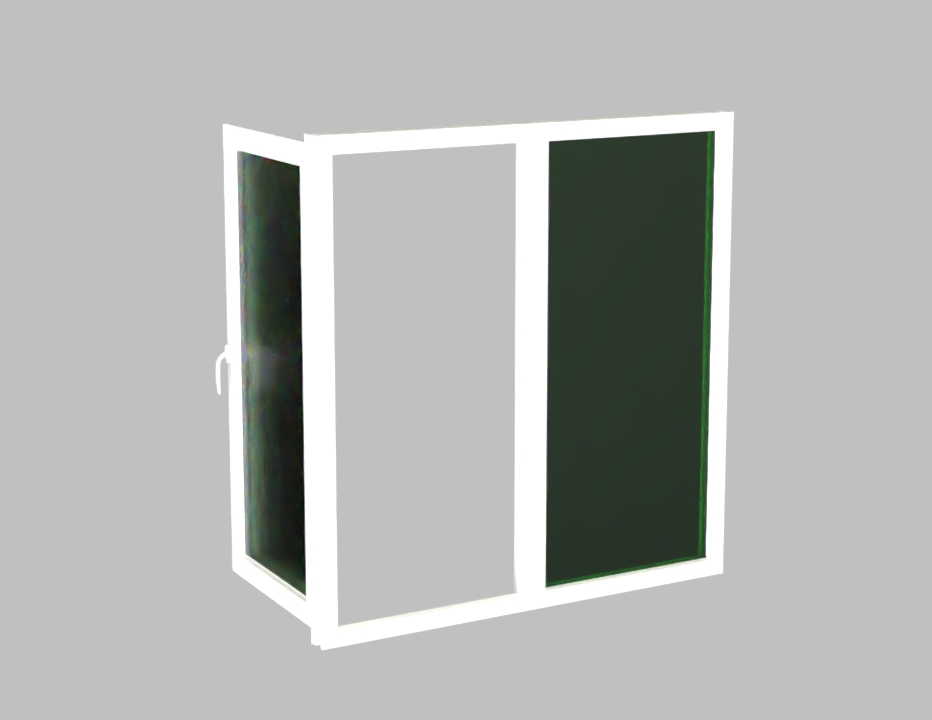

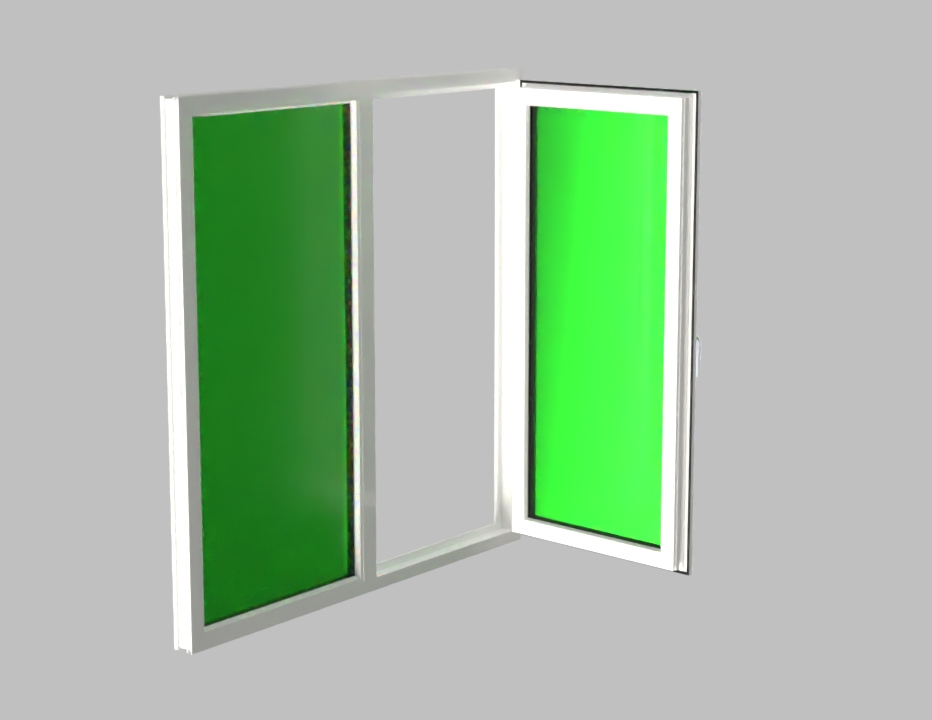

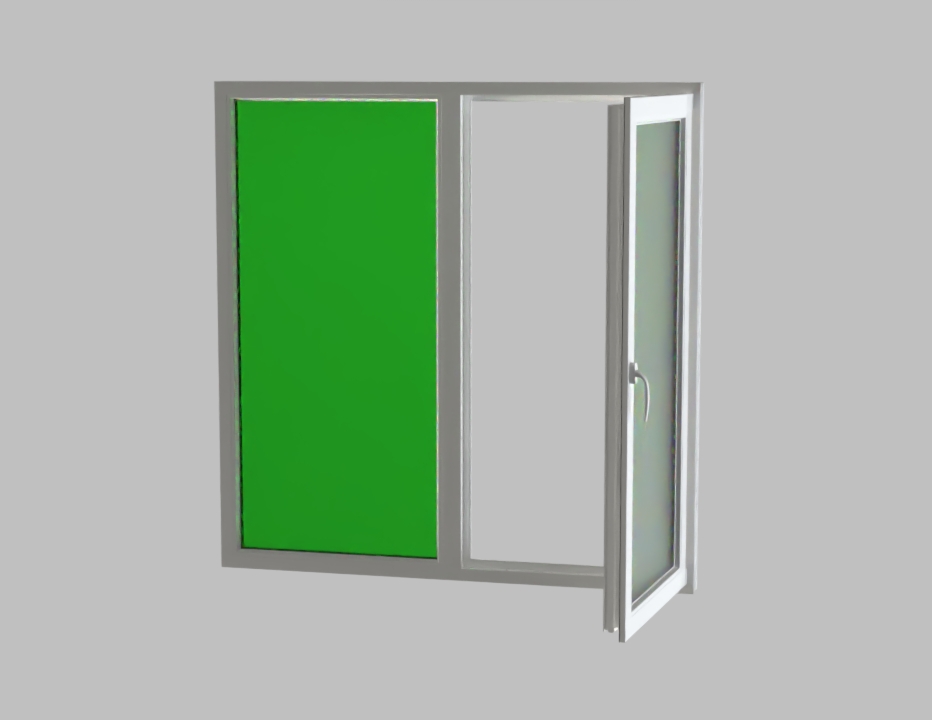

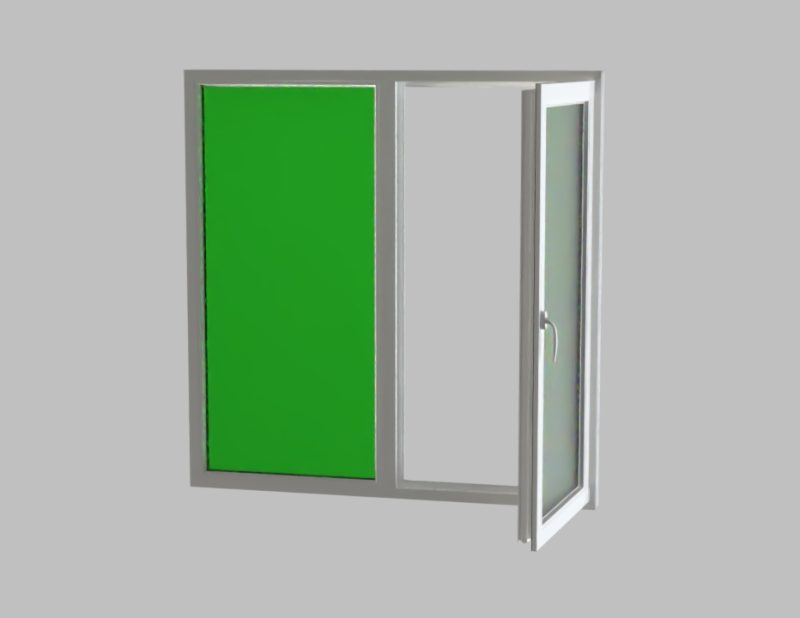

This 3D CAD PVC window model represents a standard uPVC (PVC) window system commonly used in residential, commercial, and industrial buildings. The model is created with accurate proportions and clearly defined components, including the window frame, sash, glazing area, and profile sections typical of PVC window constructions.

The geometry is clean and structured, making the model suitable for architectural design, building information modeling (BIM), construction planning, and 3D visualization. The PVC window design supports integration into façade layouts, interior planning, and technical presentations.

Key Features:

• Detailed uPVC (PVC) window frame and sash geometry

• Suitable for architectural and construction design workflows

• Clean CAD topology for easy editing, scaling, and customization

• Compatible with standard CAD and 3D design software

Applications:

• Architectural and building design projects

• Residential and commercial window layout planning

• 3D visualization and rendering

• Construction and manufacturing reference

• Educational and technical presentations

This PVC window CAD model can be adapted to represent different window sizes, opening types (fixed, sliding, or hinged), and glazing configurations, depending on project requirements.
