3D CAD Plastic Water Tank

3D CAD Plastic Water Tank provides an accurate three-dimensional model of a plastic water storage tank, designed for engineering, manufacturing reference, architectural coordination, and technical visualization. The model is suitable for residential, commercial, industrial, and agricultural water storage applications.

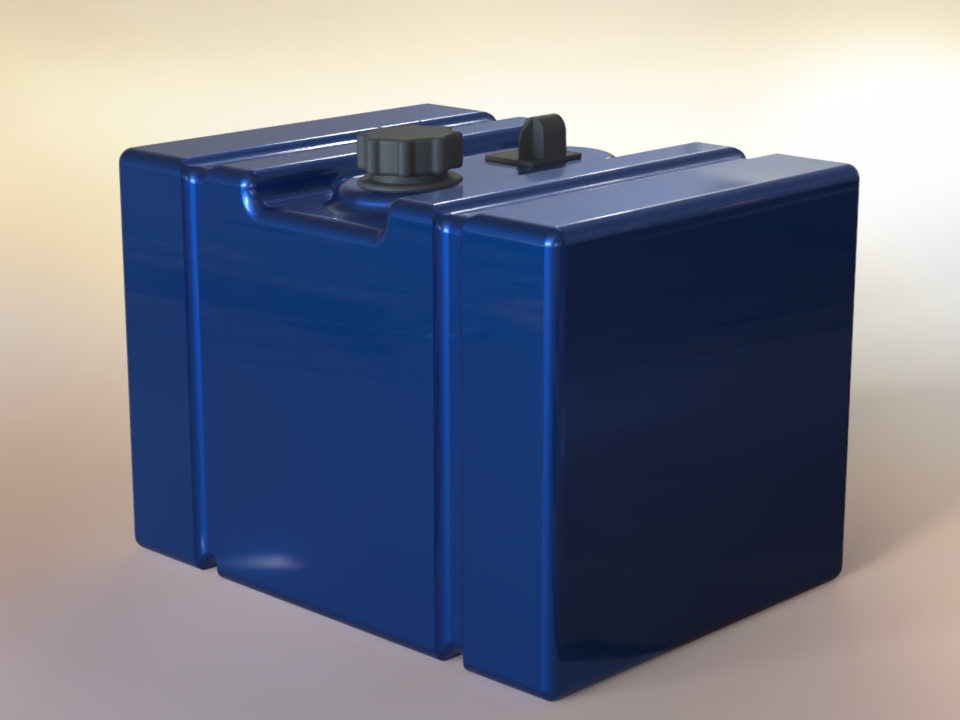

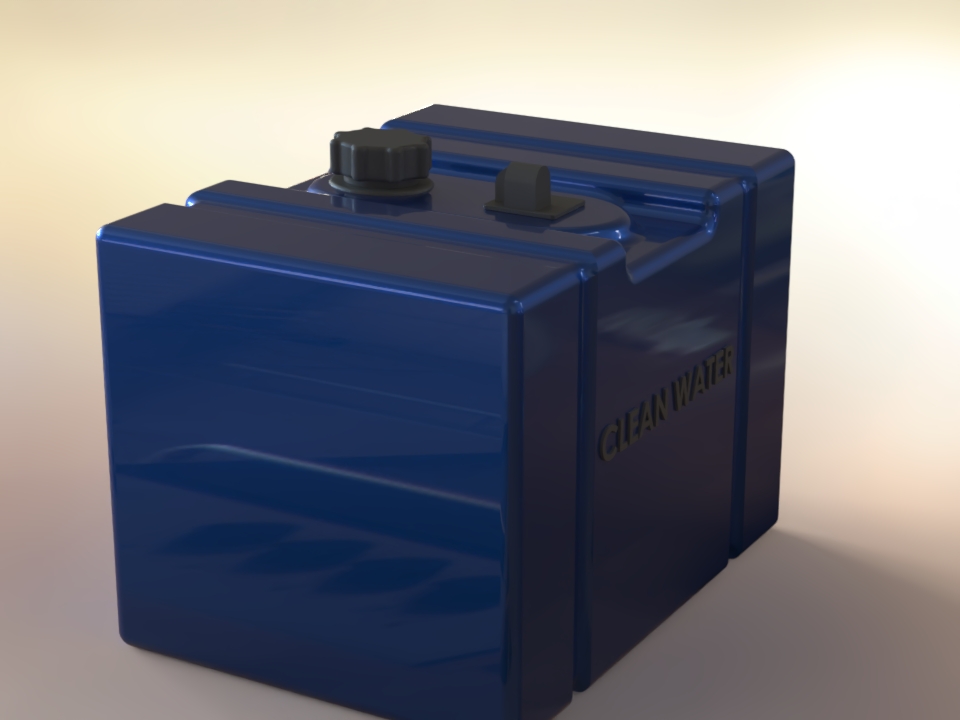

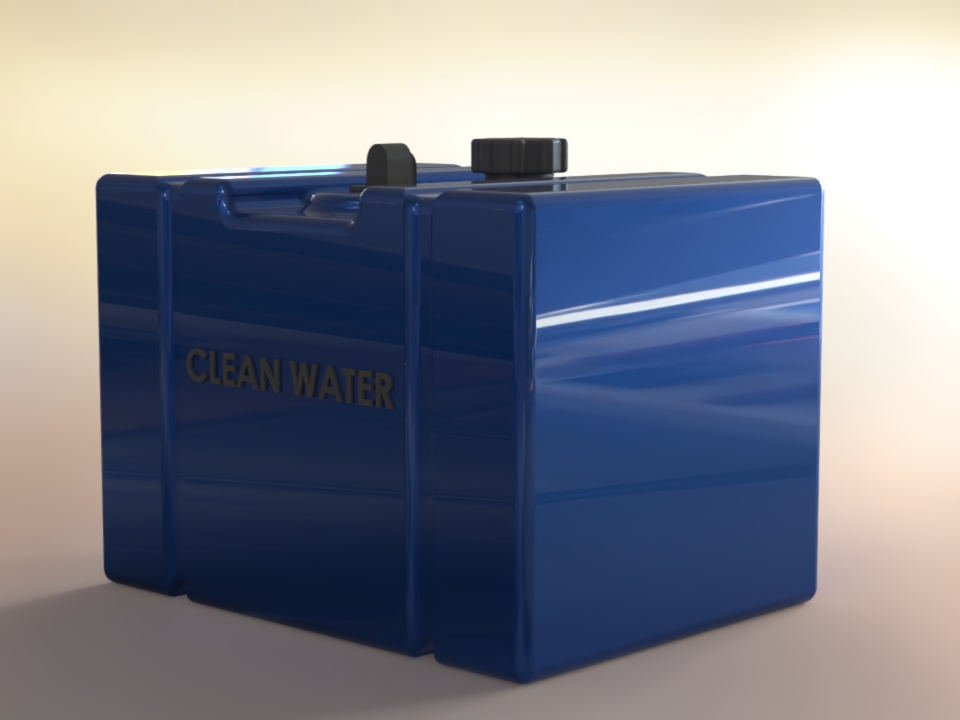

The 3D CAD model represents the tank body with realistic proportions, including features such as inlet and outlet connections, lid or cover, reinforcement ribs, and base support. Built with clean topology and precise geometry, it allows easy scaling, modification, and integration into larger system assemblies.

Key Features

• High-accuracy CAD model of plastic water tank

• Real-scale geometry suitable for design and planning

• Detailed tank body with fittings and structural features

• Clean, editable topology for customization

• Compatible with major CAD and 3D software platforms

Applications

• Water storage system design and layout planning

• Architectural and MEP coordination

• Product design and manufacturing reference

• Simulation and visualization projects

• Technical documentation and presentations

File Formats

• STEP

• IGES

• STL

• SolidWorks / other CAD formats (on request)

Using Plastic Water Tank files improves design accuracy, supports system integration, and ensures clear technical communication across water management and infrastructure projects.
