3D CAD Landing Gear

3D CAD Landing Gear provides a high-accuracy three-dimensional model of aircraft landing gear systems, developed for aerospace engineering, simulation, and technical visualization. The model represents the structural and mechanical components of landing gear assemblies used in fixed-wing aircraft and UAVs, making it suitable for professional aerospace and defense workflows.

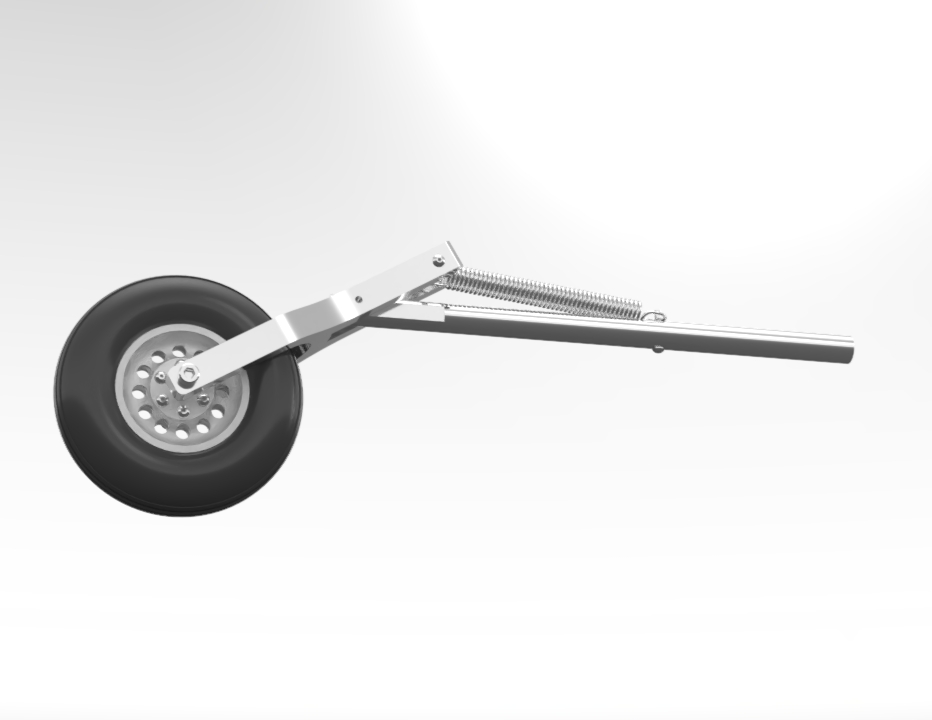

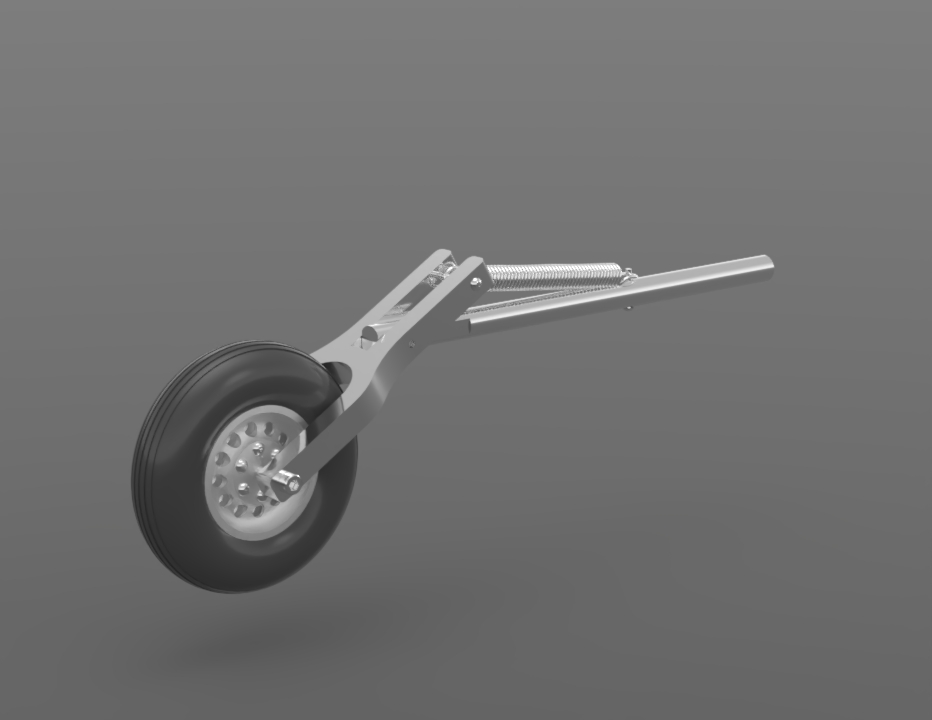

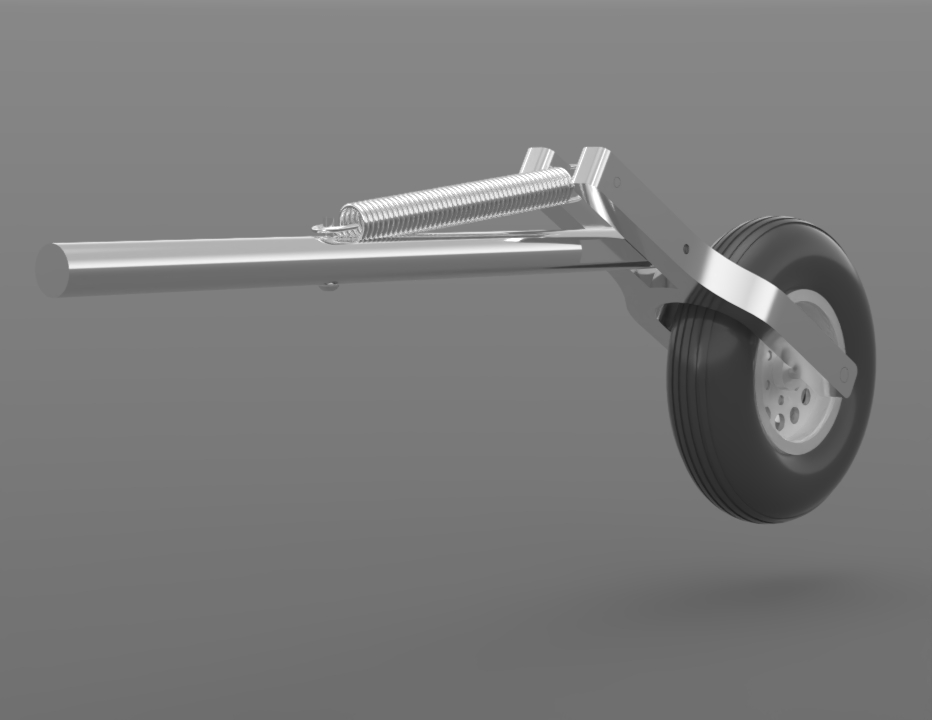

The 3D CAD model includes detailed geometry of major elements such as struts, shock absorbers, wheels, axles, brakes, retraction mechanisms, and mounting points. Built with clean topology and precise proportions, it supports analysis, design integration, and high-quality rendering.

Key Features

• High-accuracy 3D CAD model of aircraft gear

• Real-scale geometry suitable for aerospace reference

• Detailed structural and mechanical components

• Clean, organized part structure for easy modification

• Compatible with major CAD and 3D software platforms

Applications

• Aerospace and aircraft design studies

• Landing gear concept development and integration

• Simulation and virtual prototyping

• Technical training and educational materials

• Visualization and engineering presentations

Using Landing Gear files improves design accuracy, supports mechanical analysis, and ensures reliable integration into aircraft and UAV projects.
