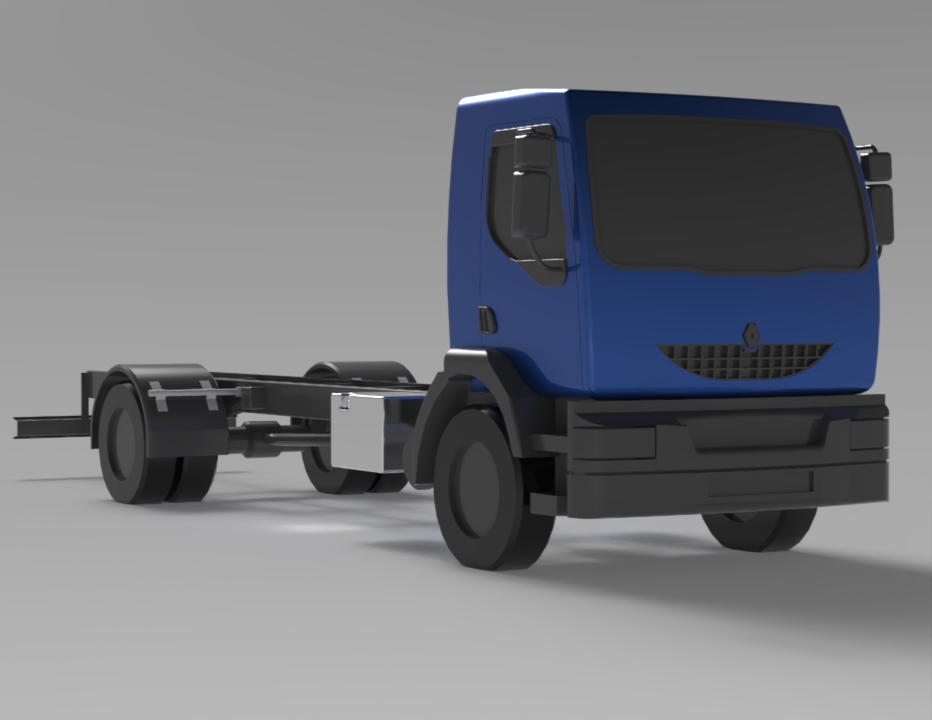

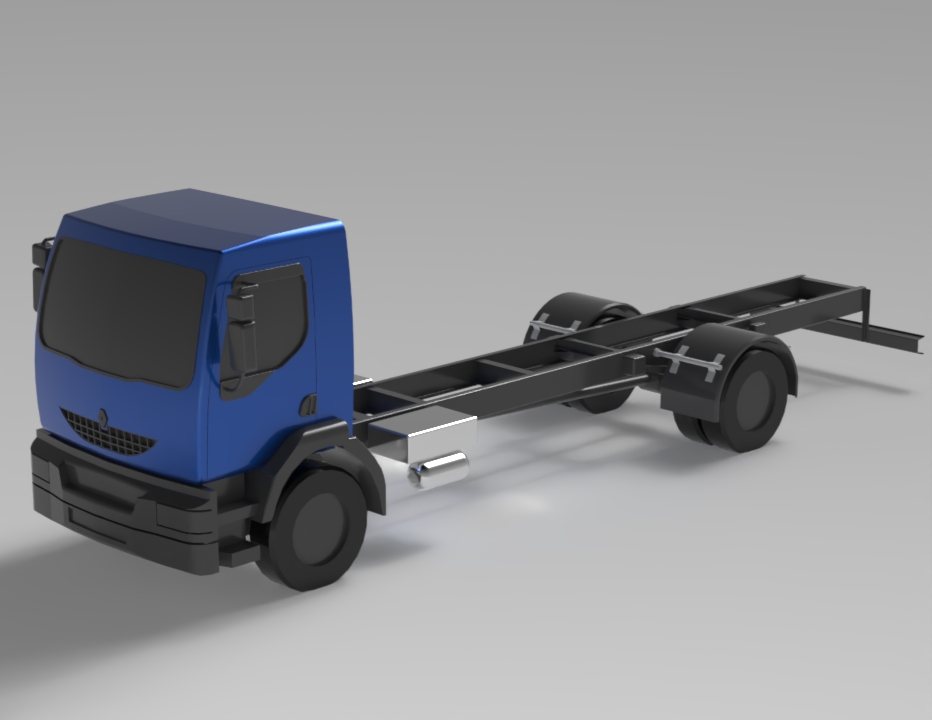

3D Truck Long Chassis Model

3D Truck Long Chassis Model is a detailed digital representation of a long-wheelbase truck chassis designed for heavy-duty and commercial vehicle applications. This 3D model is ideal for automotive engineers, truck body builders, fleet planners, and equipment manufacturers who require accurate chassis geometry for body mounting, structural analysis, and visualization.

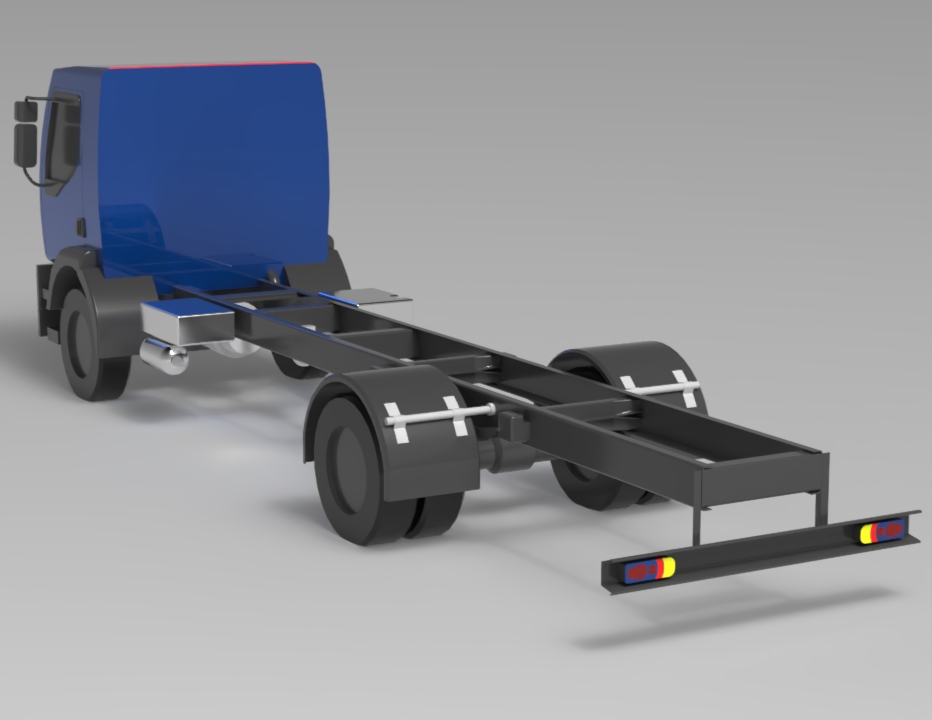

The 3D model typically includes the ladder frame, longitudinal rails, cross members, suspension mounting points, axles, wheels, fuel tank location, battery box, and body mounting interfaces. All elements are modeled to real-world proportions, making the model suitable for engineering reference as well as high-quality visualization.

Key Features

• High-accuracy 3D model of long-wheelbase chassis

• Real-scale dimensions suitable for body and equipment integration

• Includes frame, axles, suspension points, and mounting interfaces

• Editable geometry for customization and body design variants

• Clean topology optimized for CAD, simulation, and rendering

Applications

• Truck body building and upfitting

• Commercial vehicle design and engineering

• Fleet planning and layout studies

• Manufacturing and fabrication reference

• Technical documentation and presentations

File Formats

• STEP

• IGES

• STL

• FBX / OBJ

• Native CAD or vehicle design formats (on request)

Using a Long Chassis Model helps streamline body design, improve structural planning, and deliver professional-grade technical and visual documentation for commercial vehicle projects.
