Fixed-Wing UAV

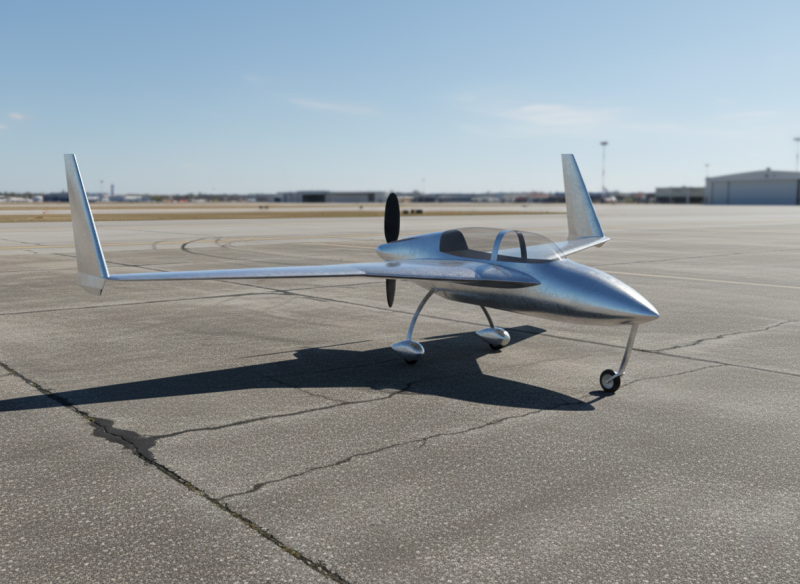

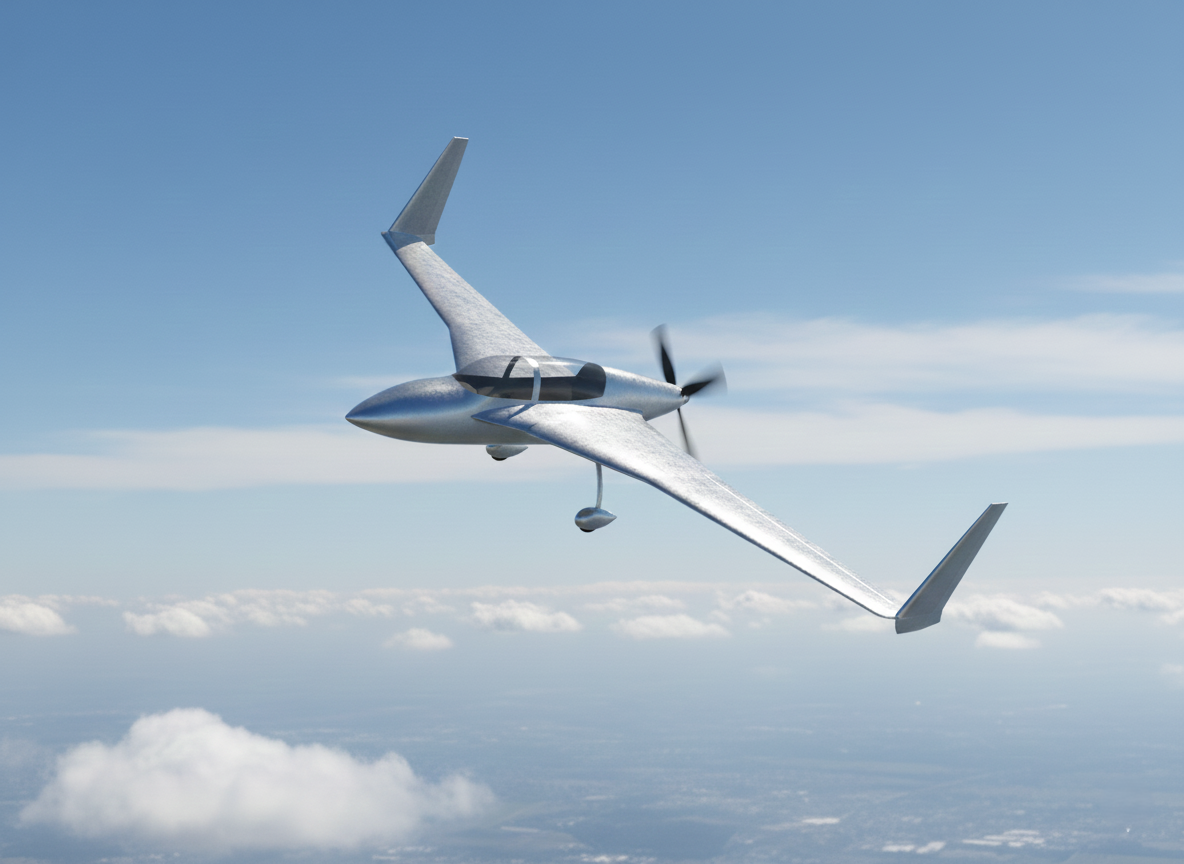

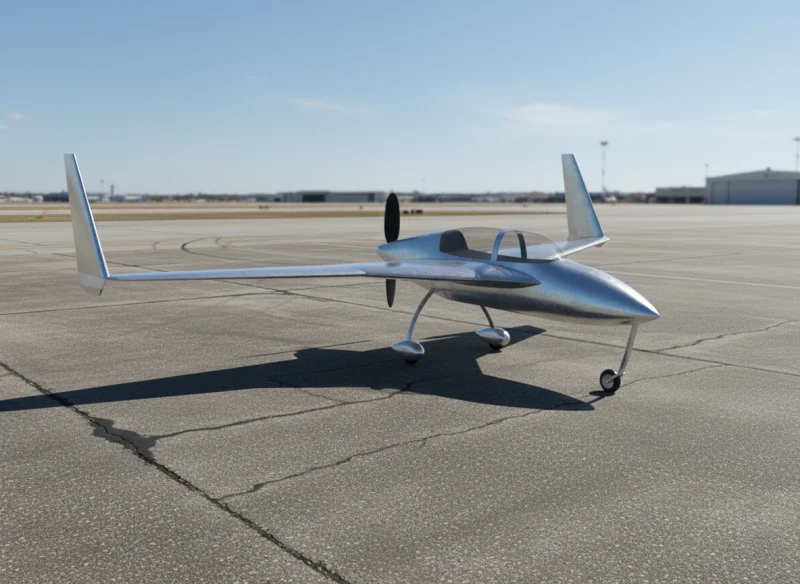

Fixed-Wing UAV (Unmanned Aerial Vehicle) is an aerodynamically efficient unmanned aircraft designed for long-endurance flights, wide-area surveillance, mapping, and data collection missions. These UAV models and drawings are widely used in aerospace engineering, defense applications, environmental monitoring, agriculture, and research projects where range, speed, and flight efficiency are critical.

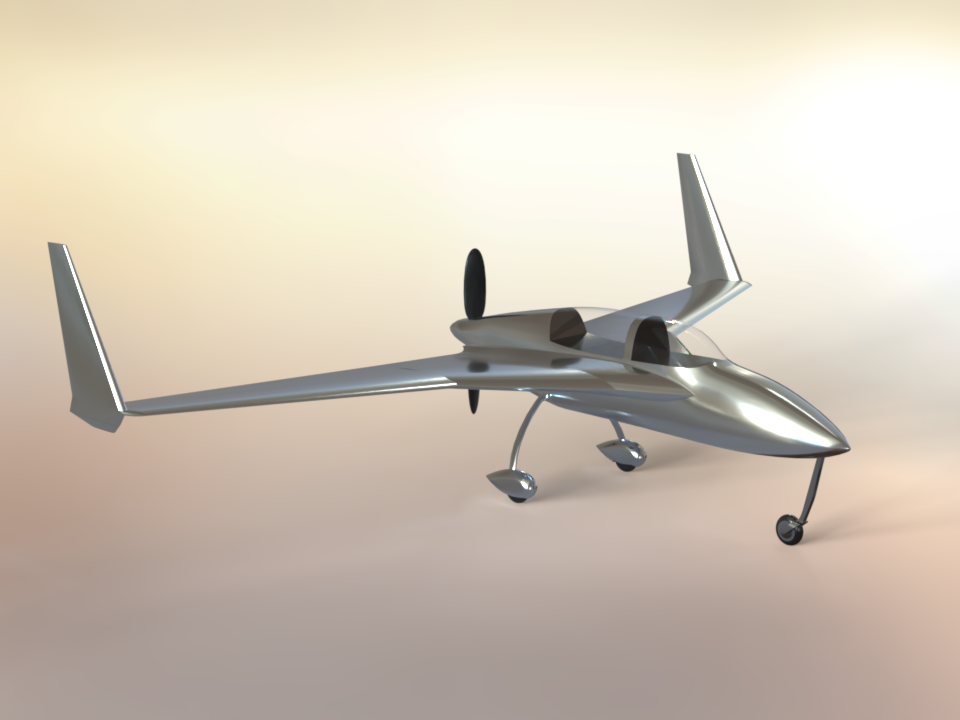

A Fixed-Wing UAV design typically includes the fuselage, main wings with airfoil profiles, tail assembly (horizontal and vertical stabilizers), propulsion system (electric or fuel-based), landing gear or belly skid, and payload integration zones. CAD drawings and 3D models provide accurate geometry and structural proportions suitable for both engineering analysis and high-quality visualization.

Key Features

• Accurate representation of UAV aerodynamics

• Realistic fuselage, wing, and tail geometry

• Suitable for long-range and endurance-based missions

• Editable CAD and 3D model structure for customization

• Clean topology optimized for simulation and visualization

Applications

• Aerial mapping and surveying

• Surveillance and reconnaissance missions

• Agricultural monitoring and precision farming

• Aerospace engineering and UAV development

• Training, simulation, and technical presentations

File Formats

• 2D: DWG, DXF, PDF

• 3D: STEP, IGES, STL, FBX / OBJ

• Native CAD or UAV design formats (on request)

Using Fixed-Wing drawings and 3D models helps improve aerodynamic design accuracy, support payload integration, and deliver professional-grade technical documentation and visual content.
