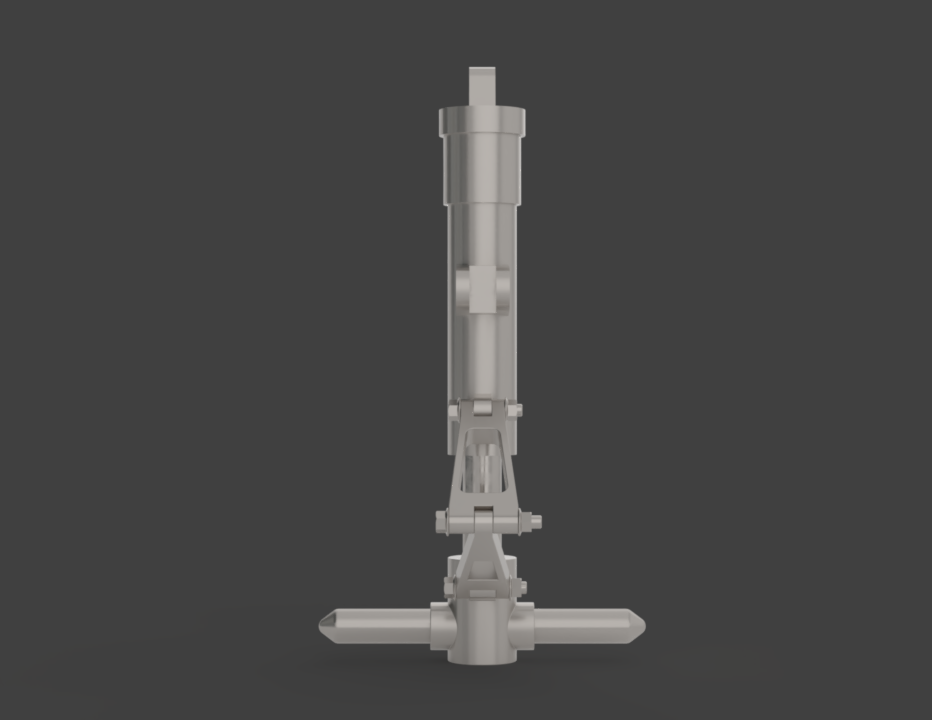

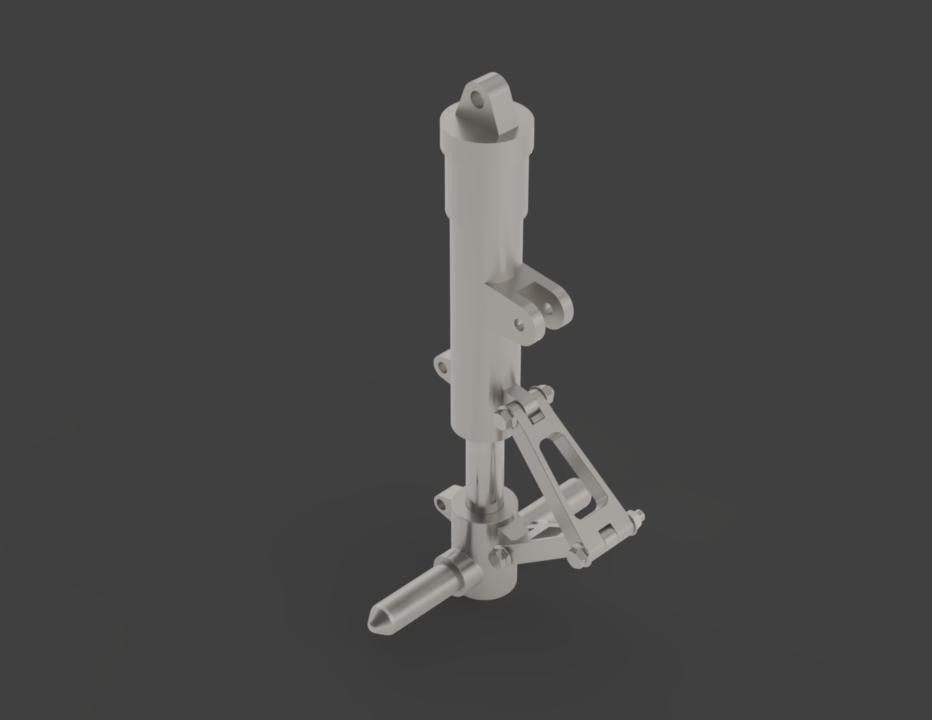

Aircraft Landing Gear

Aircraft Landing Gear refers to the critical structural system that supports an air craft during takeoff, land, and grounding operations. This system is engineered to absorb landing loads, provide stability on the runway, and enable safe taxiing, braking, and parking. Accurate drawings and 3D models of aircraft landing gear are essential for aerospace engineers, manufacturers, MRO organizations, and educational institutions.

Aircraft gear systems typically consist of main gear, nose (or tail) gear, shock absorbers (oleo struts), wheels, tires, brakes, retraction mechanisms, and steering assemblies. Depending on the aircraft type, gear may be fixed or retractable and designed for commercial, military, UAV, or general aviation applications.

Key Features

• High-precision landing gear design

• Load-bearing structural components with realistic geometry

• Includes shock absorption and retraction mechanisms

• Suitable for engineering analysis and technical documentation

• Configurable for different aircraft categories and weight classes

Applications

• Aircraft design and aerospace engineering projects

• Manufacturing and assembly reference

• Maintenance, Repair, and Overhaul (MRO) documentation

• Simulation and structural analysis

• Training and educational use

File Formats (if applicable)

• 2D CAD: DWG, DXF, PDF

• 3D CAD: STEP, IGES, STL

• Native aerospace CAD formats (on request)

Using accurate Landing Gear drawings or models helps improve design reliability, reduce development risks, and ensure compliance with aerospace safety and performance standards.
