Blanching machine

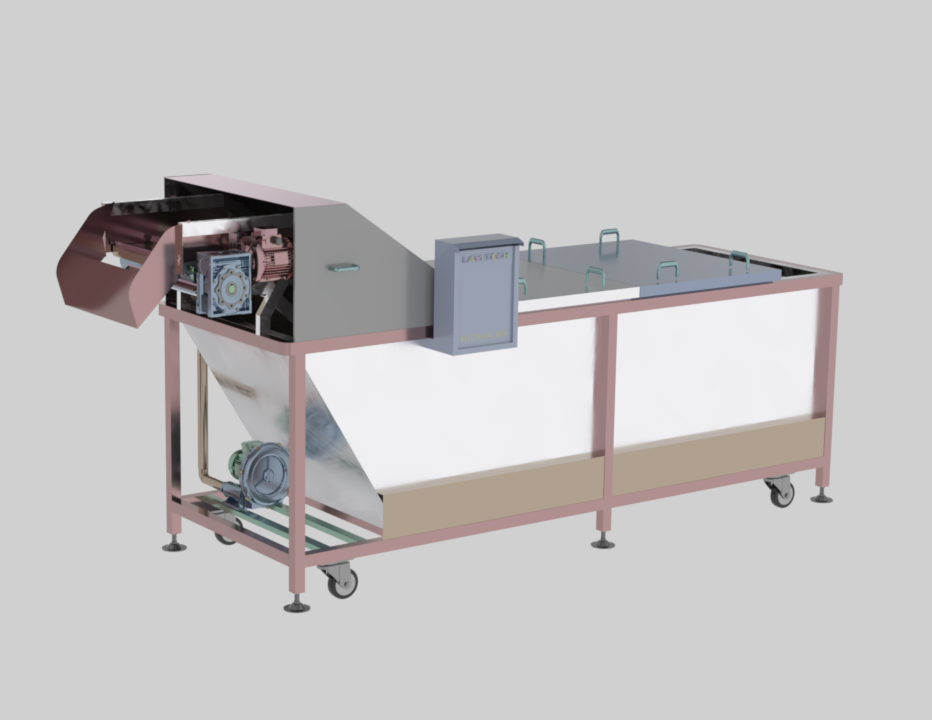

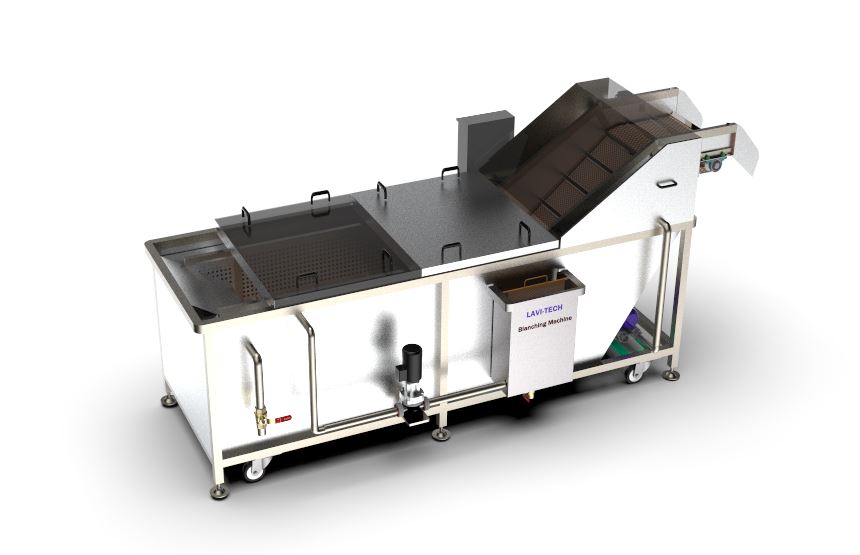

Blanching Machine CAD Model for Food Processing Lines

This blanching machine CAD model represents an industrial blancher for food processing lines. As a result, you can plan a complete vegetable or fruit processing line in 3D.

Food machinery designers, plant engineers and students can use it in layout studies. In addition, the model is free to download.

What Is Included

• 3D CAD model of an industrial blanching machine
• Download package in ZIP format
• Suitable for line layouts and plant design
• Free download for project use

Where You Can Use This Machine Model

• Food processing line layouts
• Factory and plant design
• Machine design studies
• Sales and client presentations

For example, you can combine the blancher with conveyors and coolers in one layout. Also, you can check floor space and access around the machine.

How to Use the Files

First, download and extract the ZIP file. Then open the model in your CAD software. After that, place it in your factory layout and check the connections.

Why Start from a Ready Model?

Modeling every part from scratch takes hours. Instead, you can start from this blanching machine CAD model and spend your time on design decisions. Because the file is ready, your team can test layouts and options faster. In addition, a shared model keeps drawings and schedules consistent across the project. As a result, the project moves from concept to drawings with fewer delays.

However, always compare key dimensions with the final product data before you build. That way, your model stays accurate from design to delivery. If something does not match, our engineers can update the file for you.

Need a Custom Blanching Machine CAD Model?

Our engineers also design food processing machines and sheet metal parts. For instance, we can adapt this blanching machine CAD model to your capacity or line width. See our engineering services or request a quote. You can also explore the Mechanical & Industrial Library.
