Horizontal Industrial Storage Tank

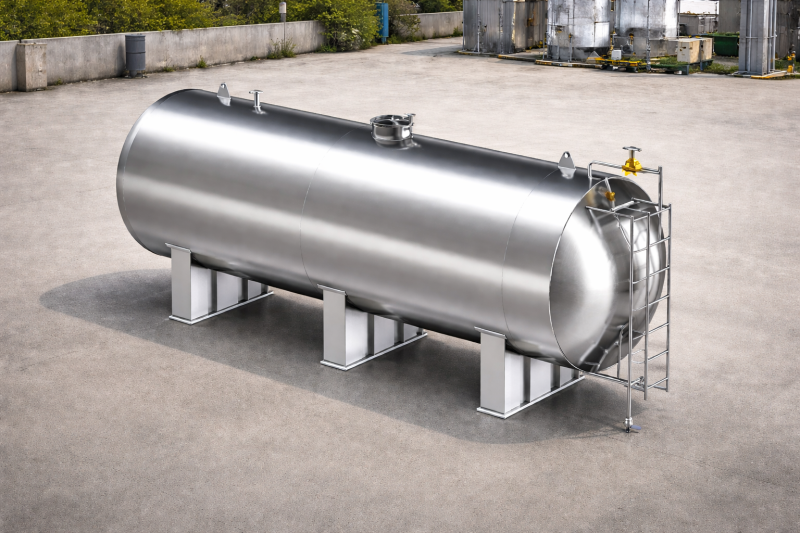

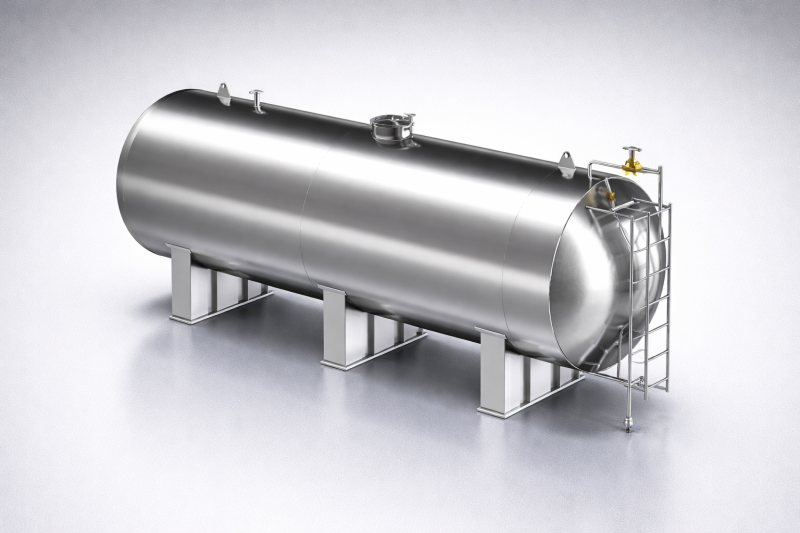

This is a heavy-duty cylindrical vessel designed for the safe storage of liquids in industrial, energy, and process-engineering environments. Mounted on reinforced support saddles and equipped with integrated access and safety features, this tank configuration is optimized for ground-level installation, durability, and operational reliability.

The design includes a smooth cylindrical shell with dished ends, top-mounted nozzles and fittings, and an external access ladder with safety cage for inspection and maintenance. The structure is suitable for realistic engineering visualization, layout planning, and technical documentation, offering accurate proportions and clean surface continuity.

This model is ideal for professional use in plant design, mechanical engineering studies, and high-end industrial rendering.

Key Features

• Horizontal cylindrical tank with dished end caps

• Reinforced support saddles for stable ground installation

• Top-mounted nozzles, vents, and access fittings

• Integrated ladder and safety cage for maintenance access

• Clean, continuous surfaces suitable for realistic rendering

• Industrial-grade geometry optimized for CAD and visualization

Applications

• Industrial liquid storage (water, fuel, chemicals)

• Energy and power generation facilities

• Process and chemical engineering plants

• Plant layout and site planning

• Engineering visualization and simulation

• Technical presentations and industrial design portfolios

File Formats

SolidWorks: SLDASM

Our Engineering team is ready to customize any design.

Find more related products to download for free on Shop section.
