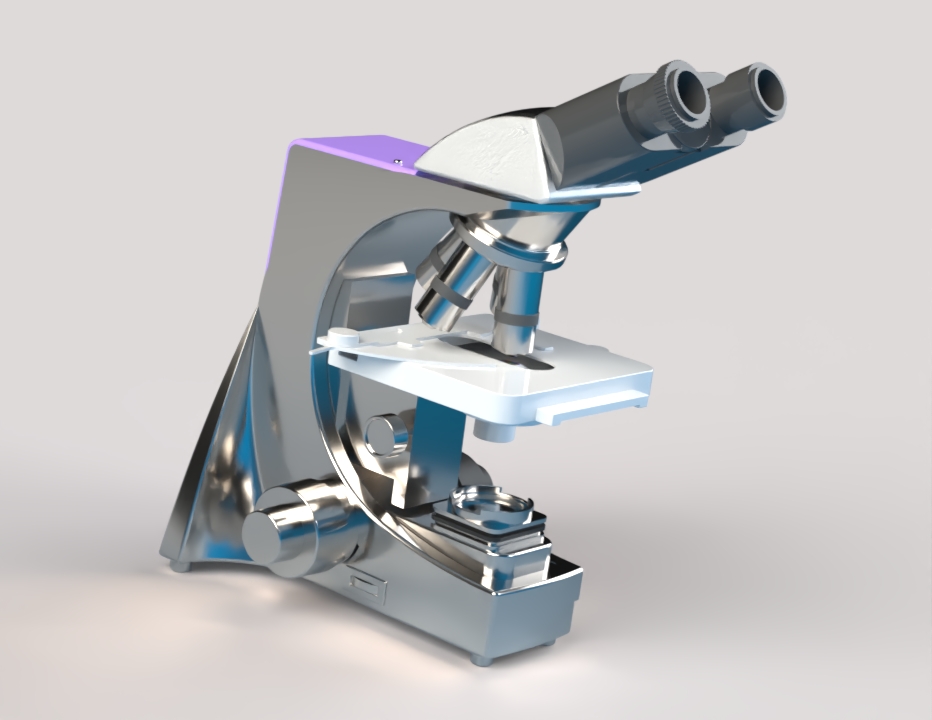

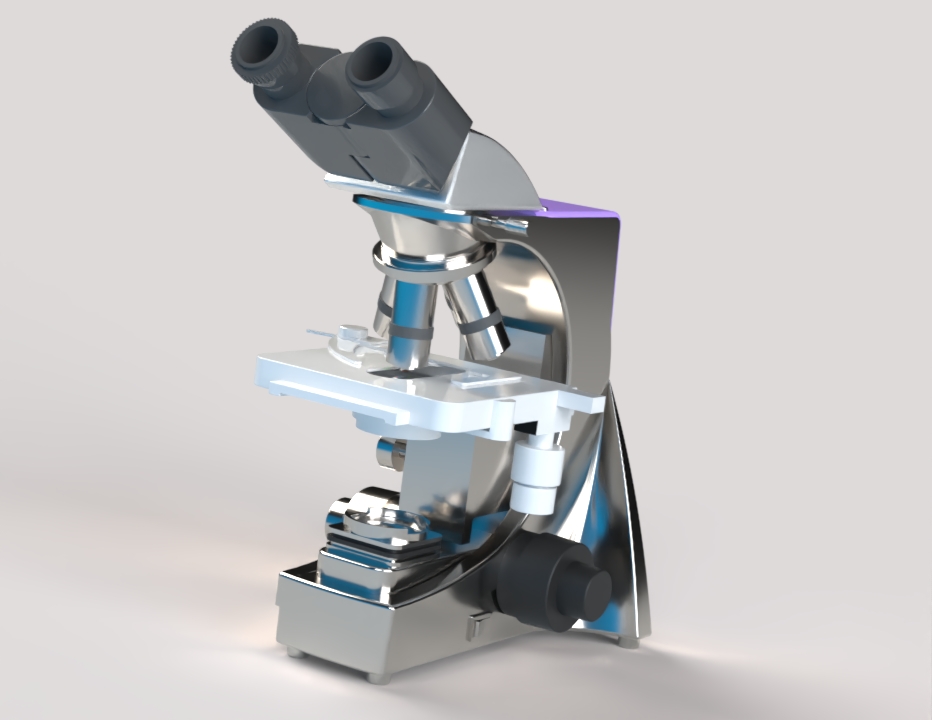

Microscope – CAD Models and Specifications

Overview

The Microscope CAD Models offer precise 2D and 3D representations for educational, laboratory, and industrial use. These models support technical drawings, BIM workflows, and fabrication layouts, making them ideal for engineers, designers, and students working in scientific or medical projects.

Technical Specifications

Dimensions

• Compact Student Microscope: 150 × 120 × 300 mm (W × D × H)

• Standard Laboratory Microscope: 200 × 200 × 400 mm (W × D × H)

• Advanced Research Microscope: 250 × 250 × 500 mm (W × D × H)

• Parametric Models: Scalable for project-specific needs

Materials

• Frame: Powder-coated steel or aluminum

• Optical Components: Glass objectives and eyepieces

• Stage: Mechanical XY stage with specimen holder

• Knobs: Precision focus (coarse/fine) included in CAD layout

Functional Features

• Optics: Modeled for 4×, 10×, 40×, and 100× objectives

• Illumination: CAD layouts include LED/halogen lighting integration

• Ergonomics: Adjustable eyepiece angle and stage height

• Accessories: Probe holders, camera adapters, and storage compartments

CAD Formats Available

• DWG: 2D technical drawings

• RVT: Revit Family for BIM integration

• STEP/IGES: Mechanical assemblies and fabrication

• STL: Prototyping and 3D printing

Applications

• Education: Schools, universities, and training labs

• Medical: Pathology, diagnostics, and clinical labs

• Research & Industry: R&D centers, manufacturing inspection, and biotech facilities

Key Features

• High-precision CAD models with full dimensional accuracy

• Parametric design for flexible configurations

• BIM-compatible for architectural and laboratory layouts

• Detailed structural and functional components modeled
