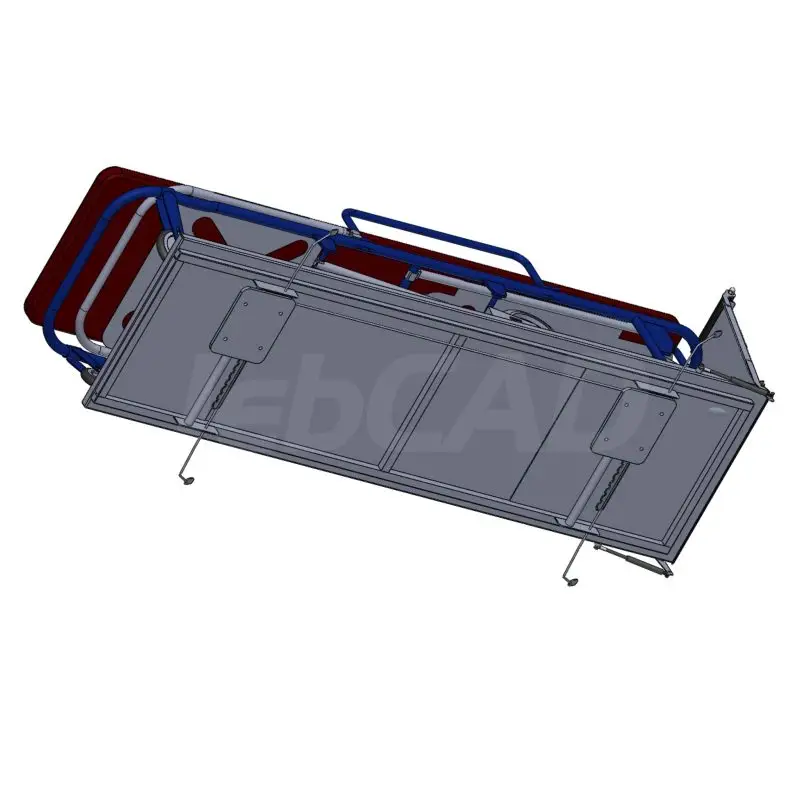

Patient Transport Stretcher – 2D

Patient Transport Stretcher – 2D

1. Overview

This document outlines the 2D design layout of a Patient Transport Stretcher intended for use in ambulances and medical facilities. The design includes structural components, wheel assemblies, folding mechanisms, and patient restraint integration.

2. Design Purpose

• Application: Ambulance and Hospital Patient Transport
• Functionality: Manual handling, collapsible frame, secure patient movement
• Mount Compatibility: Standard ambulance stretcher locking system

3. Drawing Content Summary

• View Types Included:
  • Top View
  • Side View
  • Front View
  • Folded Configuration
• Key Features in Drawing:
  • Aluminum or stainless steel frame
  • Telescoping leg mechanism
  • Four caster wheels with brake locks
  • Safety belts (3-point or 4-point)
  • Patient platform with mattress
  • Adjustable backrest section
  • Side railings (foldable or fixed)

4. Drawing Formats

• 2D CAD Formats:
  • AutoCAD (.dwg, .dxf)
  • PDF Technical Sheets (A3 or A2 size)
• Additional Exports (if needed):
  • STEP (.stp) for 3D conversion
  • SVG/DXF for CNC or laser cutting

5. Standards & Compliance

• Applicable Standards:
  • EN 1865 – Patient handling equipment
  • ISO 10535 – Hoists and transport aids
• Safety Considerations:
  • Load capacity [Insert kg]
  • Secure restraint positions
  • Safe maneuvering clearances

6. Notes

• All dimensions in mm unless stated otherwise.
• Final fabrication to follow material specifications.
• Drawing to be reviewed before production or procurement.
