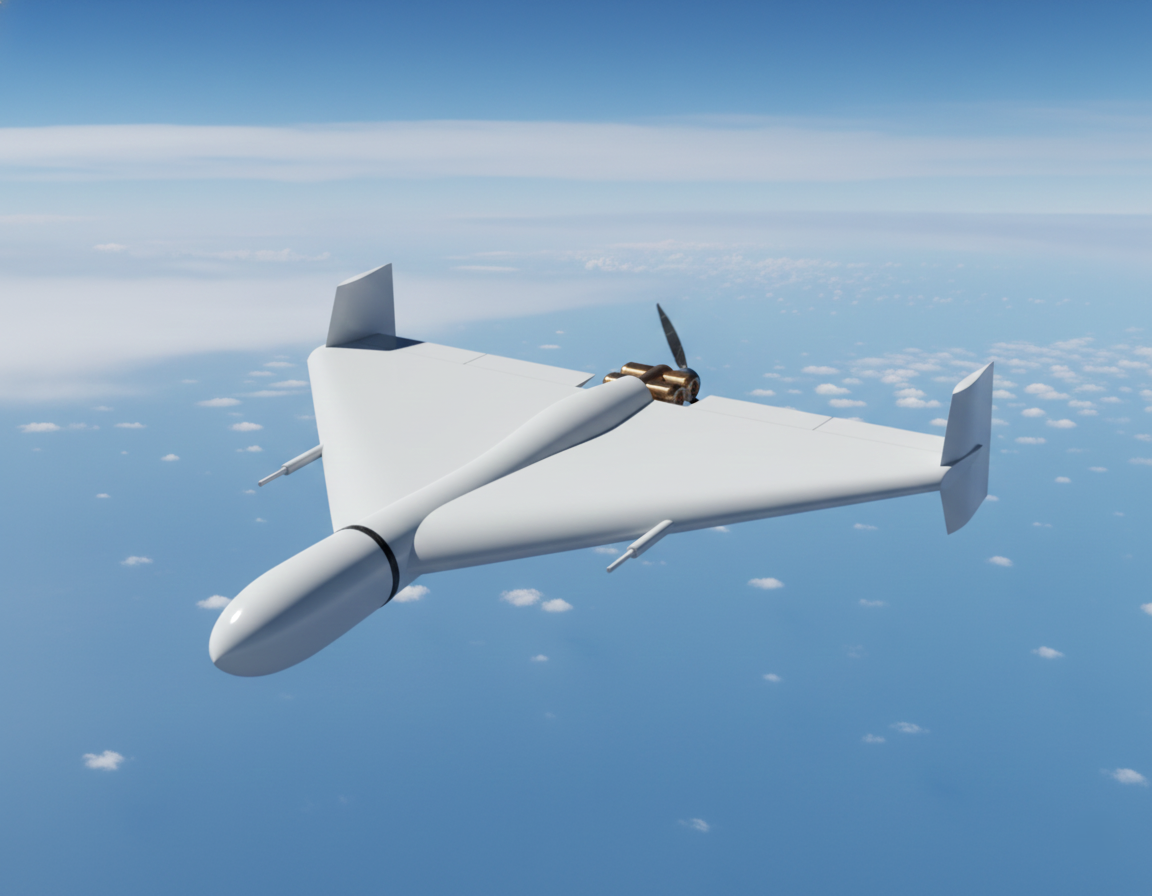

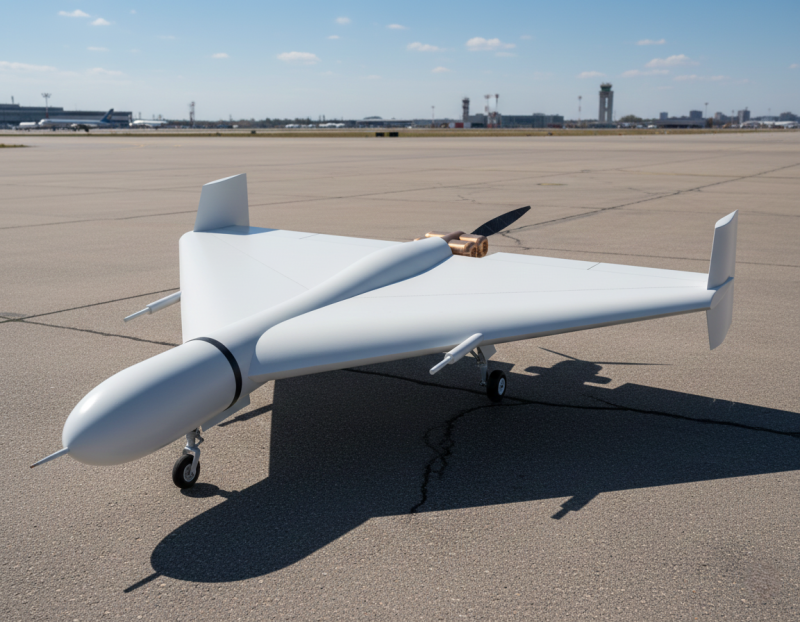

Pylon UAV

Pylon UAV is an unmanned aerial vehicle configuration designed to carry external payloads mounted on pylons beneath the wings or fuselage. Pylon-equipped UAVs are widely used in aerospace engineering, defense, surveillance, research, and testing applications where modular payload integration, sensors, or mission-specific equipment is required.

A Pylon UAV design typically includes a fixed-wing airframe, reinforced wing or fuselage pylons, payload hardpoints, propulsion system, landing gear, and avionics integration zones. CAD drawings and 3D models of the Pylon UAV provide accurate geometry, structural layout, and mounting interfaces, making them suitable for engineering analysis, simulation, and professional visualization.

Key Features

• Accurate representation of UAV airframe with external pylons

• Reinforced payload mounting and hardpoint geometry

• Modular design suitable for sensors, pods, or equipment

• Editable CAD and 3D model structure for customization

• Clean topology optimized for simulation and visualization

Applications

• Aerospace and UAV system design

• Surveillance and reconnaissance missions

• Payload integration and testing

• Defense and research projects

• Training, simulation, and technical presentations

File Formats

• 2D: DWG, DXF, PDF

• 3D: STEP, IGES, STL, FBX / OBJ

• Native CAD or aerospace design formats (on request)

Using Pylon drawings and 3D models helps improve payload integration accuracy, supports structural and aerodynamic studies, and delivers professional-grade aerospace documentation and visual content.
