3D DC Brushless Motor Model

3D DC Brushless Motor Model is a detailed digital representation of a BLDC (Brushless DC) motor used in electric vehicles, drones, robotics, HVAC systems, medical devices, and industrial automation. This 3D model is ideal for mechanical engineers, product designers, electronics developers, and visualization professionals who require accurate motor geometry for integration, simulation, and presentation.

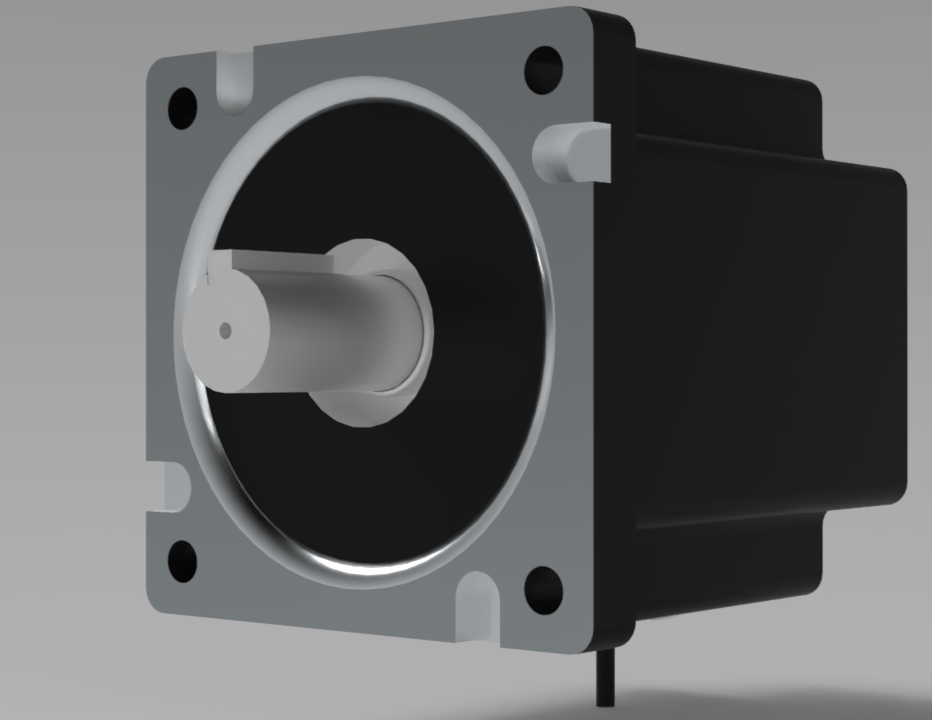

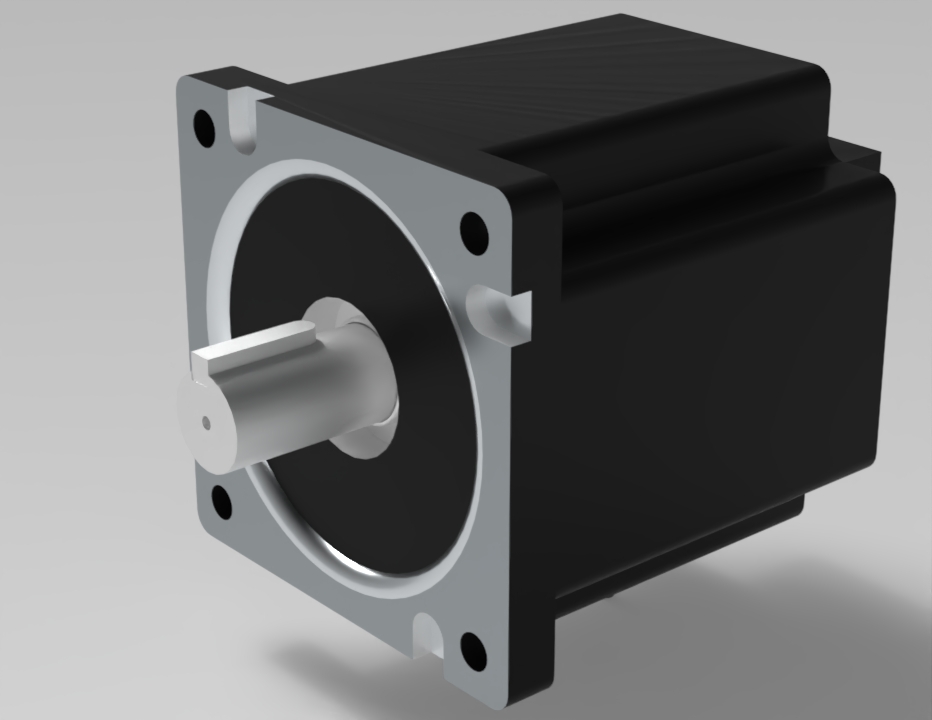

The 3D model typically includes the motor housing, rotor–stator enclosure, shaft, mounting flange, cooling vents or fins, wiring terminals, and fastening features. Proportions and interface dimensions are modeled to reflect real-world DC brushless motor designs, making the model suitable for both engineering reference and high-quality visualization.

Key Features

• High-accuracy 3D model of DC brushless (BLDC) motors

• Realistic proportions suitable for mechanical and electrical integration

• Editable geometry for customization and variant development

• Clean topology optimized for CAD, simulation, and rendering

• Suitable for engineering design, training, and visualization

Applications

• Electric vehicles and e-mobility systems

• Drone, UAV, and robotics design

• Industrial automation and motion control

• Medical and HVAC equipment

• Product visualization and technical presentations

File Formats

• STEP

• IGES

• STL

• FBX / OBJ

• Native CAD or 3D software formats (on request)

Using a Motor Model helps streamline motor integration, improve design accuracy, and deliver professional-quality technical and visual documentation.
