3D Part Ball Screw Model

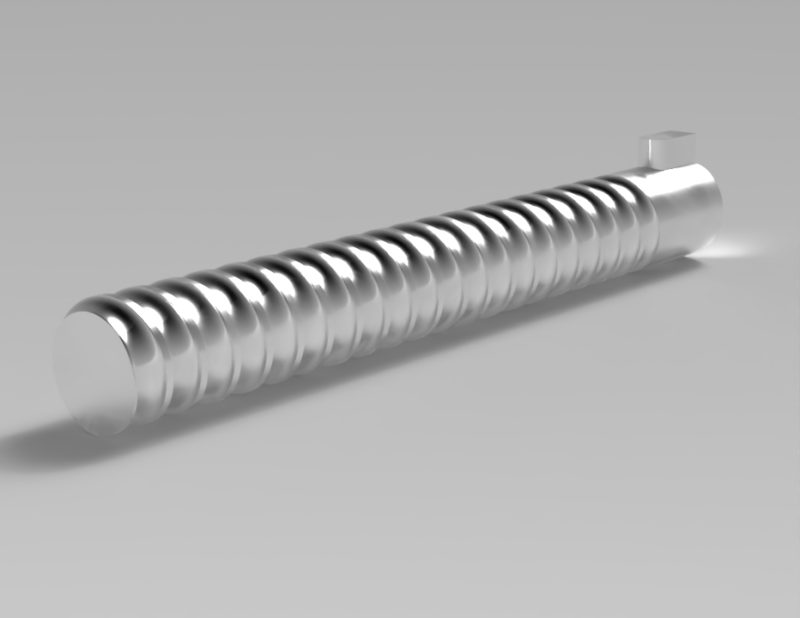

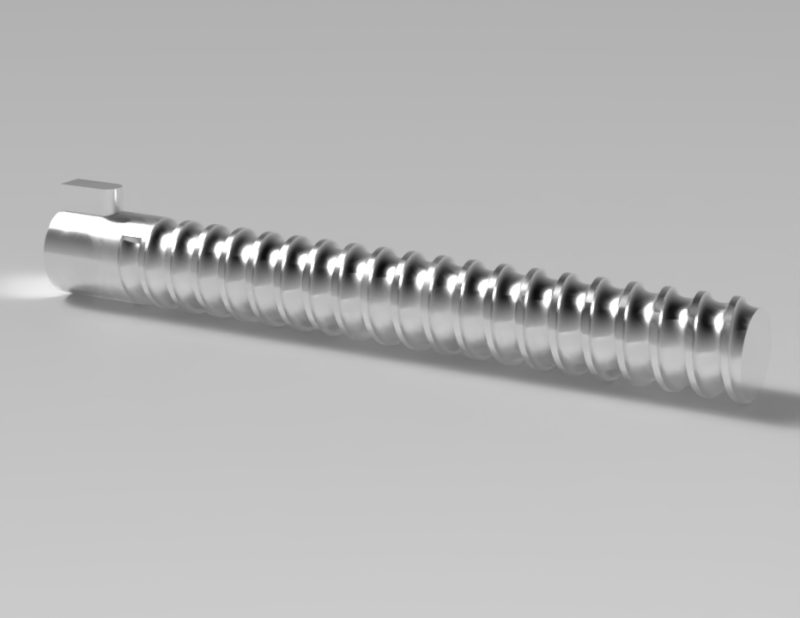

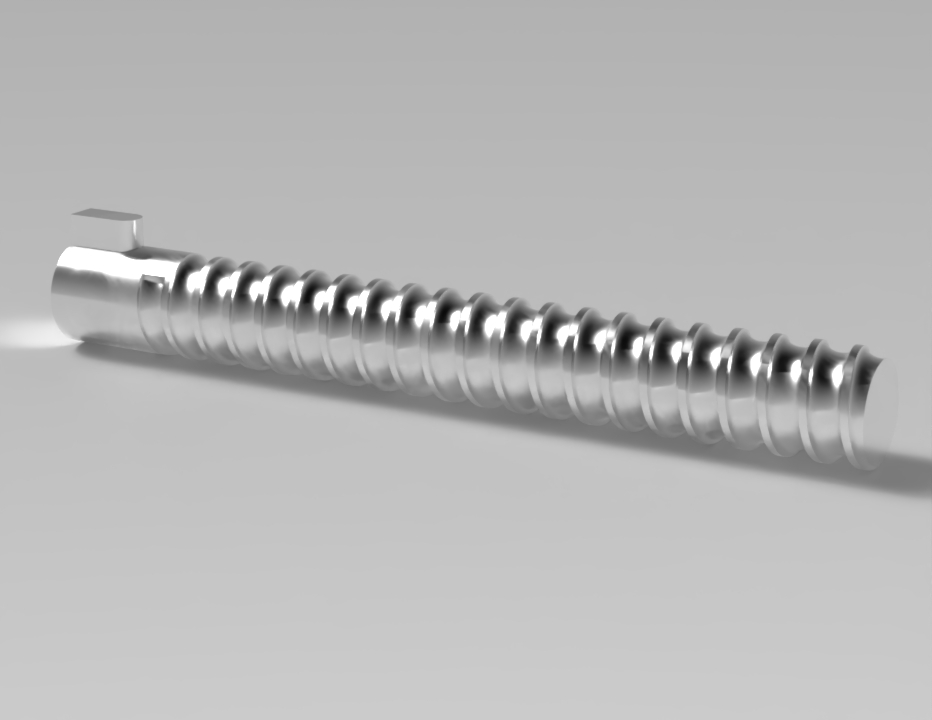

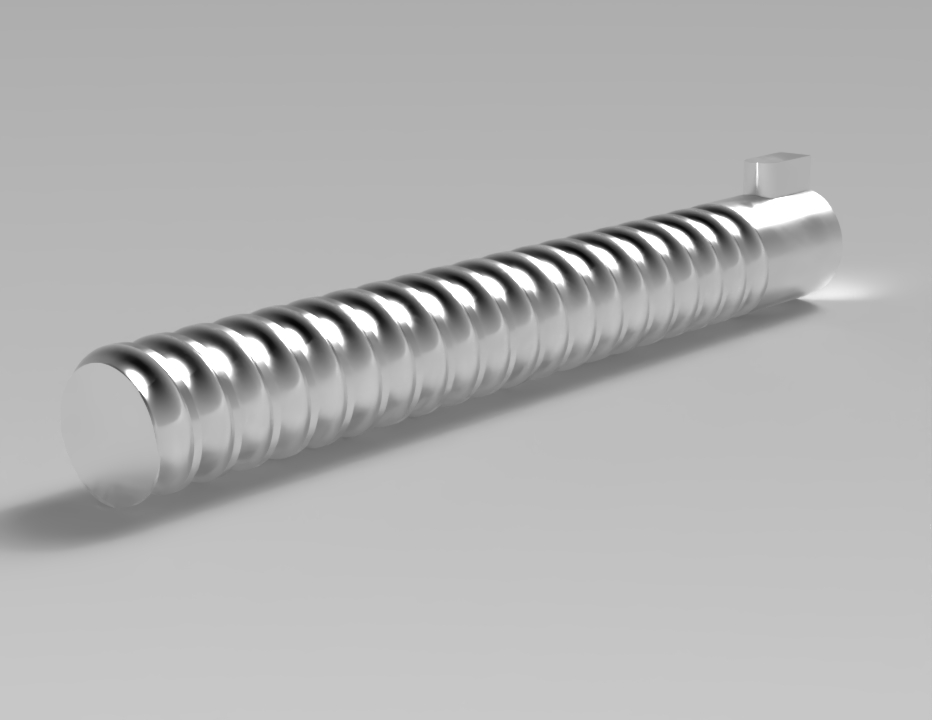

3D Part Ball Screw Model is a precise digital representation of a ball screw component used in high-accuracy linear motion systems. This model is widely applied in CNC machines, industrial automation, robotics, semiconductor equipment, and precision positioning systems. It is ideal for mechanical engineers, machine designers, and manufacturers who need reliable geometry for design integration, motion analysis, and technical visualization.

The 3D model typically includes the ball screw shaft with helical raceways, ball nut assembly, recirculating ball channels, end machining, and mounting interfaces. The geometry reflects real-world ball screw construction, making the model suitable for both engineering reference and realistic rendering.

Key Features

• High-precision of ball screw parts

• Accurate helical thread and nut assembly detailing

• Editable geometry for size, lead, and length customization

• Clean topology optimized for CAD, simulation, and rendering

• Suitable for precision mechanical and automation projects

Applications

• CNC machines and machining centers

• Linear motion and positioning systems

• Industrial automation and robotics

• Product visualization and exploded-view drawings

• Engineering education and technical documentation

File Formats

• STEP

• IGES

• STL

• FBX / OBJ

• Native CAD or 3D software formats (on request)

Using a Screw Part Model helps ensure accurate linear motion design, supports system validation, and delivers professional-quality mechanical documentation and visuals.
