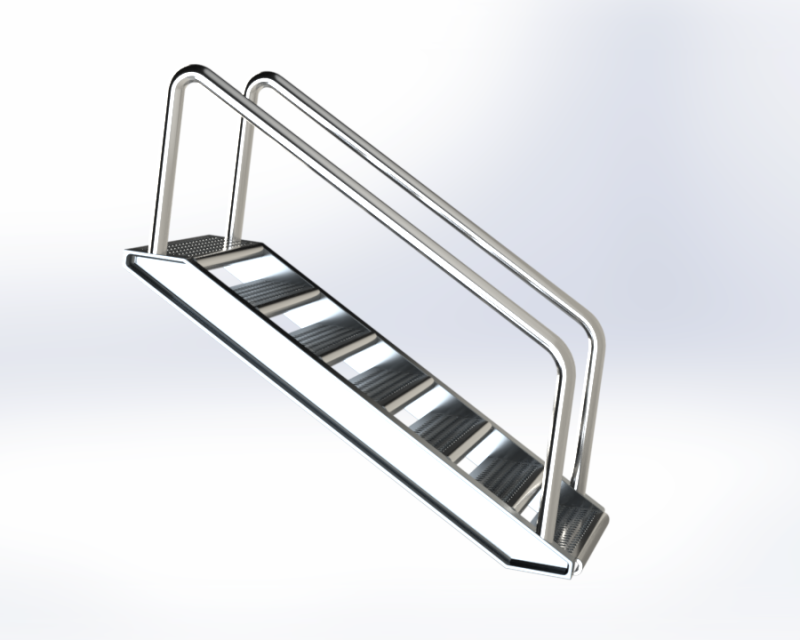

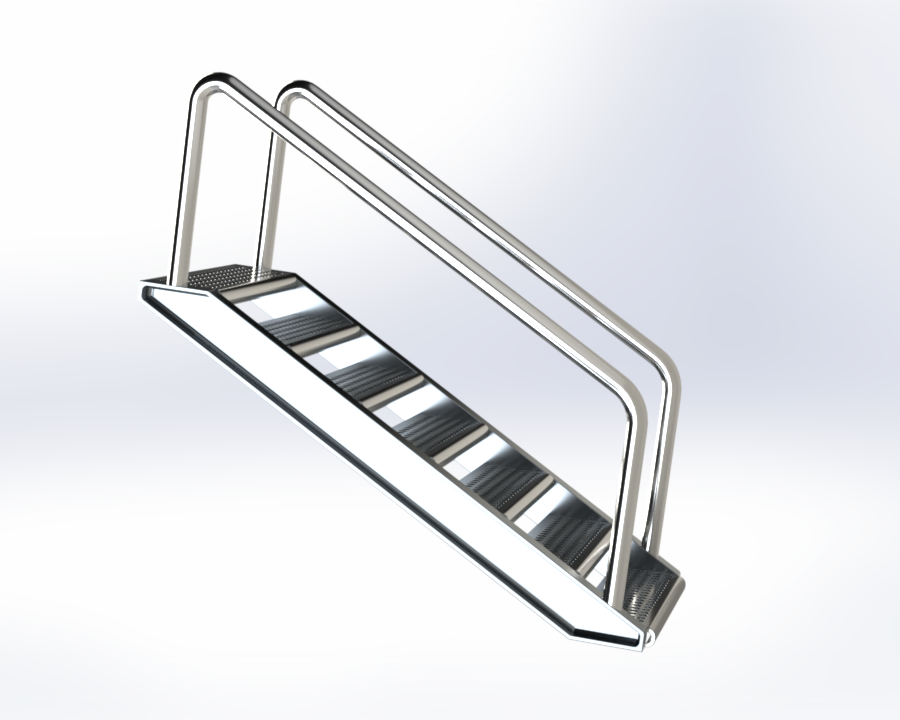

Aluminum Ladder – 3D CAD Model

The Aluminum Ladder 3D CAD model is a lightweight and durable design suitable for industrial, construction, and residential applications. Engineered with a strong aluminum frame, this model offers a realistic representation of a standard ladder used for maintenance, installation, and access tasks.

With clean geometry and accurate proportions, the model is ideal for mechanical design, safety planning, and architectural visualization projects. Its parametric structure allows easy customization of height, step count, and spacing.

Technical Datasheet – Aluminum Ladder

General Specifications

• Component Type: Aluminum

• Category: Access Equipment / Industrial Tool

• Material: Aluminum Alloy (6061 / 6063 typical)

• Design Type: Straight / Extension (configurable)

Dimensions (Typical – Customizable)

• Height: 1.5 m – 6 m

• Width: 300 – 500 mm

• Step Spacing: 250 – 300 mm

• Number of Steps: 5 – 20

• Load Capacity: 100 – 150 kg

Features

• Lightweight and corrosion-resistant structure

• Anti-slip steps

• Reinforced side rails

• Clean and parametric CAD geometry

• Suitable for indoor and outdoor use

File Formats

• SLDPRT

• STEP

• IGES

• DWG (2D optional)

Applications

• Construction and maintenance work

• Industrial facility access

• Home and office use

• Safety and training simulations

• CAD visualization and design projects

Search Shop section to download more related items for free.
