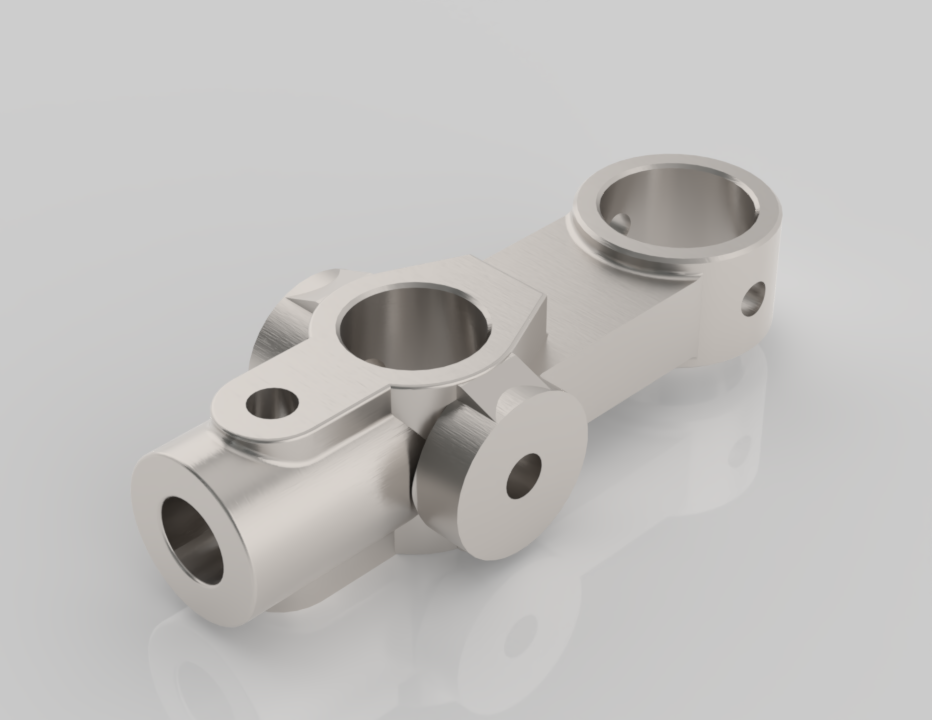

Shaft Coupling – 3D CAD Model

The Shaft Coupling 3D CAD model is a precision mechanical component designed to connect two rotating shafts for efficient power transmission. This model represents a standard coupling used in industrial machinery, ensuring alignment, torque transfer, and vibration control.

Designed with accurate geometry and clean parametric structure, the model is suitable for mechanical design, assembly simulation, and manufacturing preparation. It can be easily customized to match different shaft diameters, torque requirements, and coupling types.

Technical Datasheet – Shaft Coupling

General Specifications

• Component Type: Coupling

• Category: Power Transmission Component

• Coupling Types: Rigid, Flexible (configurable)

• Material Options: Steel, Stainless Steel, Aluminum, Cast Iron

Dimensional Parameters (Customizable)

• Shaft Diameter: 6 mm – 100 mm

• Outer Diameter: 20 mm – 200 mm

• Length: 30 mm – 150 mm

• Keyway Size: Standard metric/imperial

• Bore Type: Solid / Split / Keyed

Features

• Accurate shaft alignment interface

• High torque transmission capability

• Optional flexible element for vibration damping

• Clean and parametric CAD geometry

• Suitable for CNC machining and production

File Formats

• SLDPRT

• SLDASM

• STEP

• IGES

• DWG (2D optional)

Applications

• Industrial machinery

• Motor and gearbox connections

• Conveyor systems

• Pump and compressor assemblies

• Mechanical engineering projects
