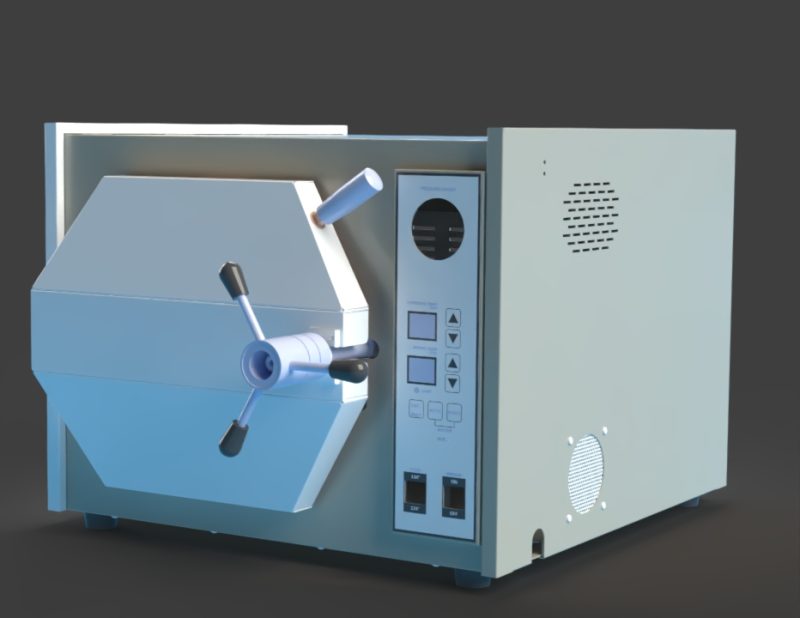

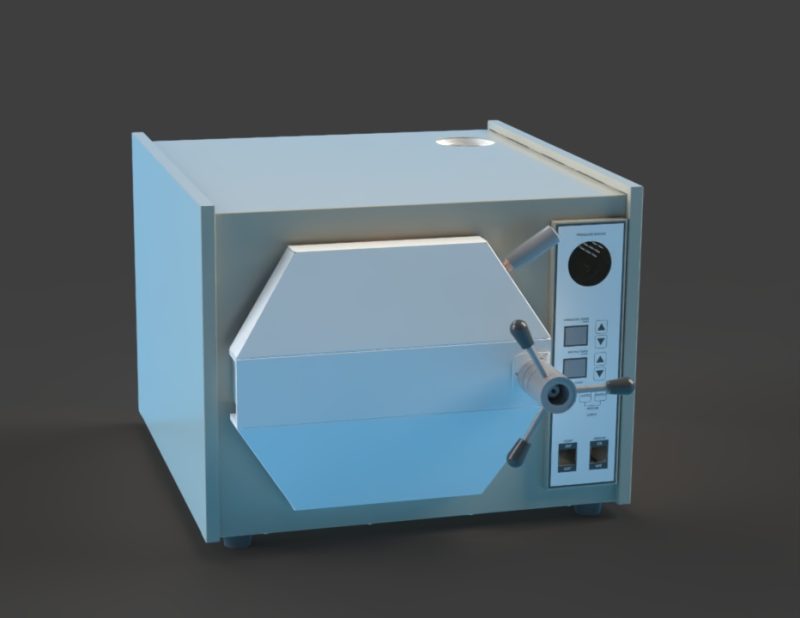

Autoclave Sterilizer – CAD Models and Technical Specifications

Product Overview

The Autoclave Sterilizer CAD Models provide highly detailed 2D and 3D representations for engineers, architects, and students. Designed for medical, laboratory, and industrial applications, these models support precise planning, fabrication, and integration within healthcare and research facilities.

Technical Specifications

Dimensions

• Small Laboratory Unit: Width 500 mm, Depth 600 mm, Height 800 mm

• Medium Healthcare Unit: Width 800 mm, Depth 800 mm, Height 1200 mm

• Large Industrial Unit: Width 1200 mm, Depth 1000 mm, Height 1800 mm

• Parametric CAD Files: Allow resizing for custom requirements

Materials & Construction

• Body: Stainless steel with corrosion-resistant coating

• Door: High-pressure seal with locking mechanism

• Chamber: Polished stainless steel for optimal sterilization efficiency

• Control Panel: Digital or analog interface included in CAD layouts

Functional Features

• Sterilization Modes: Steam, pre-vacuum, and gravity displacement

• Electrical & Mechanical Layout: Integrated CAD schematics for heating elements, water inlet/outlet, and safety systems

• Safety Features: Pressure relief valves, temperature sensors, and automatic shutdown modeled for compliance

CAD Formats Available

• DWG (2D technical drawings)

• RVT (Revit Family for BIM integration)

• STEP/IGES (Mechanical assembly and fabrication)

• STL (3D printing and prototyping)

Key Features

• High-Precision CAD Models for accurate mechanical, electrical, and structural integration

• Parametric Design for scalable sterilizer dimensions and configurations

• BIM Compatible for seamless workflow integration

• Detailed Functional Layouts including chamber, control systems, and safety mechanisms.
