FN Minimi / M249 – Light Machine Gun CAD Model

General Description:

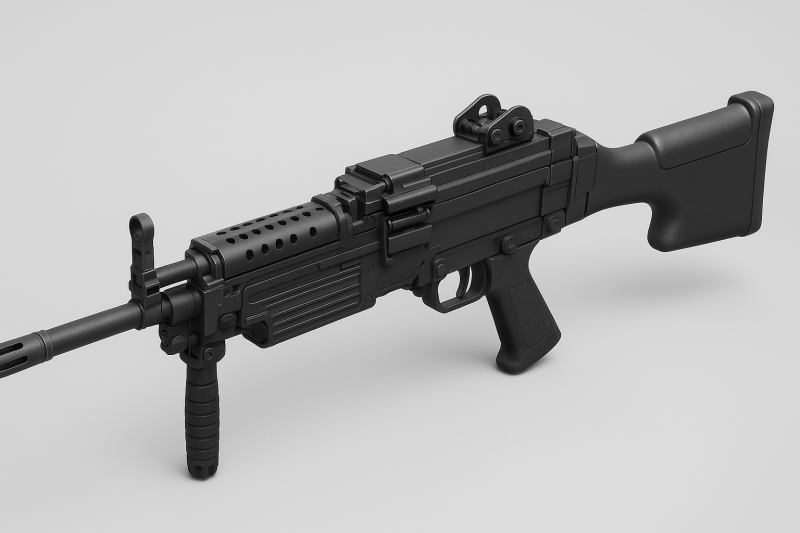

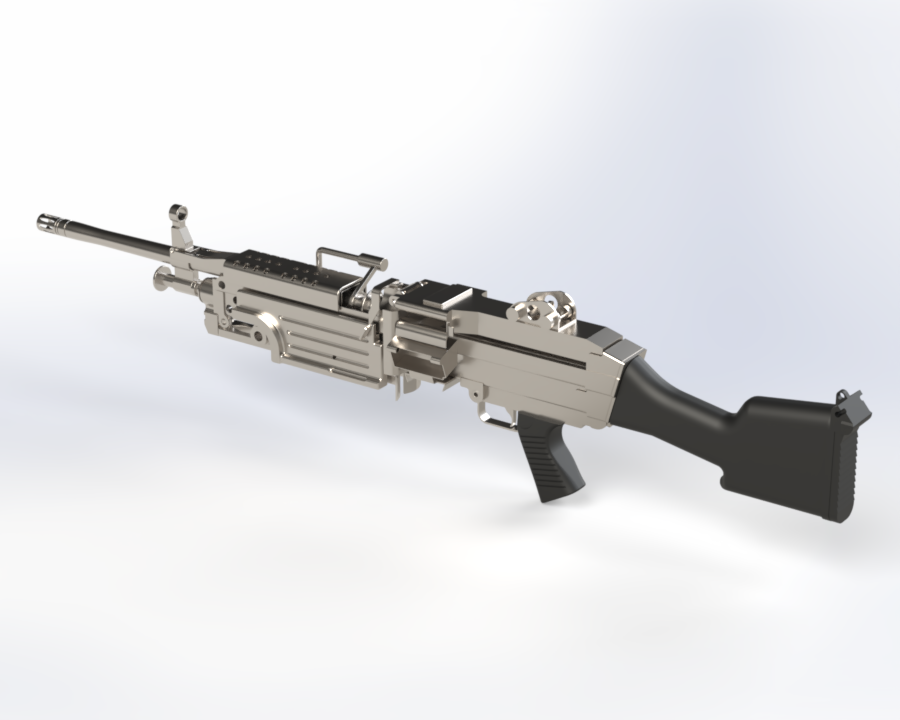

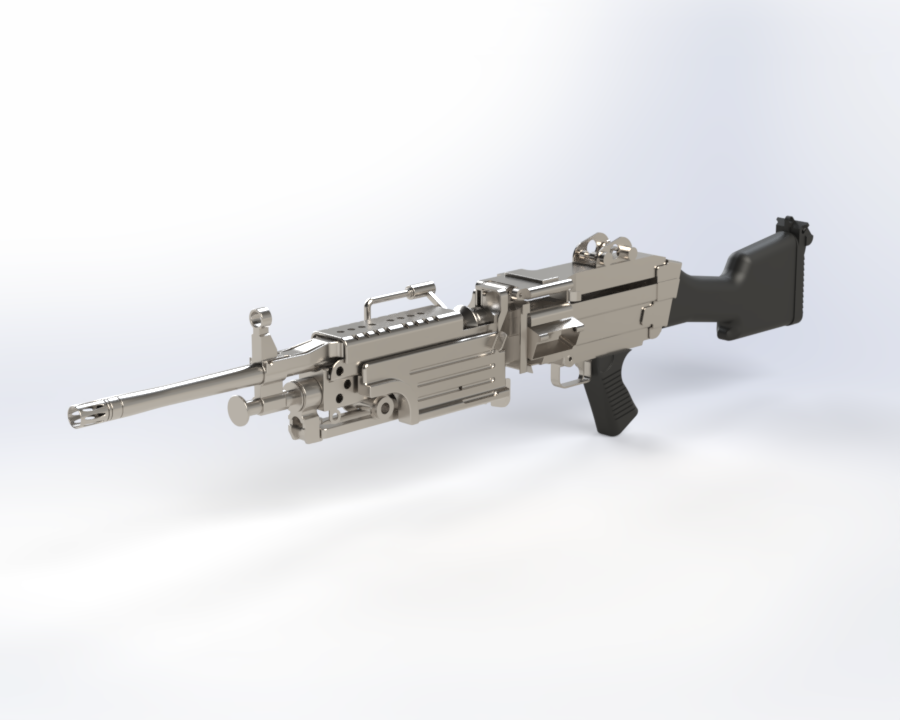

The FN Minimi, designated as the M249 in U.S. service, is a 5.56 × 45mm NATO light machine gun (LMG) widely used in infantry support roles. This CAD model provides a precise 2D and 3D digital representation of the firearm for use in engineering, simulation, and design integration.

Technical Specifications

• Category: Light Machine Gun (LMG)

• Caliber: 5.56 × 45mm NATO

• Operation: Gas-operated, belt or magazine fed

• Fire Modes: Fully automatic

• Effective Range: ~800 meters (with bipod support)

• Weight (real-world reference): Approx. 7.5 kg (model scaled accordingly)

CAD Model Details

• Components Represented:

  • Stock and buttplate

  • Receiver and trigger group

  • Bipod and barrel assembly

  • Heat shield and carrying handle

  • Ammunition feed system

• File Formats: DWG, STEP, SolidWorks, OBJ, STL

• Dimensions: Modeled to scale, based on original technical references

• Detail Level: High-fidelity geometry with parametric features

Applications in Engineering and Design

• Defense Engineering: Integration into military vehicle systems, weapon stations, and training equipment.

• Simulation & Training: Use in VR/AR environments, tactical simulators, and educational defense platforms.

• Industrial Prototyping: Compatibility checks for mounts, brackets, and supporting hardware.

• Academic Use: Provides students with a hands-on digital resource to study mechanical assemblies.

Integration & Compatibility

• BIM Ready: Suitable for defense facility modeling and training space layouts.

• CAD Workflow Support: Works with Autodesk, SolidWorks, Siemens NX, CATIA, and other major CAD software.

• Customization: Model allows for material and rendering modifications for visualization purposes.

Find more on Defence Section.
