T90 Model Tank – CAD and Technical Specifications

Overview

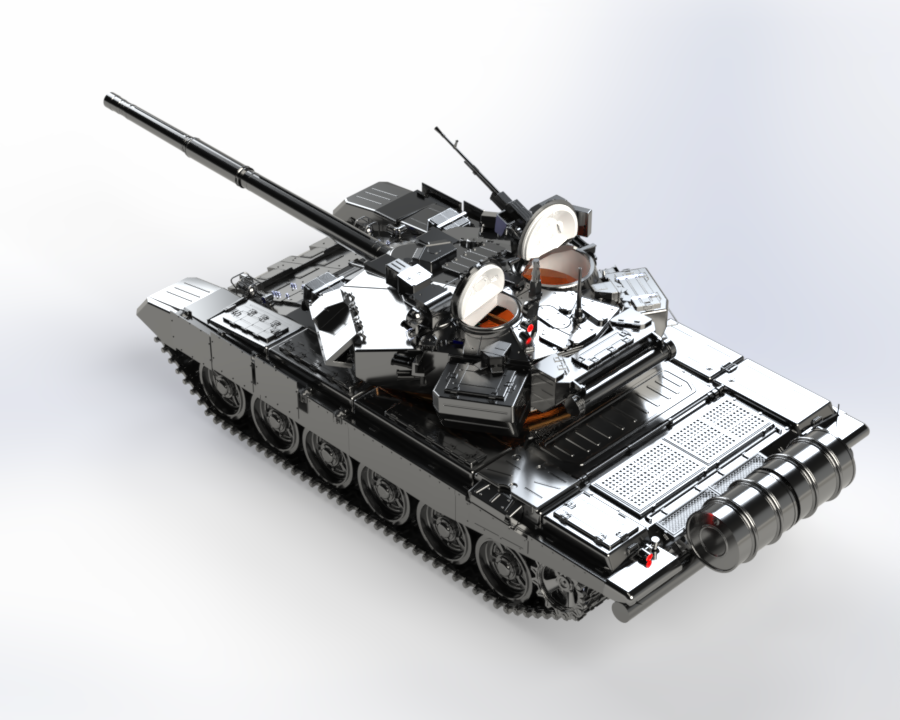

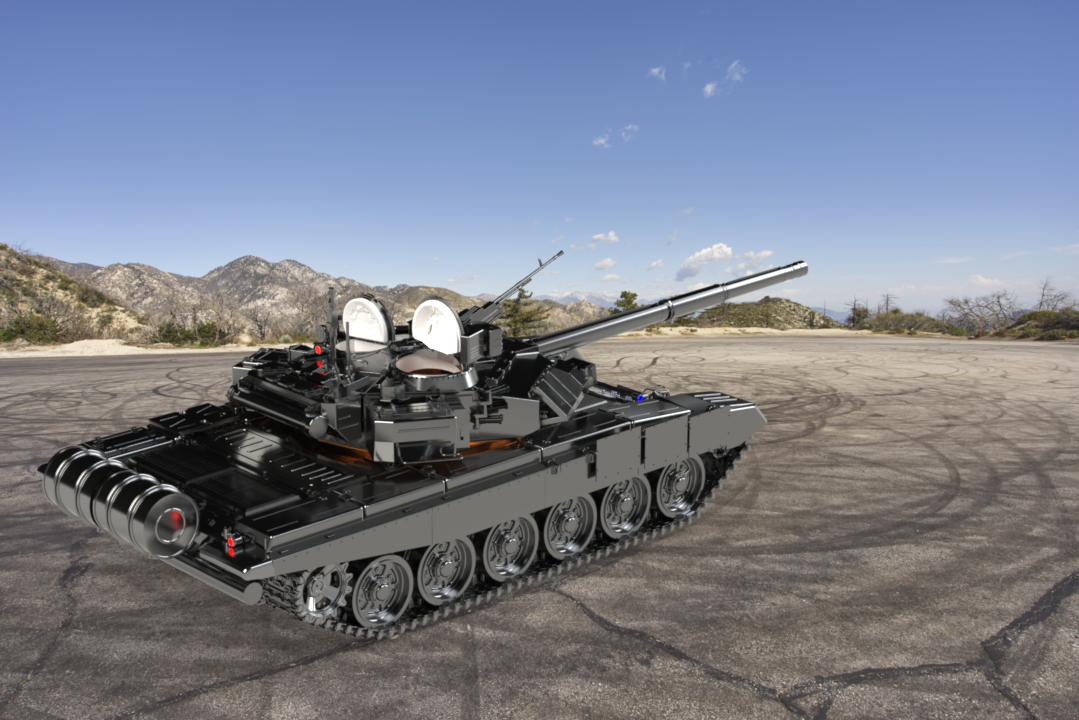

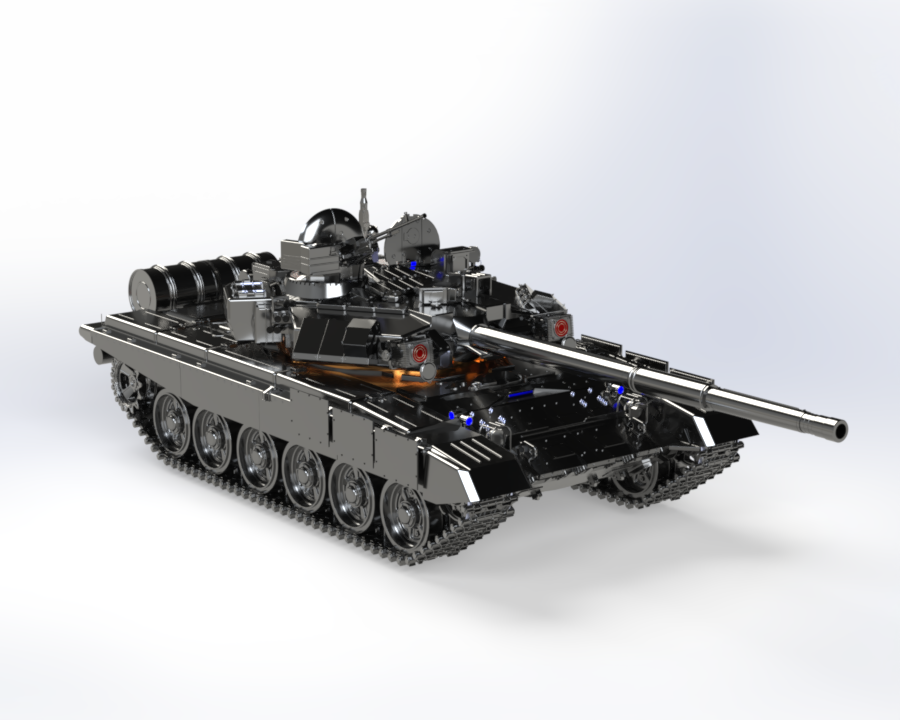

The T90 model Tank CAD file provides engineers, defense analysts, and students with a highly detailed 2D drawing and 3D CAD model of one of the world’s most advanced main battle tanks. Designed for accuracy and technical integration, this model is ideal for military vehicle design studies, structural shop drawings, and BIM/AEC projects where armored systems are required.

Technical Specifications (CAD Representation)

• Model Type: 2D CAD drawings | 3D CAD models

• Category: Military vehicle CAD model

• Tank Type: Main Battle Tank (T-90)

• Dimensions (approx.):

  • Length: 9.63 m (with gun)

  • Width: 3.78 m

  • Height: 2.22 m

• Weight: ~46.5 tons

• Engine Power: 1,000 hp diesel engine

• Top Speed: 60 km/h (road)

• Armament (modeled):

  • 125 mm smoothbore gun

  • 7.62 mm coaxial machine gun

  • 12.7 mm anti-aircraft machine gun

• Armor: Composite armor with ERA (Explosive Reactive Armor) blocks

• Mobility Systems: Tracks and suspension modeled for fabrication layouts

Applications in CAD and Engineering

• Vehicle CAD Models: Provides precise tank geometry for military design research.

• Fabrication Layouts: Useful in structural detailing and mechanical component design.

• BIM & AEC Packages: Allows integration into defense infrastructure planning and simulation projects.

• Educational Use: Supports student engineers in learning about heavy vehicle design, 3D modeling, and assembly drawings.
