FR-F2 – Sniper Rifle CAD Model

General Description:

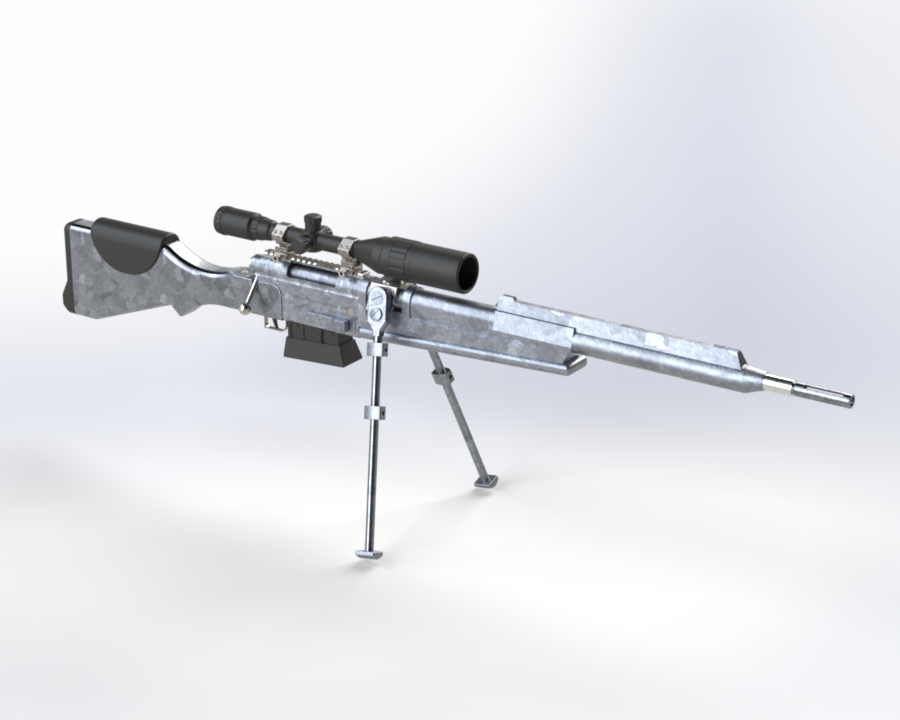

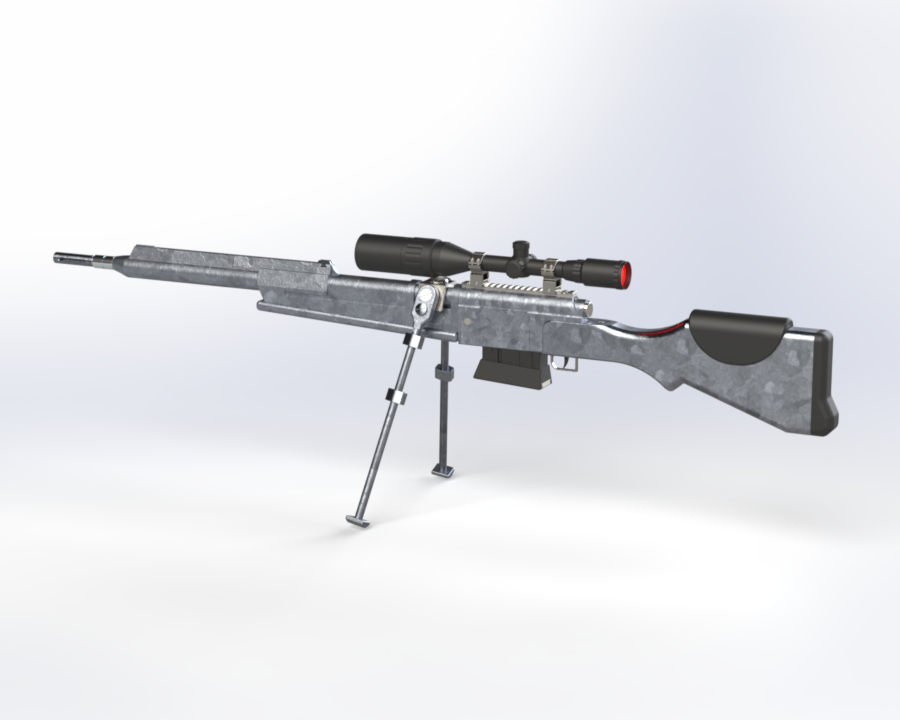

The FR-F2 is a French 7.62 × 51mm NATO sniper rifle, designed as an upgraded version of the FR-F1. It has been widely used by the French Army since the 1980s, known for its precision, modular design, and adaptability in various combat environments. This CAD model provides an accurate 2D and 3D digital representation for engineering, defense simulations, and technical design integration.

Technical Specifications

• Category: Bolt-Action Sniper Rifle

• Caliber: 7.62 × 51mm NATO

• Operation: Bolt-action

• Effective Range: ~800–1,200 meters (with optics)

• Weight (real-world reference): Approx. 5.2 kg (unloaded)

• Barrel: Free-floating, thermally shielded for precision shooting

• Optics: Typically equipped with APX L806 6× scope (model supports optical mounting interface)

CAD Model Details

• Components Represented:

  • Barrel with thermal sleeve

  • Receiver and bolt mechanism

  • Scope mounting rail

  • Stock and adjustable cheek rest

  • Bipod and trigger group

• File Formats: DWG, STEP, SolidWorks, STL, OBJ

• Dimensions: Modeled to scale based on FR-F2 technical references

• Detail Level: High-fidelity geometry suitable for mechanical and visual applications

Applications in Engineering and Design

• Defense Engineering: Integration into training systems, vehicle mounts, and military equipment layouts.

• Simulation & Training: Supports VR/AR platforms for realistic weapon handling and tactical simulation.

• Academic Use: Ideal for students studying mechanical design or defense engineering.

• Visualization & Rendering: High-quality model for military design presentations and animations.

Integration & Compatibility

• BIM Ready: Can be incorporated into defense facility layouts and operational training designs.

• CAD Workflow Support: Compatible with Autodesk, SolidWorks, CATIA, Siemens NX, and other platforms.

• Customization: Geometry allows for rendering modifications and texture application.

See more on Defence Section.
