Mammography Mobile Clinic | 3D CAD Model for Medical Applications

General Description

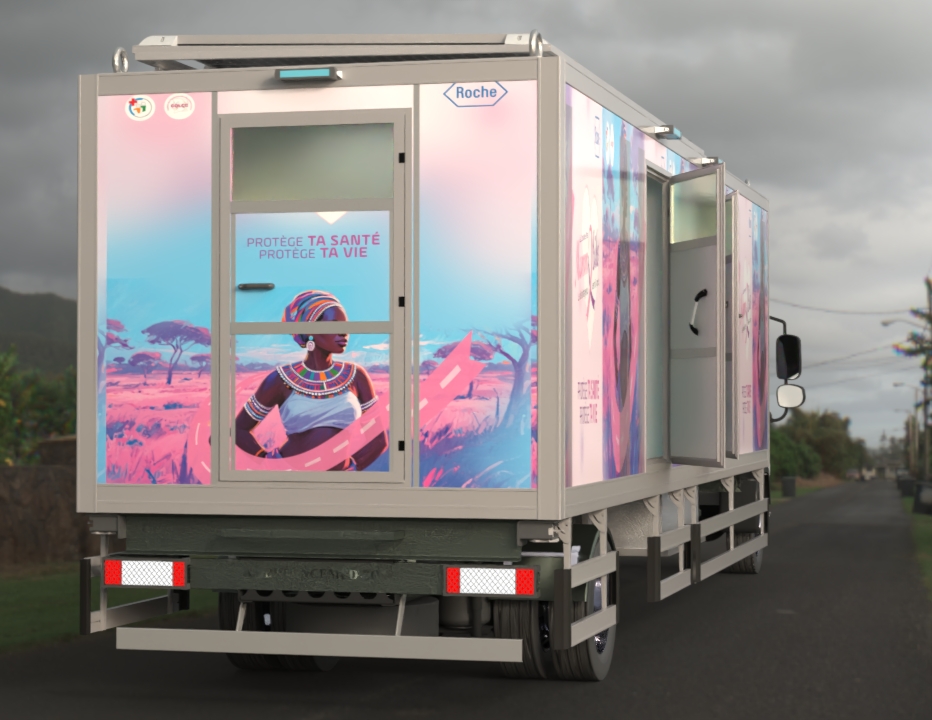

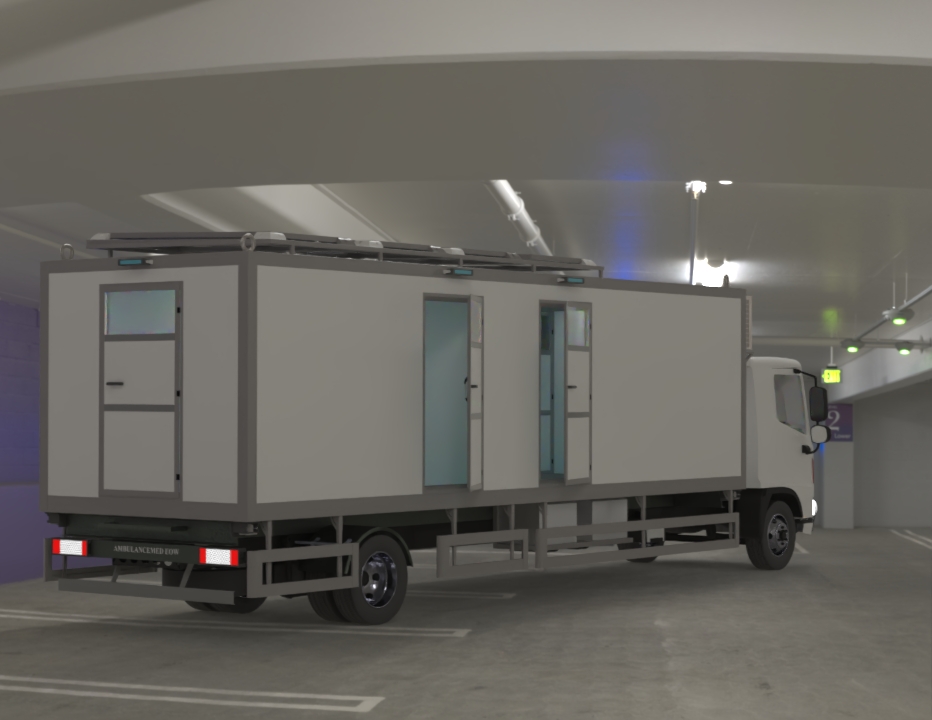

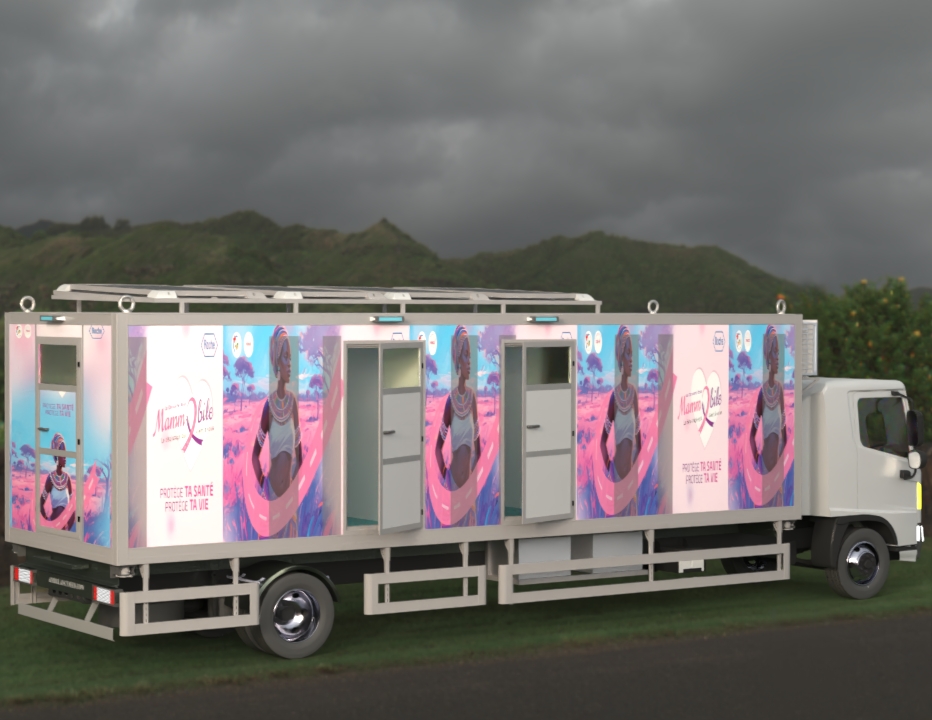

The Mammography Mobile Clinic is a fully equipped, transportable healthcare unit designed for on-site breast cancer screening and diagnostics. Engineered for mobility, functionality, and patient comfort, this model includes a dedicated mammography room, operator control area, doctor’s office, reception area, examination and ultrasound room, and technical service room, ensuring complete diagnostic capability in the field.

Technical Specifications

• Overall Dimensions: 11,000 mm (L) × 2,500 mm (W) × 3,500 mm (H)

• Structural Material: Steel frame with insulated wall panels

• Flooring: Medical-grade anti-slip vinyl

• Electrical System: 210V / 220V adaptable, integrated power distribution panel

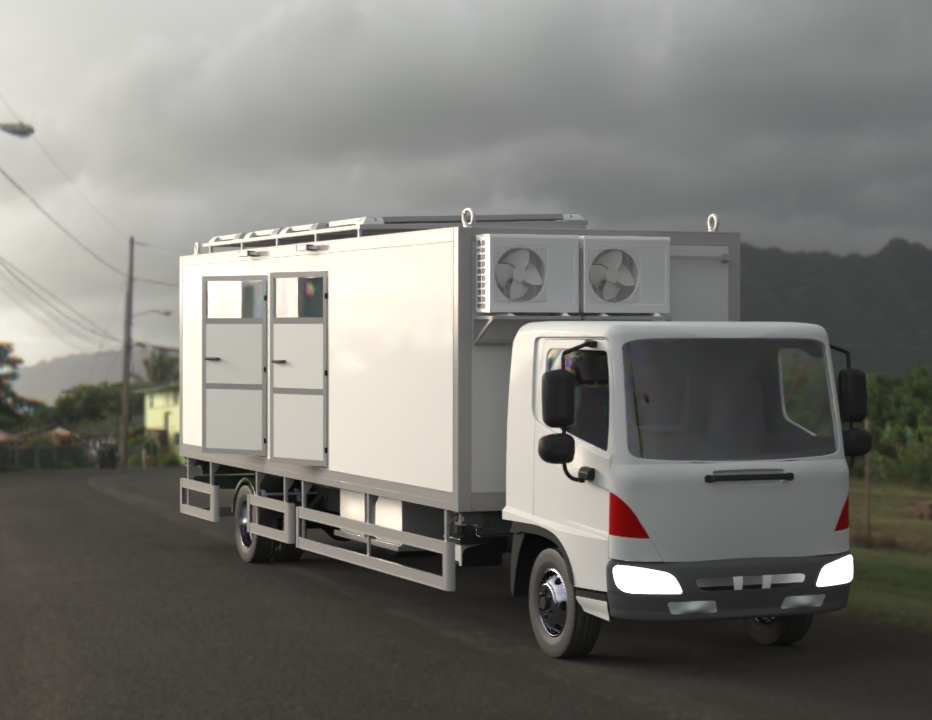

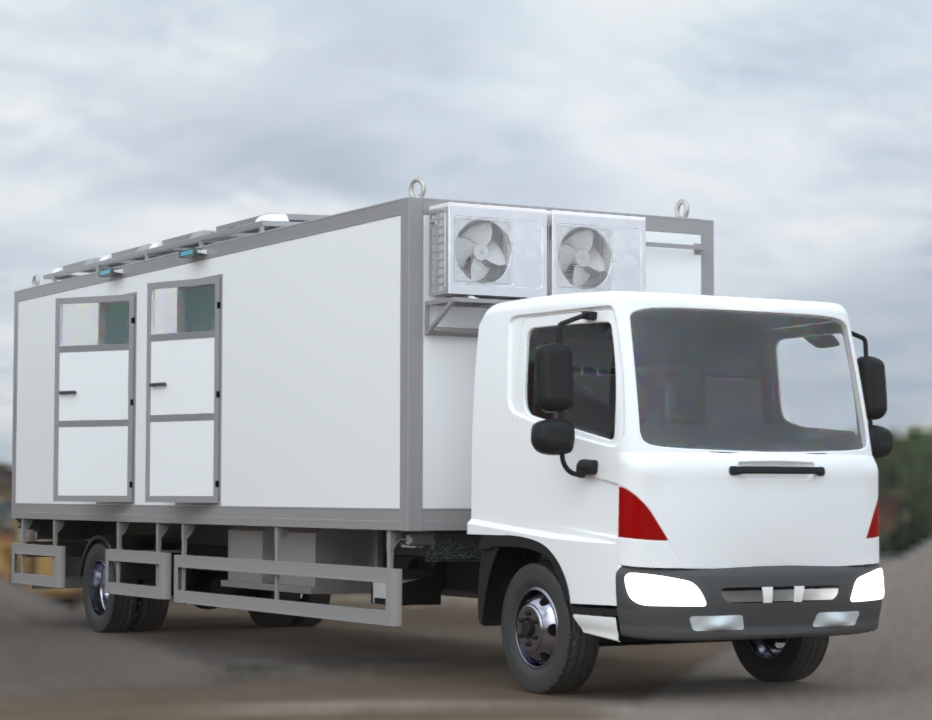

• HVAC: Split air-conditioning for clinical and technical areas

• Lighting: LED panel lighting with low energy consumption

• Plumbing: Fresh and waste water tanks integrated beneath chassis

• Accessibility: Single rear access door with optional hydraulic lift system

Interior Layout

• Mammography Room: Shielded with lead panels; equipped with a digital mammography device

• Operator Room: Includes workstation, data processing, and image review area

• Doctor’s Room: Consultation space with ergonomic desk and storage

• Reception Room: Patient registration and waiting zone

• Examination & Ultrasound Room: Multi-purpose area for screening and additional imaging

• WC & Technical Room: Sanitary and equipment service areas with ventilation system

Design & CAD Model Features

• Detailed 3D geometry with full assembly hierarchy

• Parametric components for easy modification

• Interior and exterior layout views for architectural integration

• Optimized for rendering and manufacturing simulation

• Customizable design: Layout, dimensions, and equipment configuration can be adapted to project requirements

Applications

• Mobile healthcare and outreach programs

• Hospital fleet expansion

• Emergency and rural screening services

• Training and educational simulation in medical engineering
