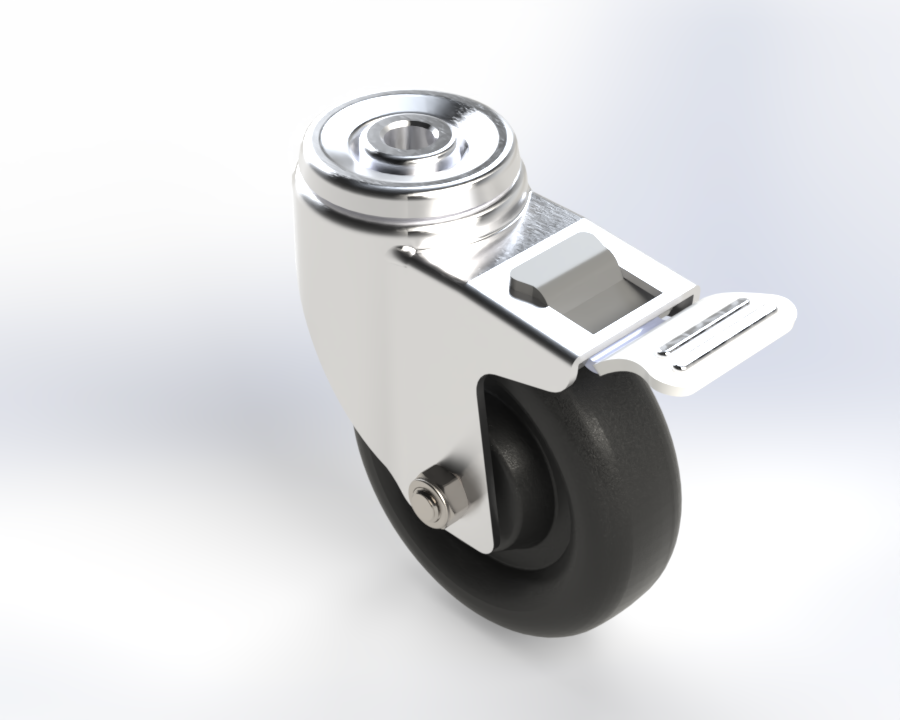

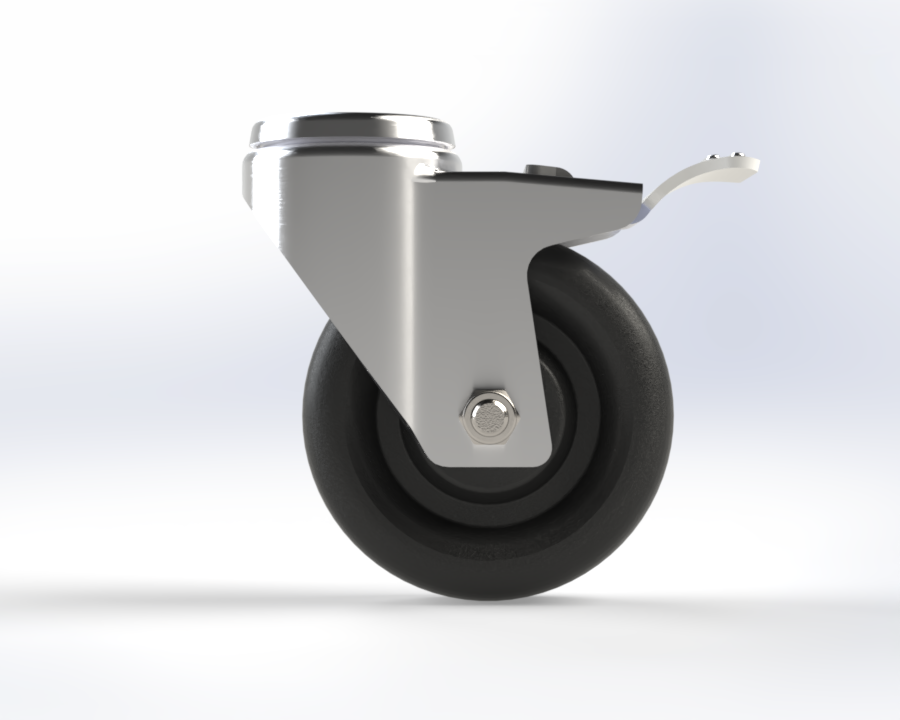

Swivel Castor with Brake | Industrial CAD Model Overview

Description

The Swivel Castor with Brake is a versatile wheel assembly that enables smooth 360-degree rotation combined with an integrated braking system for secure positioning. Commonly used in industrial carts, medical trolleys, and equipment platforms, it combines mobility and stability in a single, durable unit.

Technical Specifications

• Wheel Diameter: 50 mm – 200 mm

• Load Capacity: 80 kg – 600 kg per wheel

• Frame Material: Cold-Rolled Steel / Stainless Steel

• Wheel Material: Polyurethane (PU), Rubber, or Nylon

• Bearing Type: Precision Ball Bearing

• Brake Type: Dual Lock (Wheel + Swivel Lock)

• Mount Type: Top Plate / Threaded Stem

• Rotation Angle: 360°

• Operating Temperature: -25°C to +70°C

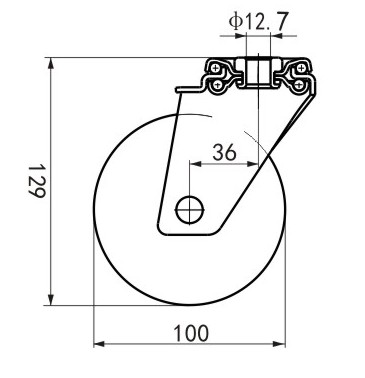

Design & CAD Features of Swivel Castor with Brake

• File Formats: .SLDPRT, .STEP, .IGES, .DWG

• Detailed Geometry: Fork frame, bearing housing, brake pedal, wheel hub

• Parametric Design: Customizable wheel diameter and mount plate dimensions

• Simulation-Ready: FEA-tested for static and dynamic load analysis

• Visualization: Realistic material mapping for rendering and assembly validation

Applications of Swivel Castor

• Industrial workstations and tool carts

• Medical and laboratory trolleys

• Warehouse transport and logistics systems

• Equipment requiring lockable mobility and secure placement

Advantages

• Full 360° rotation for maximum maneuverability

• Integrated brake system ensures stability during operation

• High load-bearing design with reinforced brackets

• Optimized for CAD modeling in multi-assembly environments
