Rigid Caster Wheel | CAD & Technical Overview

Description

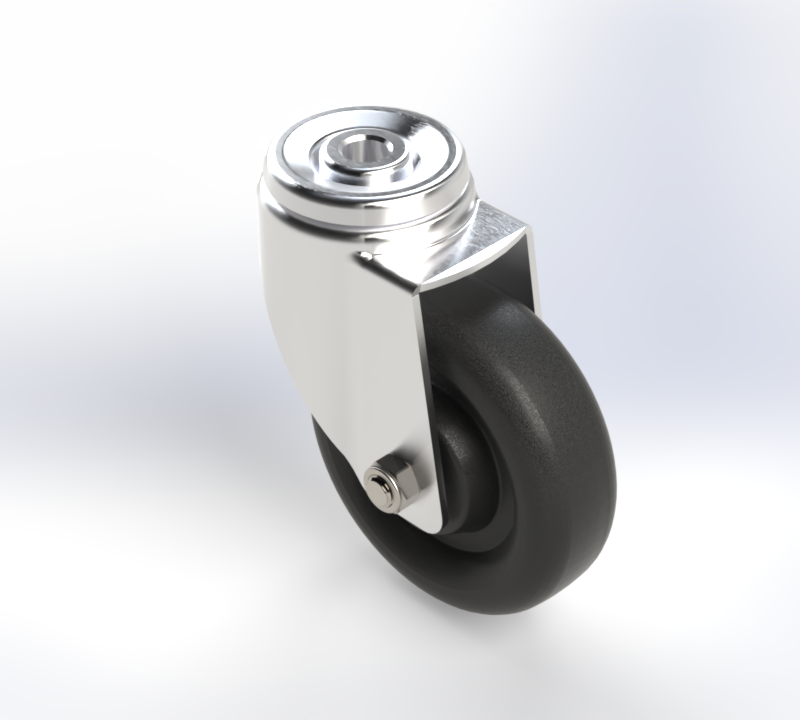

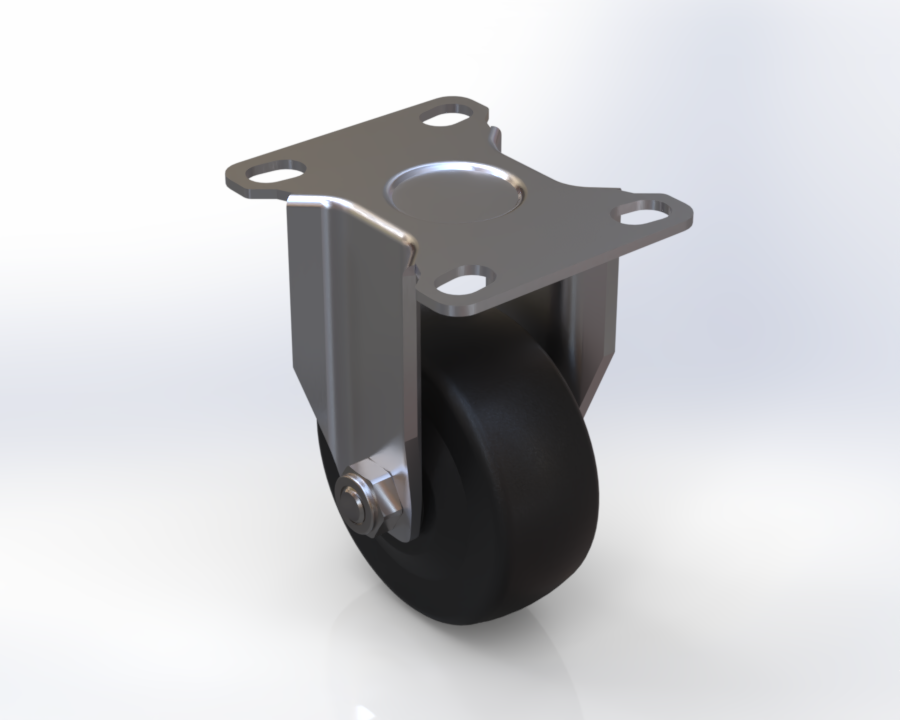

The Rigid Caster Wheel is a fixed-direction mobility component designed to provide straight-line movement and high stability in industrial and mechanical applications. Unlike swivel casters, it does not rotate horizontally, making it ideal for systems where controlled linear motion and load-bearing reliability are required.

Technical Specifications

• Wheel Diameter: 50 mm – 250 mm

• Load Capacity: 60 kg – 700 kg per wheel

• Material Options: Steel, Polyurethane, Nylon, Thermoplastic Rubber

• Bearing Type: Roller Bearing / Plain Bearing

• Mount Type: Top Plate / Bolt-On Bracket

• Frame Material: Cold-Rolled Steel or Stainless Steel

• Operating Temperature: -20°C to +80°C

Design & CAD Features of Rigid Caster Wheel

• File Formats: .SLDPRT, .STEP, .IGES, .DWG

• Detailed Geometry: Fork frame, bearing housing, wheel hub

• Parametric Design: Adjustable height and frame dimensions

• Simulation Ready: FEA and load testing compatible

• Visualization: Realistic materials for rendering and assembly placement

Applications of Caster Wheel

• Manufacturing lines and conveyor systems

• Warehouse transport platforms

• Industrial carts and heavy-duty trolleys

• Equipment requiring guided, straight-line movement

Advantages

• Stable and precise linear motion under heavy loads

• Simple installation and low maintenance

• Enhanced structural rigidity for vibration resistance

• Compatible with CAD integration for accurate modeling and assembly
