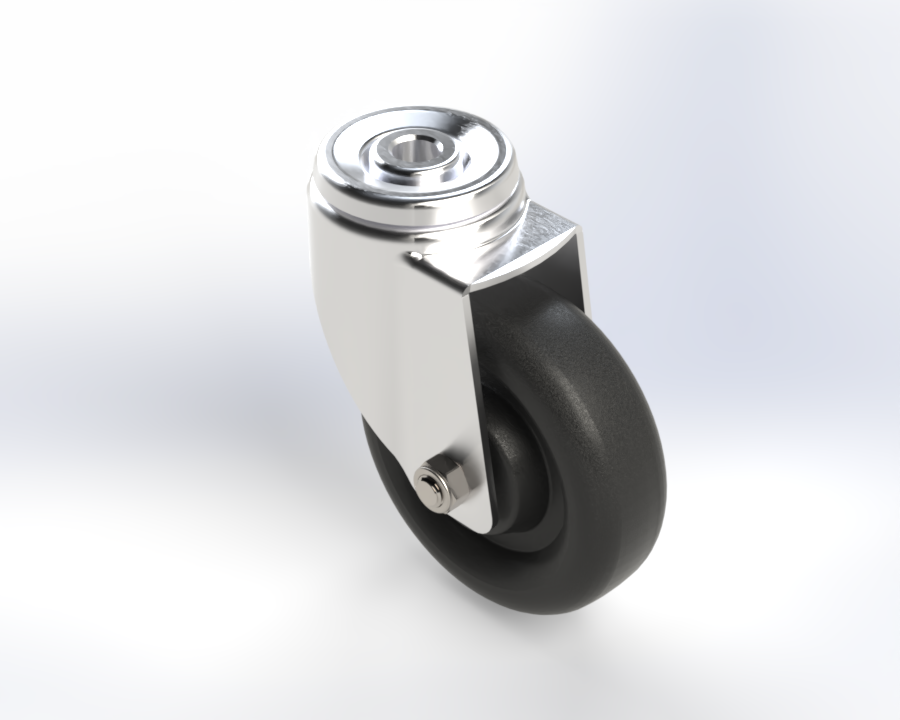

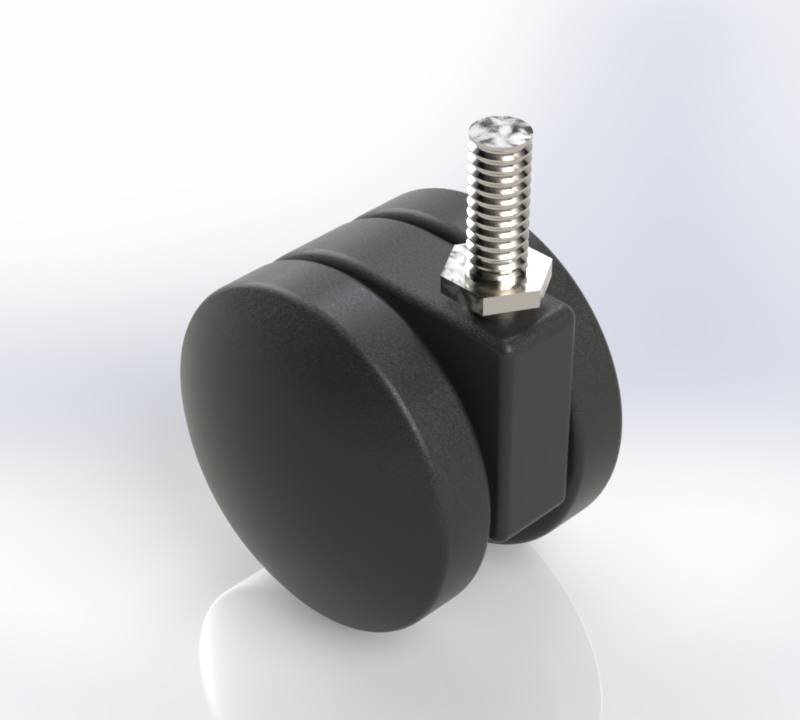

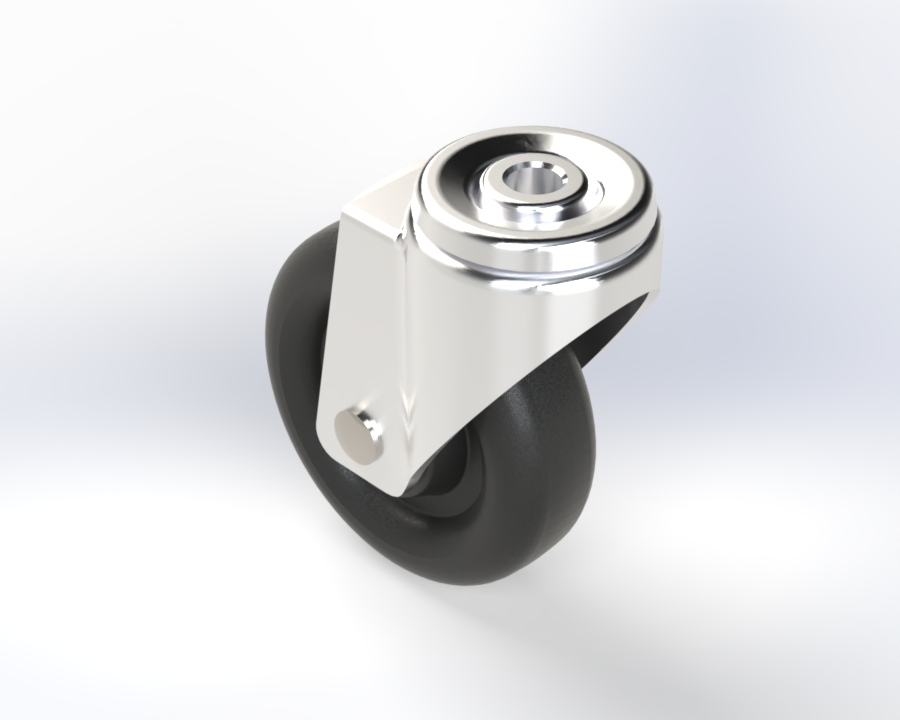

Swivel Caster Wheel | CAD & 3D Model Overview

Description

The Swivel Caster Wheel is a precision-engineered mobility component designed to rotate 360°, enabling flexible movement and directional control for carts, machinery, and furniture systems. Built for durability, load capacity, and ease of maintenance, this caster integrates seamlessly with CAD-based mechanical and industrial designs for optimized performance and visualization.

Technical Specifications

• Wheel Diameter: 50 mm – 200 mm

• Load Capacity: 40 kg – 500 kg per wheel

• Material Options: Polyurethane, Steel, Nylon, Thermoplastic Rubber

• Bearing Type: Double Ball Bearing / Plain Bearing

• Mount Type: Top Plate / Bolt Hole / Threaded Stem

• Swivel Radius: 70° – 180° adjustable range

• Brake Option: Directional Lock / Total Lock

Design & CAD Features

• File Formats: .SLDPRT, .STEP, .IGES, .DWG

• Detailed Geometry: Fork assembly, bearing housing, fasteners

• Parametric Design: Modifiable height and swivel angle

• Simulation Ready: Compatible with motion and FEA analysis

• Rendering: Pre-assigned material textures for realistic visualization

Applications of Swivel Caster Wheel

• Industrial and manufacturing carts

• Furniture and office equipment

• Medical and laboratory trolleys

• Warehouse and logistics platforms

Advantages of Caster Wheel

• Full 360° rotation for smooth directional changes

• Enhanced load stability and shock absorption

• Optimized CAD compatibility for modeling and manufacturing

• Customizable configurations for various project needs

See more products on CAD Store.
