Two Wheel Caster | CAD & 3D Model Overview

Description

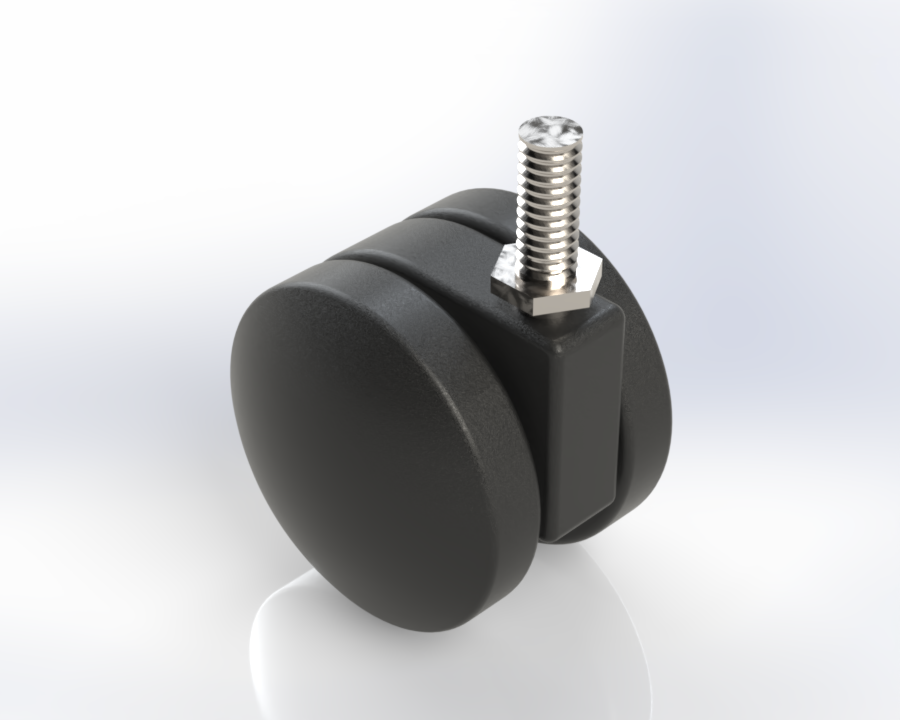

The Two Wheel Caster is a durable and efficient rolling mechanism used for mobile platforms, trolleys, carts, and machinery. Engineered to provide smooth movement, high load-bearing capacity, and maneuverability, this component is ideal for industrial, furniture, and equipment transport applications. The design focuses on precision alignment, long service life, and ease of integration into CAD-based mechanical systems.

Technical Specifications

• Material Options: Polyurethane, Steel, Nylon, or Rubber-Coated Alloy

• Wheel Diameter: 50 mm – 150 mm (custom sizes available)

• Load Capacity: 50 kg – 300 kg per caster

• Bearing Type: Ball Bearing / Plain Bearing Options

• Mount Type: Top Plate / Stem Mount

• Swivel Radius: 40° – 180° depending on configuration

• Brake Option: Manual Lock / Free Rolling

Design & CAD Features

• Model Formats: .SLDPRT, .STEP, .IGES, .DWG

• Detailed Geometry: Includes hub, fork, and fastener assembly

• Parametric Design: Adjustable dimensions for custom wheelbases

• Material Assignment: Compatible with FEA analysis and rendering

• Assembly Ready: Predefined constraints for realistic movement simulation

Applications

• Industrial Equipment Mobility Systems

• Furniture and Workstation Platforms

• Medical and Laboratory Trolleys

• Warehouse Carts and Transport Units

Advantages

• High stability and smooth-rolling motion on varied surfaces

• Customizable load and wheel configurations for versatile use

• Optimized CAD models for mechanical and production design

• Long-lasting performance under heavy-duty conditions
