Quadcopter Landing Gears | CAD & 3D Model Overview

Description

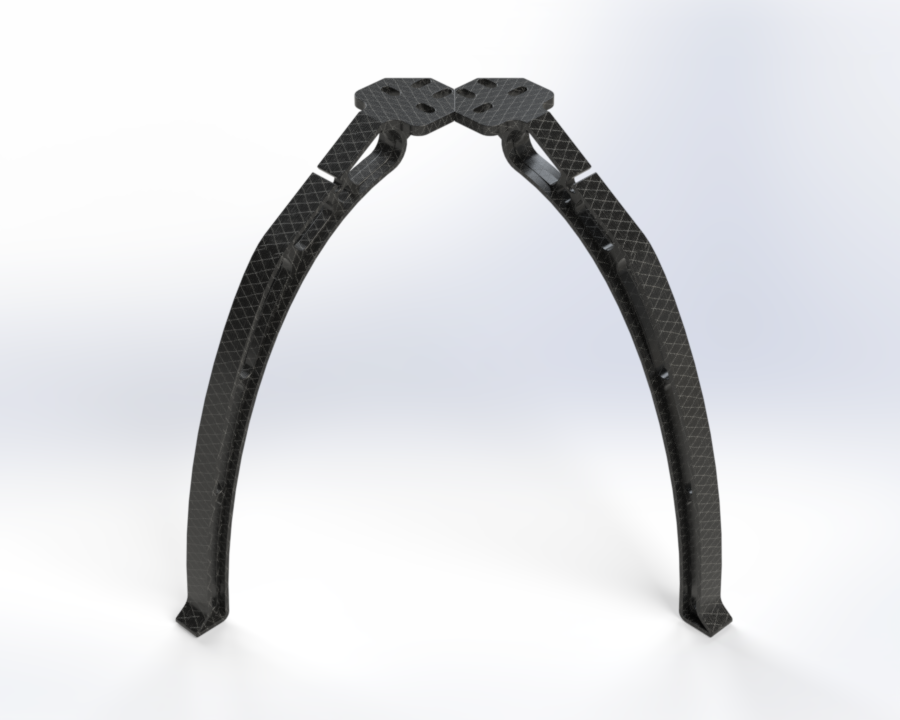

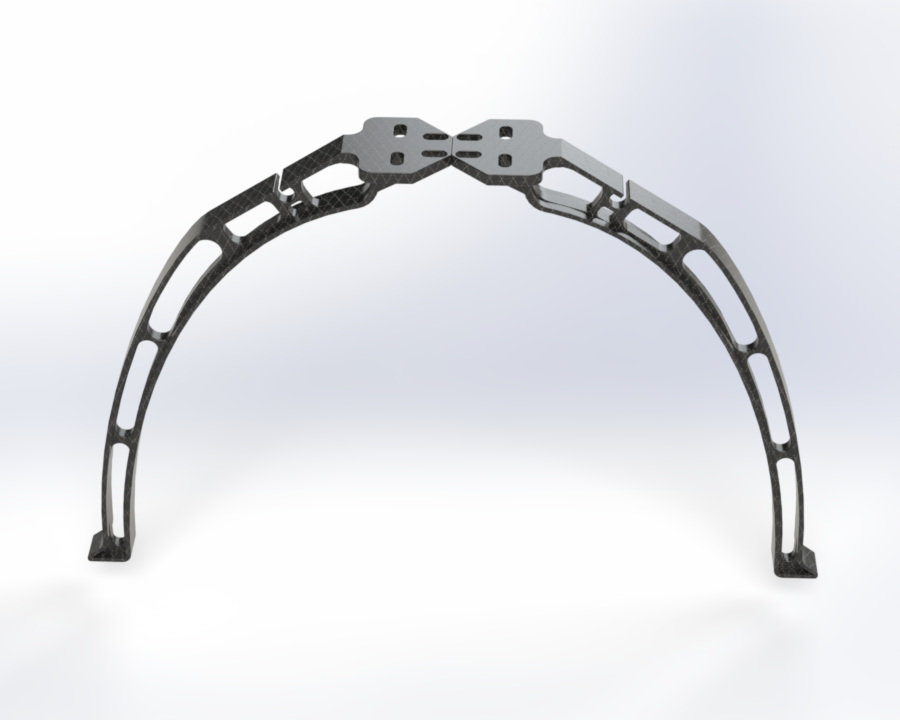

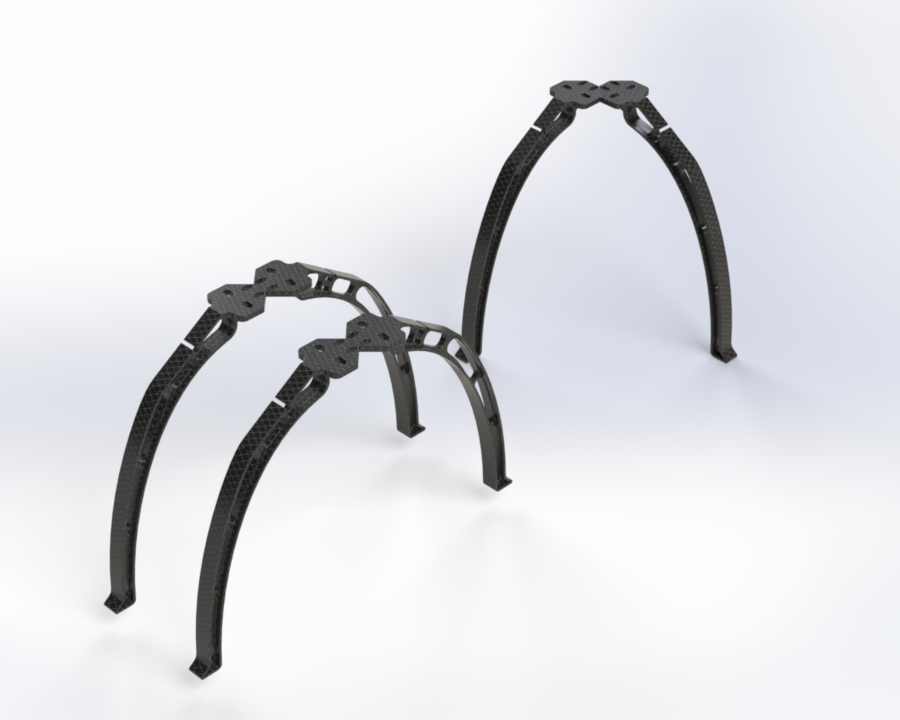

Quadcopter Landing Gears provide structural stability, shock absorption, and protection for UAV systems during takeoff and landing operations. These components are designed to support variable payloads while maintaining lightweight efficiency and aerodynamic performance. Ideal for drone design, prototyping, and educational projects

Technical Specifications of Landing Gears

• Material Options: Carbon Fiber, Aluminum Alloy, Reinforced Nylon

• Mount Type: Fixed / Detachable Mount Assembly

• Load Capacity: Up to 2.5 kg (customizable per model)

• Dimensions: Variable (optimized for quadcopter frame sizes 250–550 mm)

• Shock Resistance: Integrated vibration dampers or rubber pads

• Weight: 45–120 g depending on material configuration

Design & CAD Features of Quadcopter Landing Gears

• Model Compatibility: Ready-to-import 3D files for SolidWorks and Fusion 360

• File Formats: .STP, .IGS, .SLDPRT, .DWG, .FBX

• Customizable Geometry: Adjustable leg height and cross-brace spacing

• Parametric Modeling: Editable dimensions for specific drone applications

• Assembly Integration: Compatible with most standard quadcopter frames and landing

Applications

• Aerospace Prototyping & Testing

• Mechanical Design Simulation (FEA/CFD)

• Drone Fabrication & Customization Projects

• Engineering Education and Research Modules

• Landing Gears’ Sector

Advantages

• Enhanced shock absorption for smoother landings

• Lightweight structure for improved flight efficiency

• Easy CAD modification and integration

• Reusable design files for rapid prototyping and testing
