Labstool CAD Model – Technical Specifications

Overview

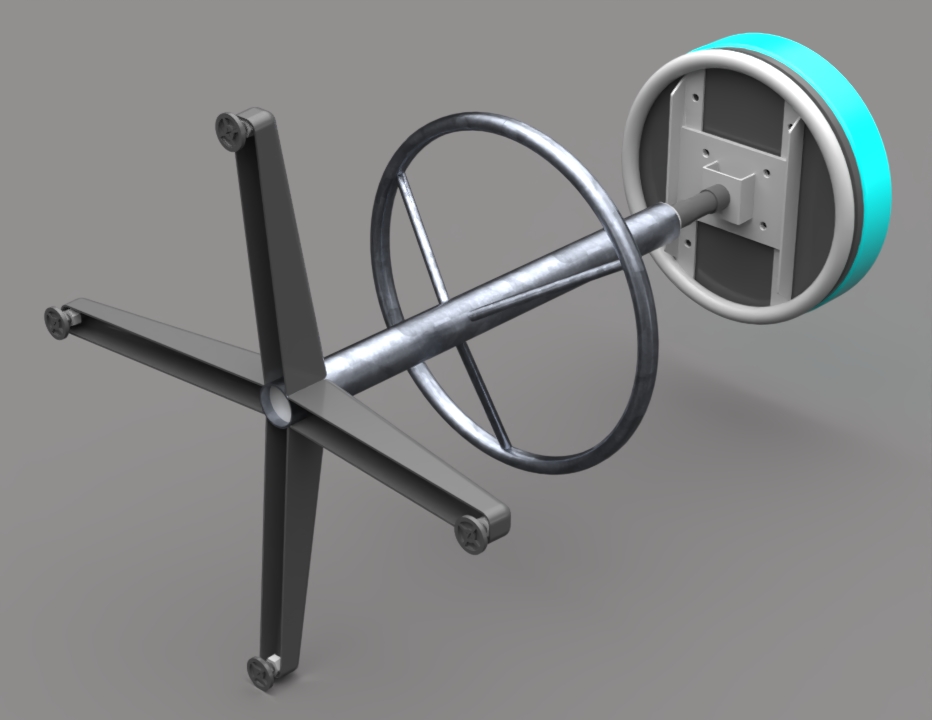

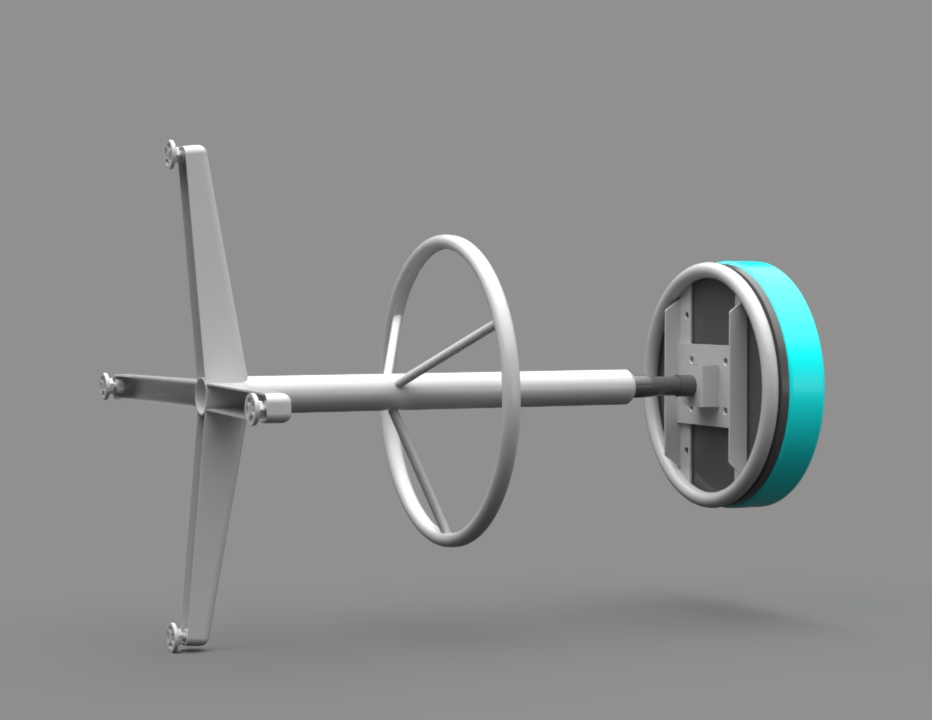

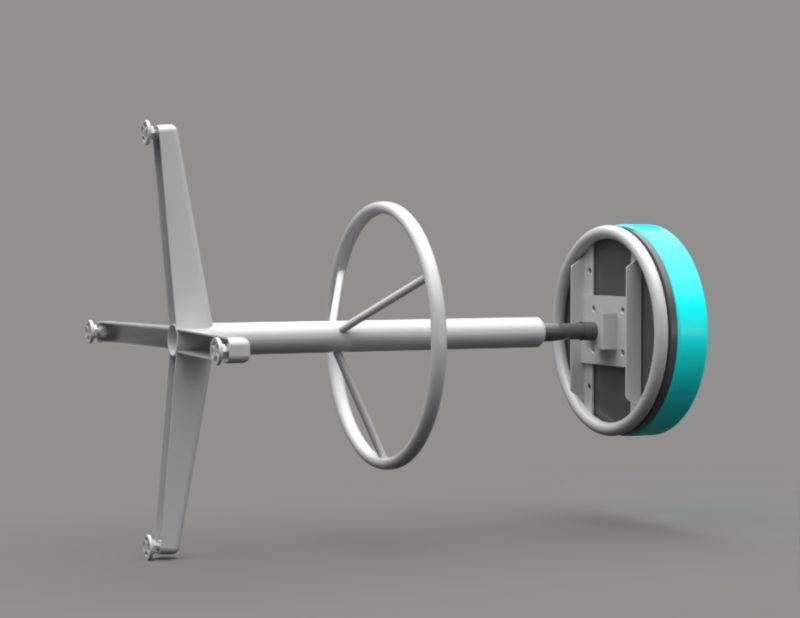

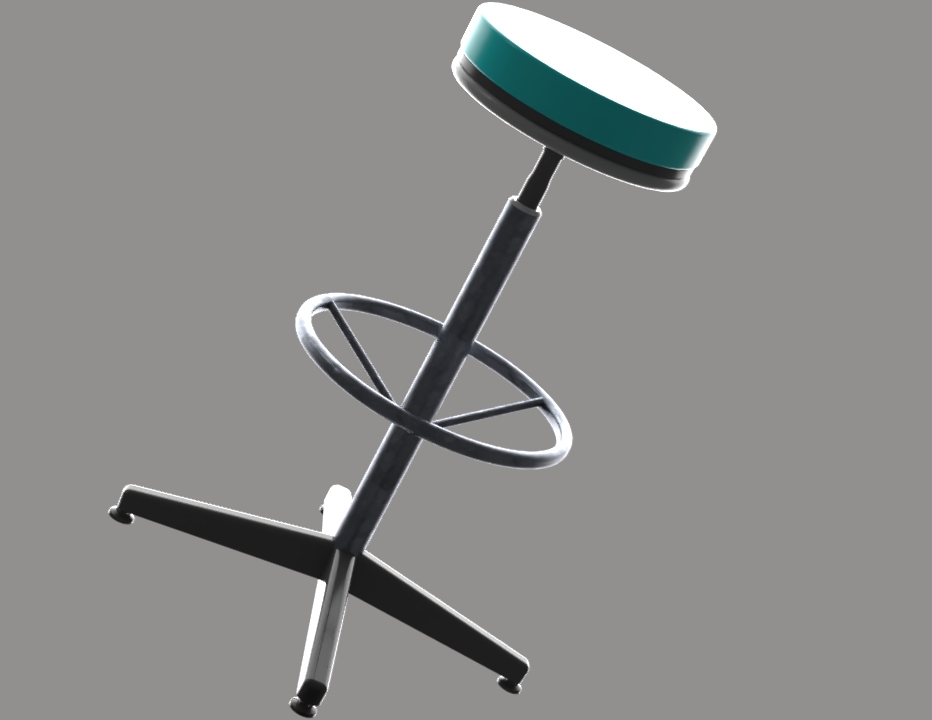

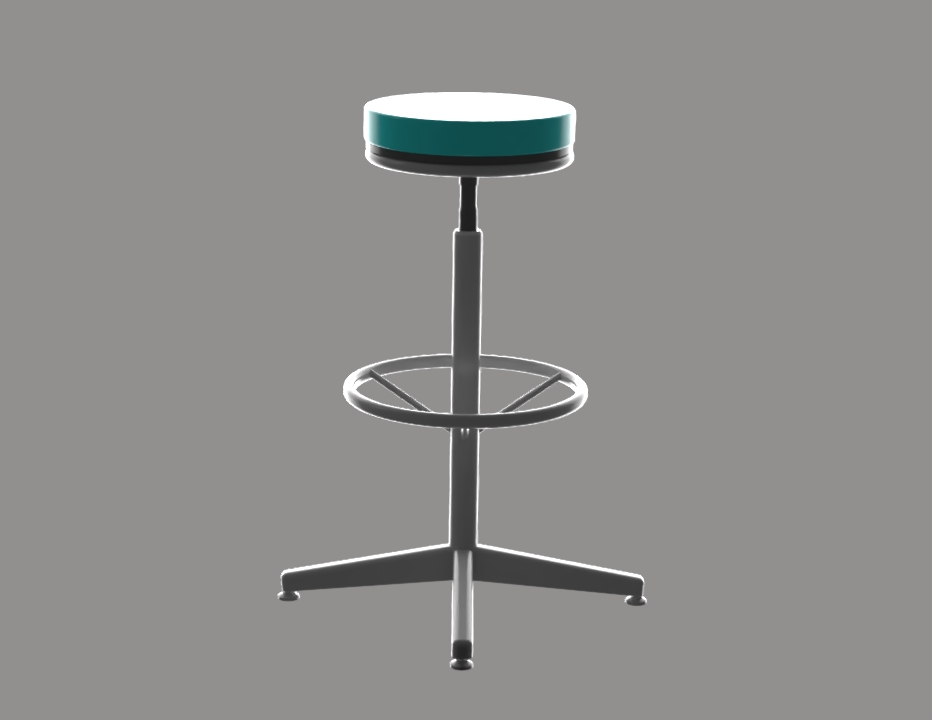

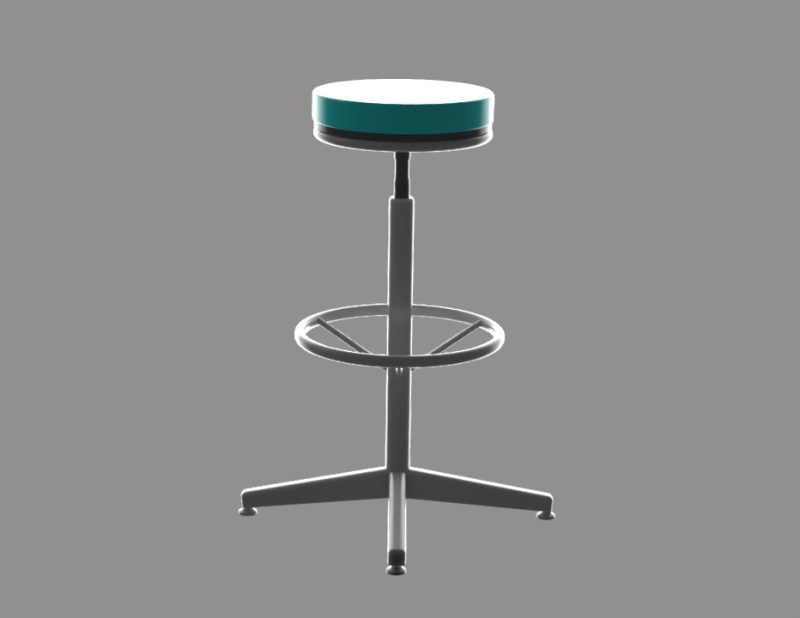

The Labstool CAD model is a versatile and ergonomic seating solution designed for laboratory, technical, and industrial environments. Available as 2D CAD drawings, 3D CAD models, and Revit furniture families, the Labstool allows engineers, architects, and designers to integrate accurate and ready-to-use models into BIM projects, furniture layouts, and fabrication plans.

Technical Specifications

• Design Type: Ergonomic laboratory stool (compact and durable)

• Model Availability: 2D CAD files | 3D CAD models | Revit furniture family

• Seat Height Adjustment: 450–650 mm (gas lift or mechanical adjustment)

• Seat Material: Polyurethane / high-density foam with chemical resistance

• Base Structure: 5-star reinforced aluminum or steel base

• Footrest: Optional circular footring for added comfort

• Load Capacity: 120–150 kg (depending on model)

• Mobility: 360° swivel with castors (anti-static and lockable options available)

• Standards Compliance: ISO 21015 for ergonomics and durability

Applications in CAD and Design

• Furniture CAD Modeling: The Labstool CAD model provides realistic seating layouts for architects, engineers, and designers.

• BIM Integration: As a Revit furniture family, it ensures accurate placement in healthcare facilities, research laboratories, and industrial environments.

• Fabrication Layouts: The 3D Labstool CAD file streamlines production drawings and workshop detailing.
