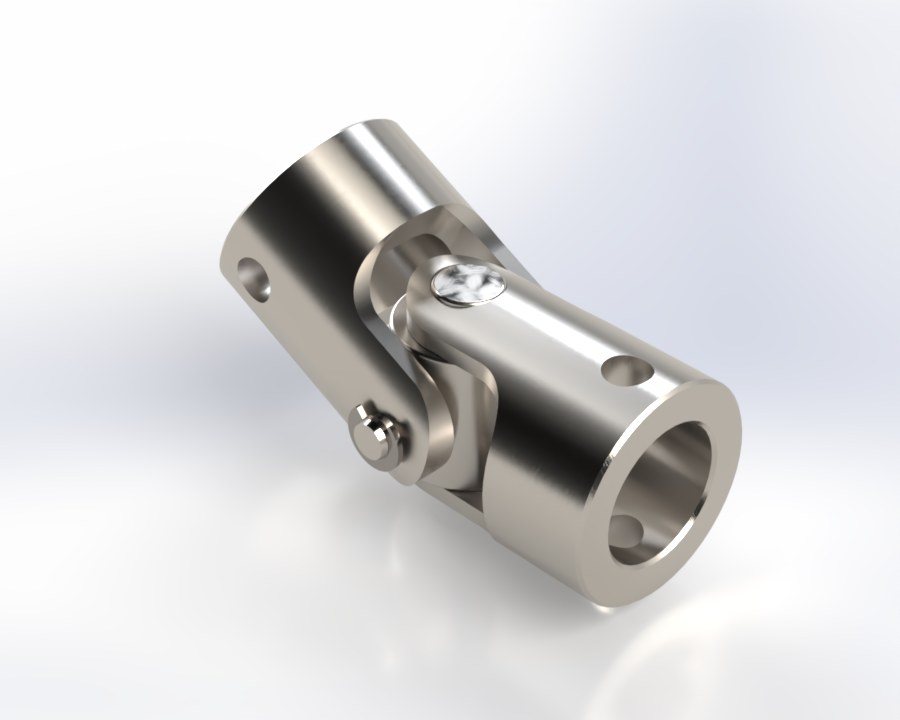

Universal Joint | CAD Data Sheet

Product Type: Universal Joint (U-Joint) for industrial use.
Category: Mechanical Power Transmission Component
File Formats: SLDPRT, SLDASM, STEP, IGES
Applications: Automotive drive shafts, machinery couplings, robotics, and industrial equipment

Technical Specifications:

• Design Type: Parametric 3D CAD model with full rotational constraints

• Construction: Cross and bearing design with yokes for torque transfer

• Material Reference: Steel or alloy-based assembly for high torque resistance

• Angular Misalignment Range: Up to 30° (depending on shaft configuration)

• Rotation Speed: Suitable for high-speed applications with balanced design

• Assembly Details: Includes snap rings, needle bearings, and grease fittings

• Compatibility: Fully functional in SOLIDWORKS, AutoCAD, Fusion 360, and CATIA

Key Features of Universal Joints:

• Accurate geometry for mechanical simulation and motion analysis

• Suitable for torque transmission and dynamic assembly testing

• Ideal for mechanical engineers, automotive designers, and students

Customization: Configurable for specific shaft diameters, materials, and industrial standards.
