Wall Foldable Workbench 3D — Technical Datasheet

Product Overview

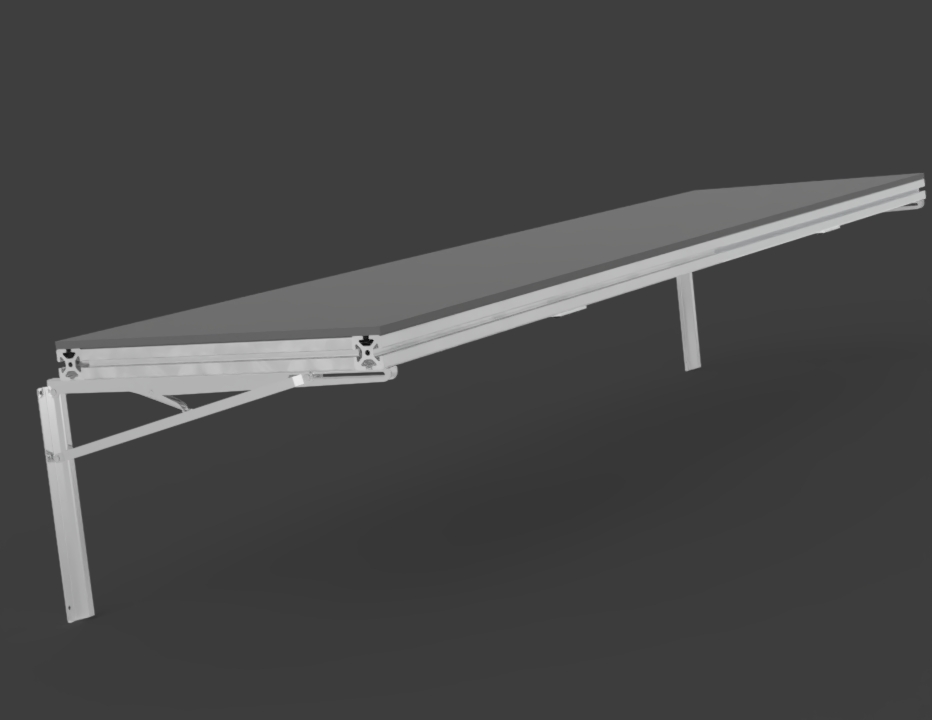

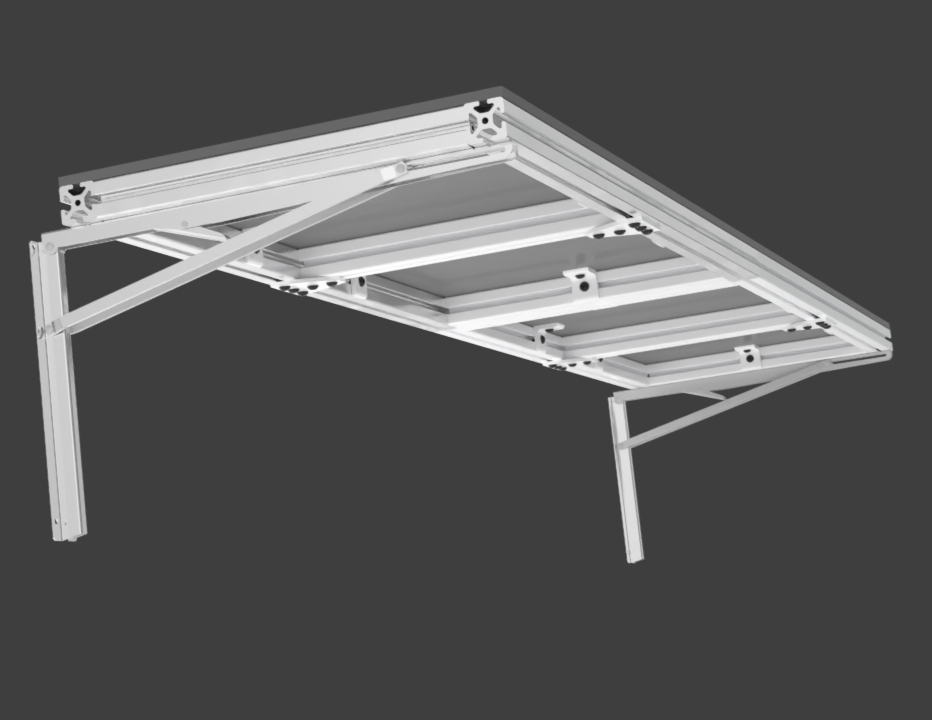

The Wall Foldable Workbench 3D Model is a high-precision CAD asset designed for industrial, workshop, and garage applications requiring a compact, space-saving work surface. The model includes full mechanical detailing of the foldable mechanism, hinge geometry, support arms, and wall-mount structure.

Technical Specifications

General Dimensions

• Workbench Width: Customizable (default: 1200 mm)

• Workbench Depth: Customizable (default: 600 mm)

• Wall Mount Height: Variable depending on installation

• Folded Thickness: 80–120 mm (depending on configuration)

Structural Components

• Wall Bracket Assembly:

  • Reinforced steel profile design

  • Mounting holes fully modeled

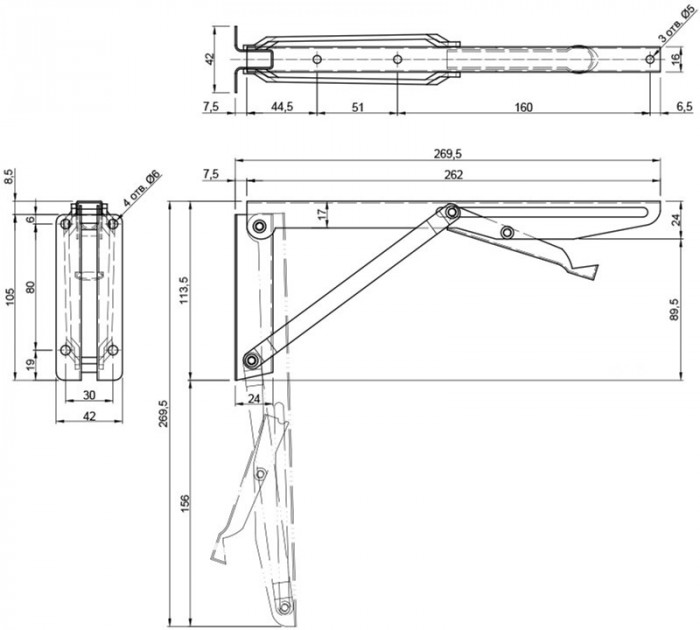

• Hinge Mechanism:

  • Dual heavy-duty hinge set

  • 3D-defined rotation axis for animation

• Support Arm System:

  • Mechanical locking arms

  • Latch-down system included

• Worktop Surface:

  • 25–40 mm thickness

  • Compatible with wood or metal material presets

CAD Details

• File Formats Provided:

  • STEP (.step)

  • IGES (.iges)

  • SolidWorks Part (.SLDPRT)

  • SolidWorks Assembly (.SLDASM)

  • DWG / DXF for 2D profile extraction

• Model Structure:

  • Clean feature tree

  • Parametric dimensions

  • Configurable folded/unfolded states

  • Lightweight mesh optimized for rendering

• Compatibility:

  • SolidWorks

  • AutoCAD

  • Fusion 360

  • CATIA

  • Siemens NX

  • Inventor

  • Revit (via imported geometry)

Use Cases

• Workshop and garage layout planning

• Industrial design and fabrication drawings

• Product visualization and mechanical animation

• Space optimization projects

• Training, educational simulations, and engineering demonstrations

Customization Options

• Dimension changes (width, depth, thickness)

• Alternative hinge systems

• Custom material presets

• Mounting pattern modifications

• Full redesign based on project requirements

See more on Shop Section.
