2D Garbage Bin Drawing

2D Garbage Bin Drawing provides accurate CAD drawings of waste bins used in residential, commercial, industrial, and public spaces. These drawings are ideal for architects, urban planners, facility managers, environmental engineers, and product designers who require precise 2D representations for layout planning, waste management systems, and technical documentation.

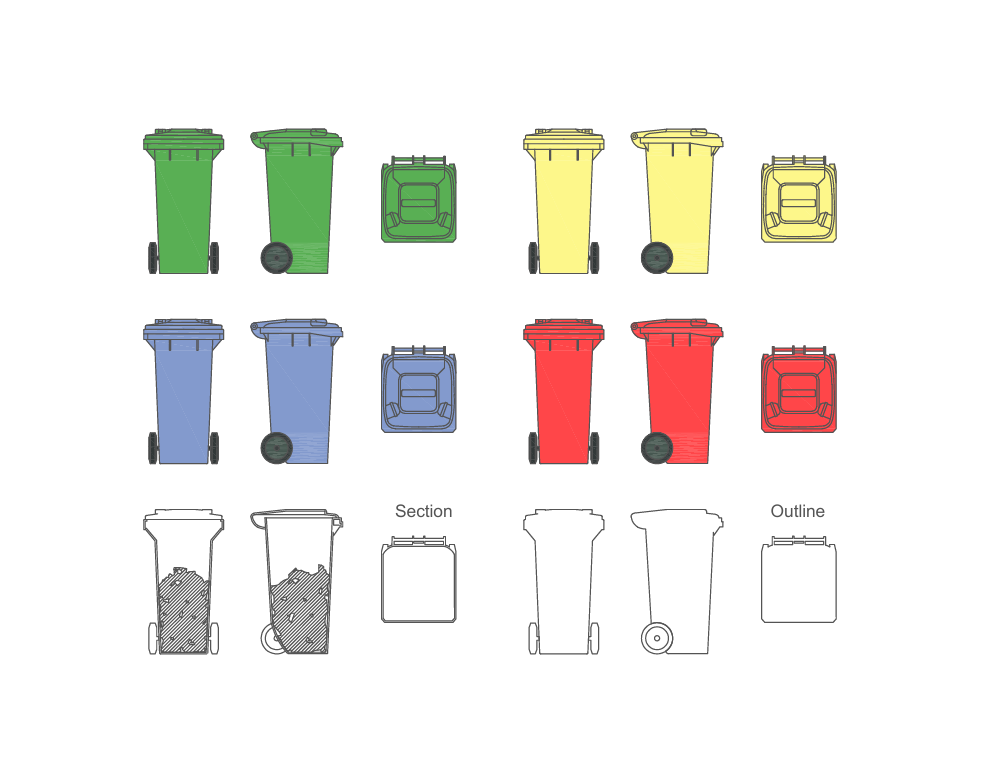

The 2D drawings typically include front view, side elevation, and top view with clear dimensional annotations. Key components such as the bin body, lid, handles, wheels (if applicable), and overall capacity proportions are represented to scale, following standard architectural and industrial drafting practices.

Key Features

• High-accuracy 2D CAD drawing of garbage bins

• Real-scale dimensions suitable for planning and layout

• Includes plan, elevation, and side views

• Clean linework with editable layer structure

• Compatible with AutoCAD and similar CAD software

Applications

• Architectural and site layout planning

• Municipal and urban waste management projects

• Facility and industrial layout design

• Product design and manufacturing reference

• Technical documentation and presentations

File Formats

• DWG

• DXF

• PDF (for reference and printing)

Using  Bin Drawing files improves spatial accuracy, supports efficient waste management planning, and ensures clear technical communication across environmental and infrastructure projects.

Search more free items to download on Shop Section.
